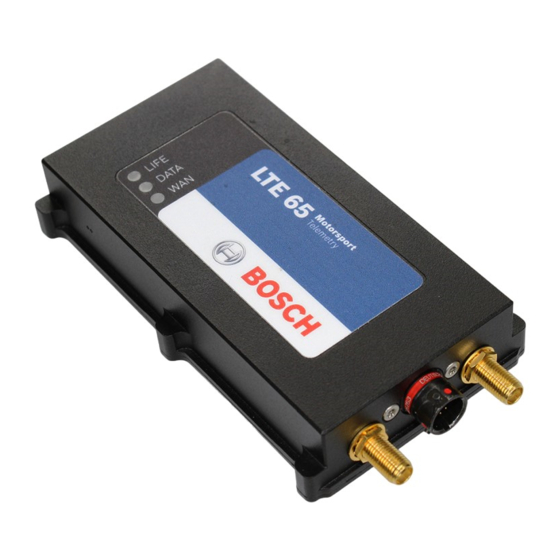

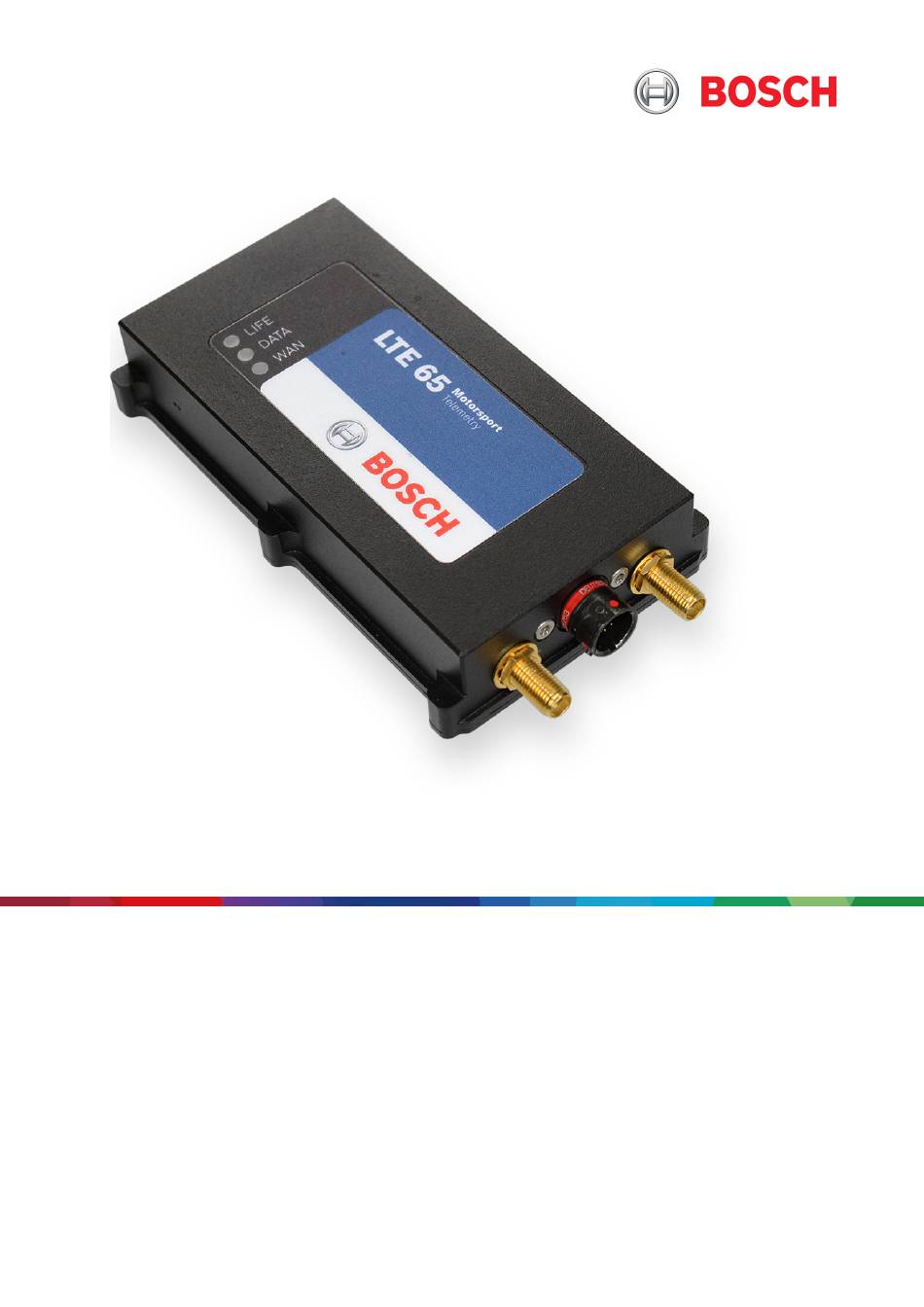

- Page 1 Telemetry System LTE65-EU/JP/US Manual Version 1.6 05/10/2022...
-
Page 2: Table Of Contents
6 Offer Drawing .................................. 7 Disposal .................................... 8 Legal ....................................Legal Restrictions of Sale ....................................Legal Restrictions of Use ....................................EC/EU Declaration of Conformity .................................. UK Declaration of Confirmity................................... US Regulatory Information....................................Japan Technical Conformity Mark ................................. ii / 40 Telemetry_System_LTE65_Manual Bosch Motorsport... -
Page 3: Introduction
– RaceCon – Device configuration software – Bosch Motorsport Catalog Run the installation executable files to install all programs on your computer. Software up- dates for all tools are made available on the Bosch Motorsport website. Bosch Motorsport Telemetry_System_LTE65_Manual 3 / 40... -
Page 4: Part List
1.3 Part List LTE65-EU Part Number Description F02U.V02.932-01 Modem LTE65-EU + Racer Subscription, 500 MB/20 h (1 year) F02U.V02.933-01 Modem LTE65-EU + Pro Subscription, 2 GB/60 h (1 year) F02U.V02.934-01 Modem LTE65-EU + Pro-High Subscription, 10 GB/100 h (1 year) F02U.V02.936-01... - Page 5 2 Racer Subscriptions, 500 MB/20 h (1 year) 2 Open Wheel Car Antennas Pit Antenna Pit Harness F02U.V0U.427-01 LTE65-US Basic Kit Pro - Open Wheel; 2 Modems LTE65-US 2 Pro Subscriptions, 2 GB/60 h (1 year) Bosch Motorsport Telemetry_System_LTE65_Manual 5 / 40...
-
Page 6: Annual Data Plans
Bosch Motorsport has validated 4G-LTE telemetry access at over 60 racetracks in the USA and Europe. However, Bosch does not operate the LTE networks and cannot guarantee performance. -
Page 7: Frequencies And Output Power
Introduction | 1 1.6 Frequencies and Output Power Telemetry Module LTE65-EU Band# Frequency [MHz] B1 [2100] B1 [2100] B8 [900] B3 [1800] B7 [2600] B8 [900] B20 [800] Output Power Class 3 (0.25 W, 24 dBm) Class 3 (0.2 W, 23 dBm) -
Page 8: Hardware Details
Antennas used with the LTE65 should be purchased from Bosch Motorsport or an Author- ized dealer. FCC and CE certifications are conditional on the type of antenna used. Bosch Motorsport has performed testing to select the antennas with the best efficiency for motorsport applications. -
Page 9: Installation
3.2 Car Specific Antennas 3.2.1 GT Car The GT car antenna available from Bosch Motorsport is a dual 4G MIMO antenna with 3G fallback, both MIMO antennas are in the same housing. Recommended torque spec for the antenna connection: 4 in-lbs (0.45 Nm) Suggested installation locations shown in in the figure below. - Page 10 A picture of the GT style antenna is below for reference. 3.2.2 Prototype/Open Wheel The Prototype / Open Wheel antenna available from Bosch Motorsport is sold as a single antenna, with two antennas required for a single device. Recommended torque spec for the antenna connection: 4 in-lbs (0.45 Nm) Suggested installation locations shown in the figure below.
-
Page 11: Pit Stand Installation
Installation | 3 3.3 Pit Stand Installation The pit stand antenna available from Bosch Motorsport is a dual 4G MIMO antenna with 3G fallback, both MIMO antennas are in the same housing. This antenna should be in- stalled in an open location not obstructed by carbon fiber or metal objects. -
Page 12: Reset Feature
To utilize the reset button on the pit stand harness (immediate reset): – Remove power from the power connector (DTM Connector, VBATT) – Press the reset button – Device will reset – Release the reset button and reapply power 12 / 40 Telemetry_System_LTE65_Manual Bosch Motorsport... -
Page 13: Tools
SIM / Cell network error Red blinking Connec ng to cell network WAN LED Green blinking Connected to cell network, signal good Blue blinking Connected to cell network, signal ok Violet blinking Connected to cell network, signal bad Bosch Motorsport Telemetry_System_LTE65_Manual 13 / 40... -
Page 14: Racecon
RaceCon is for configuring and calibrating with Bosch Motorsport devices. For general RaceCon setup and usage, please refer to the DDU 9 manual on the Bosch Motorsport website. The information below deals specifically with telemetry setup in an existing Race- Con project. - Page 15 – Channel setting examples: Column1 MS 6/MS 7/C 60/C 70 MS 5 Distance Channel disttrip distlap Lap Number Channel Laptrigger_lapctr_dls lapctr Lap Fuel Channel (optional) Fuel_fuellapold_dls fuellap Lap Time Channel Laptrigger_laptimeold_dls laptimeold Lap Distance Channel (optional) Laptrigger_lapdist_dls Bosch Motorsport Telemetry_System_LTE65_Manual 15 / 40...
- Page 16 Channels can be added by single-clicking on the data logs and drag and drop the channel into the LTE65 window. ‘Fast’ and ‘Slow’ telemetry mode are configurable for each data channel. Shown in the window below opened by double clicking the channel in the Telemetry Configuration Measurement window. 16 / 40 Telemetry_System_LTE65_Manual Bosch Motorsport...
-
Page 17: Wdserver
‘Statistics’ tab of the Main Area. 4.3 WDServer WDServer is used to capture data streaming from transmitters and convert to WinDarab file format; WDServer also creates a log of the data received over telemetry. Bosch Motorsport Telemetry_System_LTE65_Manual 17 / 40... - Page 18 INI files from this folder path. As mentioned previously, RaceCon will generate a new INI file each time a project is synchronized or saved; each new INI file instance has an incremented file name. Retaining all of these INI file iterations will insure that 18 / 40 Telemetry_System_LTE65_Manual Bosch Motorsport...
- Page 19 In the Car settings tab, enter a name for the new vehicle. This name will be used as part of the file name for WDServer’s log of received telemetry data and will also show up in Darab when searching for the telemetry stream in the Network folder. Bosch Motorsport Telemetry_System_LTE65_Manual 19 / 40...
- Page 20 Additional troubleshooting information is given for Byte/Sec received and Block/Sec decoded. Byte/Sec is data received by WDServer from the LTE65 while Block/Sec is data decoded by WDServer using the INI file. 20 / 40 Telemetry_System_LTE65_Manual Bosch Motorsport...
-
Page 21: Directlink
Link Quick Start Guide on the RaceConnect product page, chapter “Downloads” for de- tailed information on configuration and operation of DirectLink. To use DirectLink, purchase an access token from Bosch Motorsport or a Bosch Motorsport dealer. Each token can support multiple telemetry streams but can only be used on a single PC. - Page 22 Note: The channel named “Quality” will be generated by WDServer and available in the WinDarab data. This channel is an indicator of the quality of data received by WDServer and can be useful in diagnosing issues with your Bosch Motorsport support. 22 / 40...
-
Page 23: Troubleshooting/Faq
WDServer matches the directory the INI file from the latest configuration sent to the logger device. I have another issue, or my problem is not solved. – Note the telemetry_state mode in RaceCon or WinDarab and contact your Bosch Motorsport contact. Bosch Motorsport Telemetry_System_LTE65_Manual 23 / 40... -
Page 24: Offer Drawing
6 | Offer Drawing 6 Offer Drawing 24 / 40 Telemetry_System_LTE65_Manual Bosch Motorsport... -
Page 25: Disposal
Disposal | 7 7 Disposal Hardware, accessories and packaging should be sorted for recycling in an environment- friendly manner. Do not dispose of this electronic device in your household waste. Bosch Motorsport Telemetry_System_LTE65_Manual 25 / 40... -
Page 26: Legal
Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited. 8.2 Legal Restrictions of Use Operation of LTE65-EU is permitted in EU countries only. Operation of LTE65-JP is permitted in Japan only. Operation of LTE65-US is permitted in the USA and Canada only. -
Page 34: Declaration Of Confirmity
8 | Legal 8.4 UK Declaration of Confirmity see following pages 34 / 40 Telemetry_System_LTE65_Manual Bosch Motorsport... -
Page 38: Regulatory Information
(2) this device must accept any interference received, including interference that may cause undesired operation. 8.6 Japan Technical Conformity Mark The LTE65-JP contains an LTE-Modem certified for operation in Japan. R: 007-AH0130 T: ADF 19-0023 007 38 / 40 Telemetry_System_LTE65_Manual Bosch Motorsport... - Page 39 Bosch Motorsport Telemetry_System_LTE65_Manual 39 / 40...
- Page 40 Bosch Engineering GmbH Motorsport Robert-Bosch-Allee 1 74232 Abstatt www.bosch-motorsport.com...
