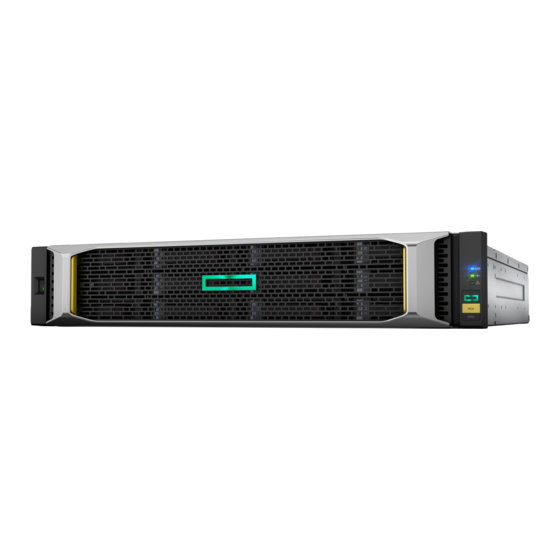

MSA 1050 Quick Start Instructions

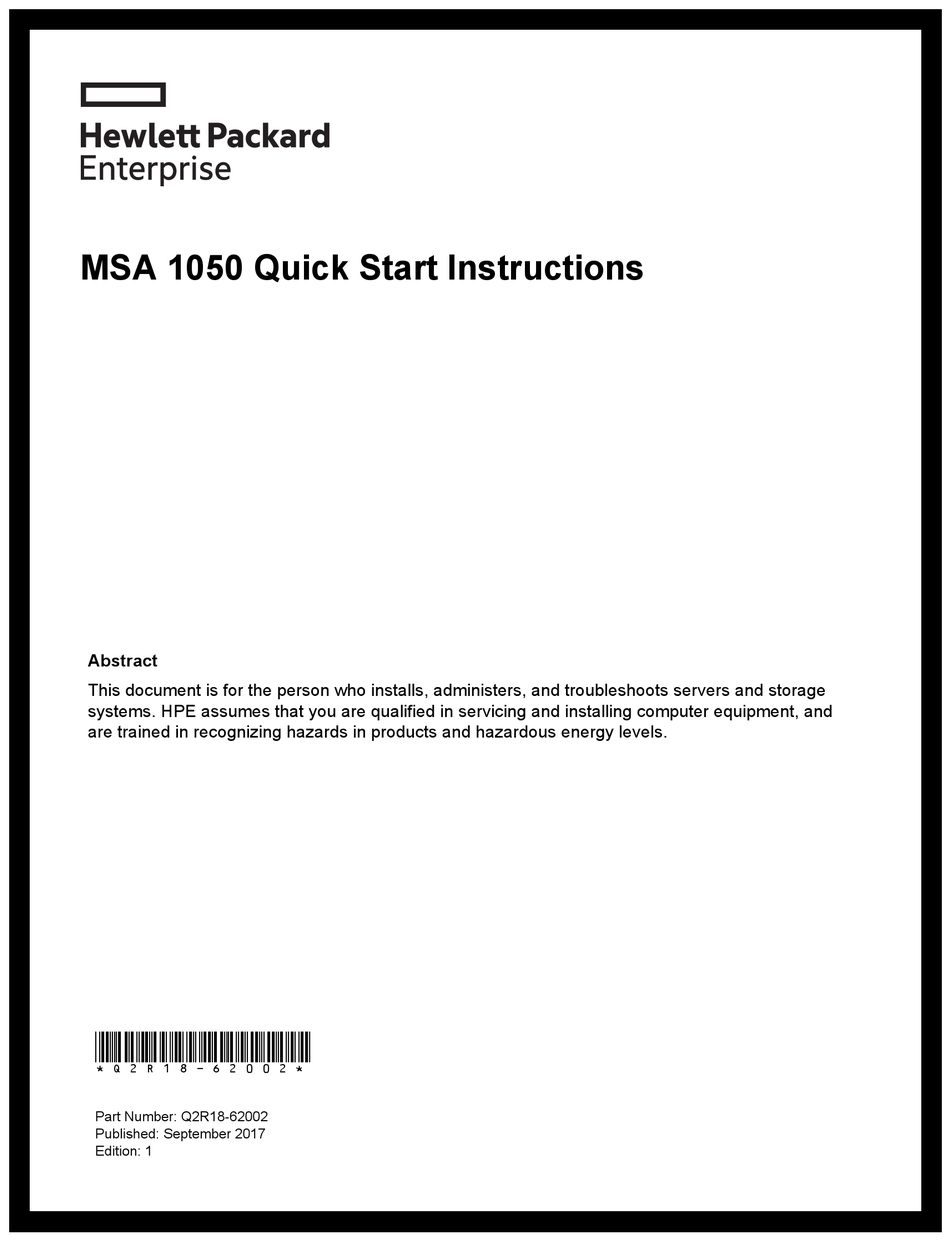

Abstract
This document is for the person who installs, administers, and troubleshoots servers and storage
systems. HPE assumes that you are qualified in servicing and installing computer equipment, and
are trained in recognizing hazards in products and hazardous energy levels.
*Q2R18-62002*
Part Number: Q2R18-62002
Published: September 2017
Edition: 1

Advertisement

loading

Related Manuals for HP MSA 1050

Summary of Contents for HP MSA 1050

  • Page 1 MSA 1050 Quick Start Instructions Abstract This document is for the person who installs, administers, and troubleshoots servers and storage systems. HPE assumes that you are qualified in servicing and installing computer equipment, and are trained in recognizing hazards in products and hazardous energy levels.
  • Page 2 © Copyright 2017, 2017 Hewlett Packard Enterprise Development LP Notices The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services.
  • Page 3 Dual Power Supply and Fan modules Dual Array Controller modules Prepare for the installation Prerequisites The following items will be shipped with the MSA 1050: • HPE MSA 1050 LFF or HPE MSA 1050 SFF chassis. • Rack mounting kit •...

  • Page 4: Verify The Operating Environment

    Review the HPE MSA 1050 User Guide and ensure that all environmental requirements are met, including site wiring and electrical power inputs, ventilation and cooling, and weight considerations. Install the MSA chassis Use the following steps to install your MSA chassis. For more information, see the HPE MSA 1050 User Guide. WARNING: At least two people are needed to lift a fully populated MSA storage enclosure or expansion drive enclosure into the rack.
  • Page 5 HPE, see the HPE MSA 1050 QuickSpecs, available at http://www.hpe.com/ support/MSA1050QuickSpecs . • The maximum number of enclosures supported with an MSA 1050 solution is four (one MSA 1050 and up to three expansion drive enclosures). Example MSA 1050 drive enclosure connections MSA 1050 firmware supports both fault-tolerant and straight-through SAS cabling to cascaded drive enclosures.
  • Page 6 5. Connect each power supply module in the MSA 1050 array enclosure to the PDUs. 6. Observe the LEDs on the front and the rear of the MSA 1050 and any expansion drive enclosures, and confirm that no LEDs are amber.

  • Page 7: Documentation Feedback

    MSA 2050 product page: http://www.hpe.com/support/msa2050 MSA 2040 manuals page: http://www.hpe.com/support/msa2040 MSA 2040 product page: http://www.hpe.com/support/msa2040 MSA 1050 manuals page http://www.hpe.com/support/msa1050 MSA 1050 product page http://www.hpe.com/support/msa1050 MSA 1040 manuals page: http://www.hpe.com/support/msa1040 MSA 1040 product page: http://www.hpe.com/support/msa1040 HPE Passport for MSA arrays http://h20564.www2.hpe.com/hpsc/doc/public/display?docLocale=en_US&docId=emr_na-...
