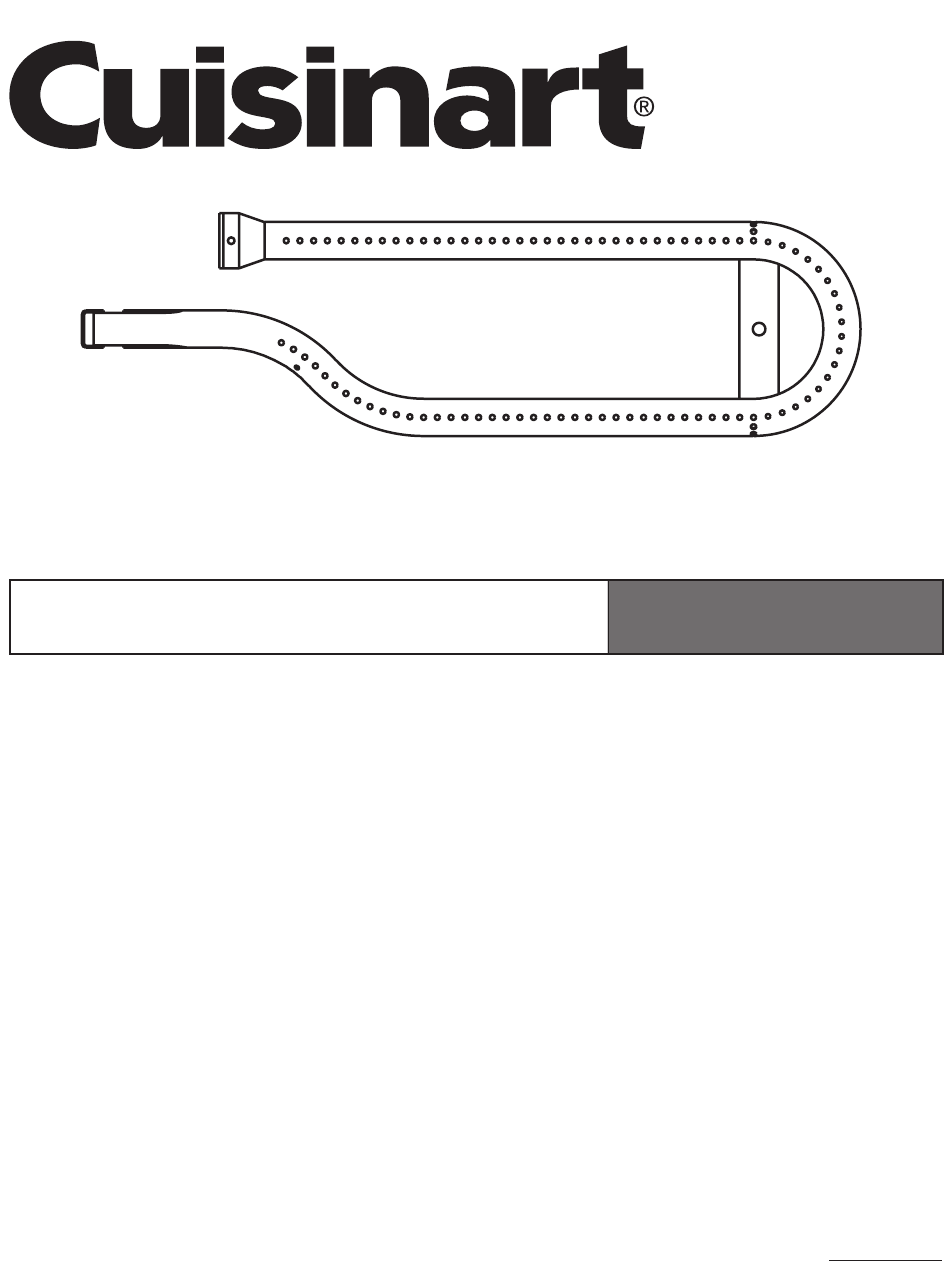

Stainless Steel Double Burner Kit
Includes: 1 × Main burner, 2 × Hitch pin, 1 × Connector,
1 × NO.10-24UNC x13 Screw, 1 × φ 5 Lock Washer, 1 × φ 5 Washer,1 × NO.10-24UNC Nut
85-3112-4 (G35801), 85-3113-2 (G35802), 85-3126-2 (G53507),
85-3127-0 (G53508), 85-3086-6 (G61803), 85-3087-4 (G61804)
85-3056-8 /85-3057-6 (G52501/G52502/G52505/G52506);
85-3058-4 /85-3059-2 (G52503/G52504/G52507/G52508/G52509/G52510);
85-3108-6 /85-3109-4 (G53501/G53502); 85-3110-8 /85-3111-6 (G53503/G53504);
85-3122-0 /85-3123-8 (G53505/G53506/G53509/G53510);
85-3123-8 (G53506/G53510); 85-3060-6 / 85-3061-4 (G61801/G61802)
READ AND SAVE MANUAL FOR FUTURE REFERENCE.
These Cuisinart
for use with Cuisinart
This product will replace the original stainless steel double burners sold with your
EXACT FIT FOR CUISINART
CERAMIC:
GOURMET:
Stainless Steel Double Burners are designed and intended
®
CERAMIC and GOURMET Barbecues ONLY.
®
Cuisinart
CERAMIC and GOURMET Barbecue.
®
CARE & SAFETY
INSTRUCTIONS
085-0025-0 (G525-3800-03)
MODELS:
®
Manual Revision #: 2021.07.12-WZ
Advertisement
Related Manuals for Cuisinart 85-3112-4
Summary of Contents for Cuisinart 85-3112-4
- Page 1 1 × NO.10-24UNC x13 Screw, 1 × φ 5 Lock Washer, 1 × φ 5 Washer,1 × NO.10-24UNC Nut EXACT FIT FOR CUISINART MODELS: ® CERAMIC: 85-3112-4 (G35801), 85-3113-2 (G35802), 85-3126-2 (G53507), 85-3127-0 (G53508), 85-3086-6 (G61803), 85-3087-4 (G61804) GOURMET: 85-3056-8 /85-3057-6 (G52501/G52502/G52505/G52506); 85-3058-4 /85-3059-2 (G52503/G52504/G52507/G52508/G52509/G52510);...
- Page 2 5 for additional models. G52501, G52502, G52503, G52504, G52505, G52506, G52507, G52508, G52509, G52510, G61801, G61802, G61803, G61804 ATTENTION Move grill to an open outdoor area prior to removing old Cuisinart Double Burners and installing your ® NEW replacement Double Burners.
- Page 3 ASSEMBLY INSTRUCTIONS Remove the hardware used to attach the double burner to the carryover bar as shown in Figure 3. TIP: WD40 may be used on difficult to remove hardware. Replace the old burner with the new double burner. Ensure that the venturi is seated correctly over the valve Figure 4.
- Page 4 COMPLETE LEAK TEST of the hose and regulator, gas supply connection and manifold connection, is successfully completed. Please visit www.cuisinartbbqs.com, or refer to your Cuisinart Safe Use and Care manual for additional information.
- Page 5 G35801, G35802, G53501, G53502, G53503, G53504, G53505, G53506, G53507, G53508, G53509, G53510 ATTENTION Move grill to an open outdoor area prior to removing old Cuisinart Double Burners and installing your ® NEW replacement Double Burners. Ensure grill is cool before proceeding. Turn grill control knob(s) off and gas supply off on the cylinder.
- Page 6 ASSEMBLY INSTRUCTIONS Remove the self-tapping screw from each electrode as shown in Figure 3. TIP: WD40 may be used on difficult to remove hardware. Replace the old burner with the new double burner. Ensure that the venturi is seated correctly over the valve Figure 4. Use the new hitch pin to secure the new double burner to the carryover bar as shown in Figure 5.
- Page 7 COMPLETE LEAK TEST of the hose and regulator, gas supply connection and manifold connection, is successfully completed. Please visit www.cuisinartbbqs.com, or refer to your Cuisinart Safe Use and Care manual for additional information.
-
Page 8: Care And Maintenance
Cuisinart® Double Burner Maintenance The Cuisinart® double burner is the heart of your barbecue. It is subject to a number of conditions that can cause damage and lead to potential safety issues. Because of the extreme temperature of your barbecue and exposure to harsh climates, salts, fats, and basting solutions, used during cooking, frequent maintenance and safety checks are necessary. - Page 9 ASSEMBLY INSTRUCTIONS Cuisinart® Double Burner Maintenance steps: Remove your Cuisinart cooking grates and heat distribution plates to reveal the burners. ® Remove hardware attaching double burner to carryover assembly. Remove your double burners. Brush the outer parts of the burner using a wire or brass bristled brush, paying particular attention to the burner port holes.
-
Page 10: Join The Conversation
For more information please visit us online at www.cuisinartbbqs.com Join the conversation facebook.com/cuisinartbbqs twitter.com/cuisinartbbqs Cuisinart is a registered ® trademark used under license © 2022 Trileaf Distributions Trifeuil...
