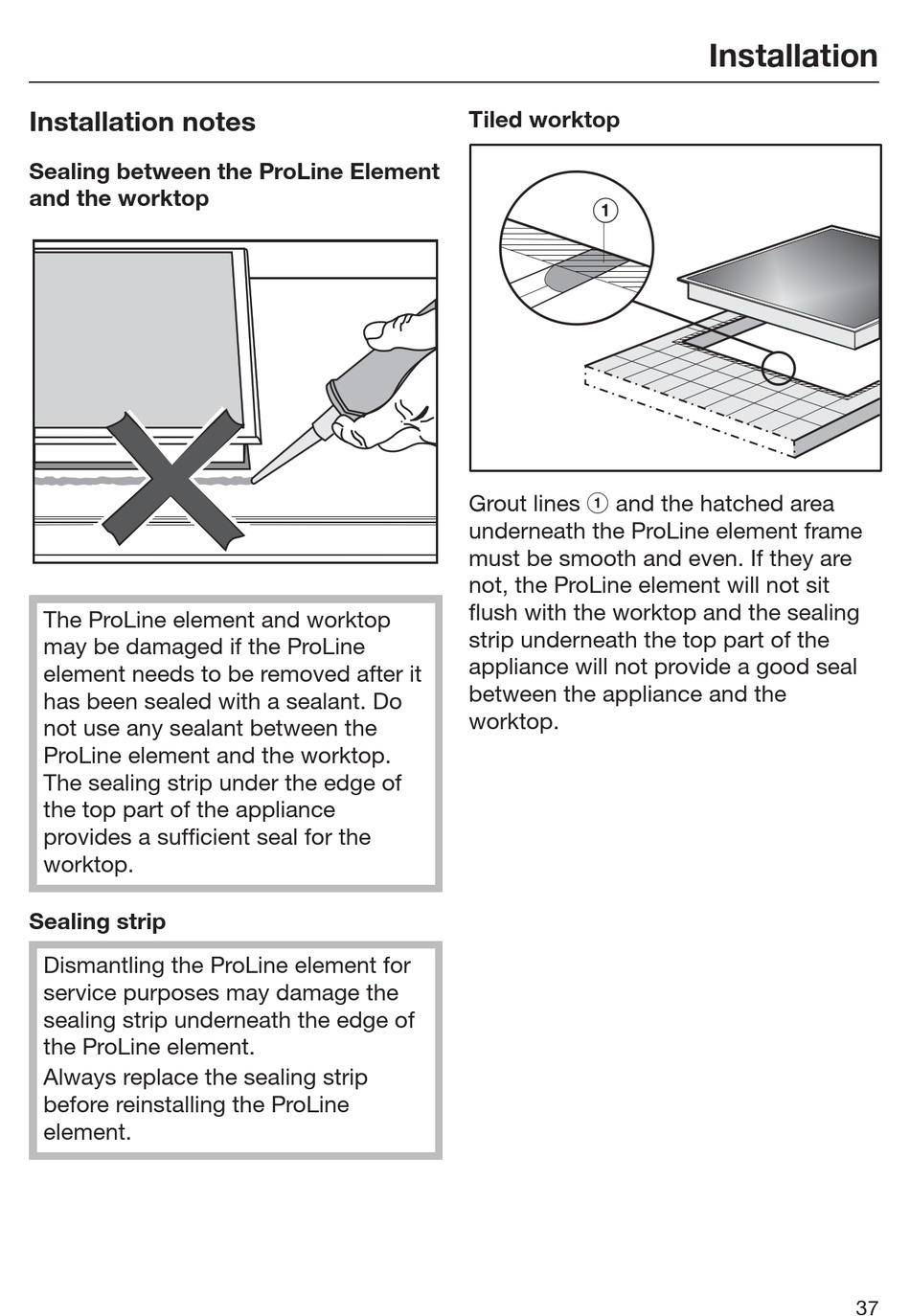

Installation notes

Sealing between the ProLine Element
and the worktop
The ProLine element and worktop
may be damaged if the ProLine
element needs to be removed after it
has been sealed with a sealant. Do
not use any sealant between the
ProLine element and the worktop.
The sealing strip under the edge of
the top part of the appliance
provides a sufficient seal for the
worktop.
Sealing strip
Dismantling the ProLine element for
service purposes may damage the
sealing strip underneath the edge of
the ProLine element.
Always replace the sealing strip
before reinstalling the ProLine
element.
Tiled worktop
Grout lines  and the hatched area
underneath the ProLine element frame
must be smooth and even. If they are
not, the ProLine element will not sit
flush with the worktop and the sealing
strip underneath the top part of the
appliance will not provide a good seal
between the appliance and the
worktop.
Installation
