The ActiveShuttle can
be moved freely by hand
without a handheld
controller:

Press both buttons
"Release brake" (S)
simultaneously.

The ActiveShuttle can
be moved freely by hand
when the buttons are
pressed.

Insert the ActiveShuttle
into the charging station.

Check the height of the
charging contact.
The contacts of the
ActiveShuttle and the
charging station must be
on the same height.

If the heights of the
charging contacts of
the ActiveShuttle and
the charging station do
not match, readjust the
height of the charging
station (see chapter 7.5
Fig. 9).
8.3.3

Move ActiveShuttle to the charging station using the handheld controller


The ActiveShuttle can now be controlled with the joystick (C) and the membrane
keypad (D).
+/– Speed ±
Lifting the loading area
Lowering the loading area

When the emergency stop device (A/Q) is actuated, the ActiveShuttle is stopped.

The warning signal lamps (F) light up permanently in red.

You can return to the "Automatic" operating mode by unplugging the handheld
controller and pressing the activation key (O) again.
8.3.4

Manually insert the ActiveShuttle into the charging station

S

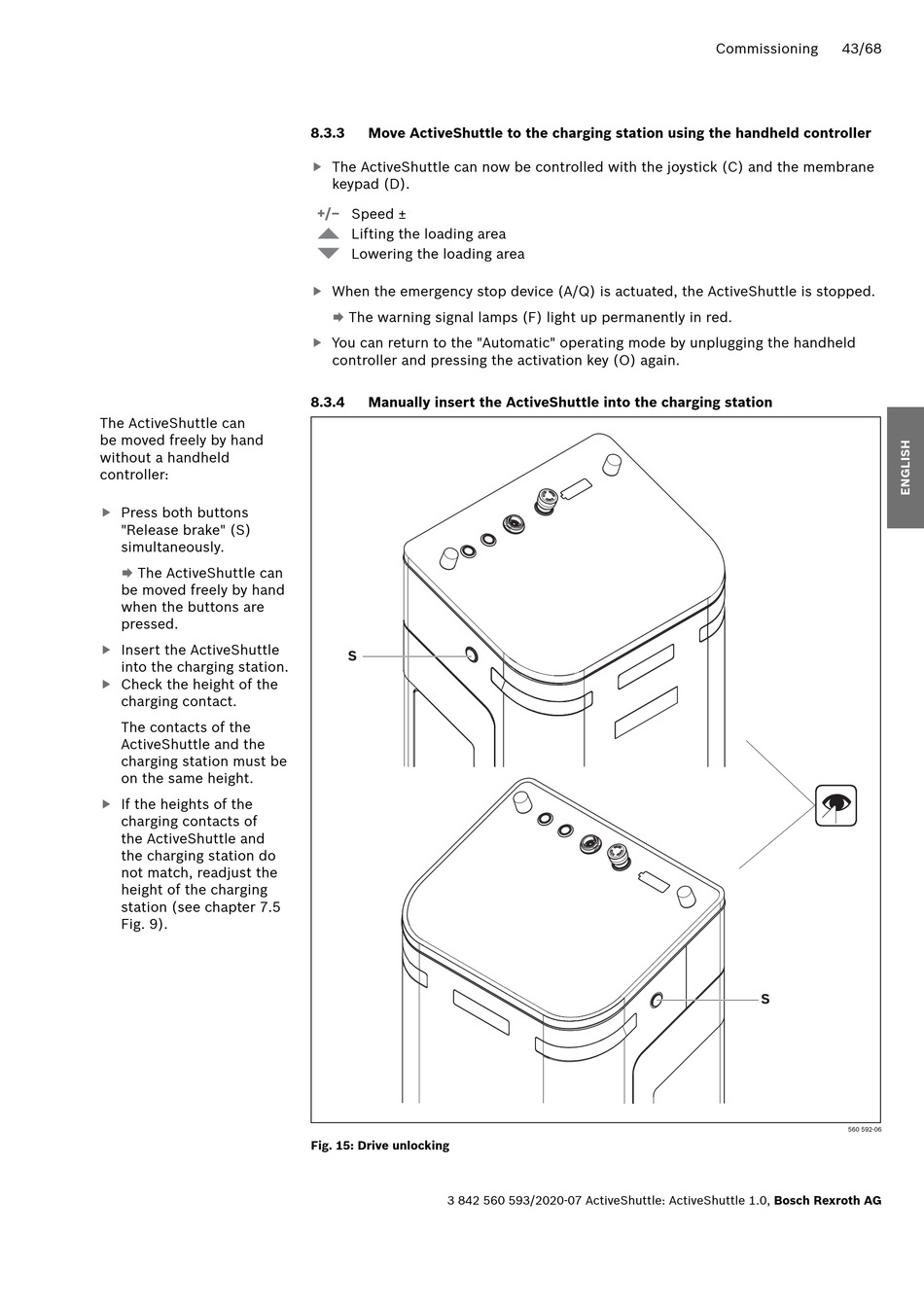

Fig. 15: Drive unlocking
