Please note:
The distances shown
in the drawing must be
observed in order for the
ActiveShuttle to function
correctly.
Required accessories:
Blue guide line, roll 25 m,
3 842 560 612
A:
Charging station 1.0
B:
Blue guide line
C:
Wall/obstacle
Mount the charging
station and attach the
guide lines.

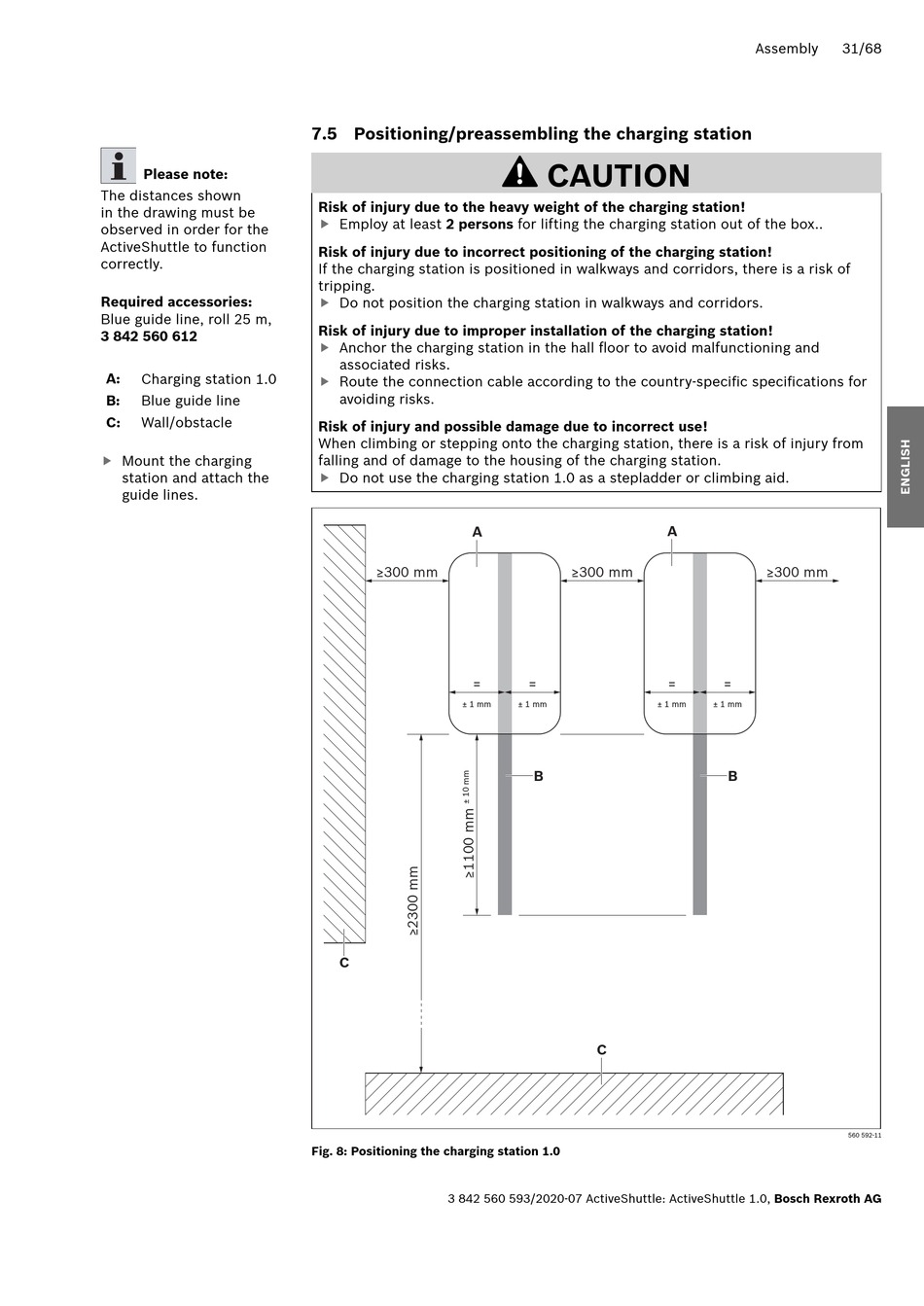

7.5 Positioning/preassembling the charging station
Risk of injury due to the heavy weight of the charging station!
Employ at least 2 persons for lifting the charging station out of the box..
Risk of injury due to incorrect positioning of the charging station!
If the charging station is positioned in walkways and corridors, there is a risk of
tripping.
Do not position the charging station in walkways and corridors.
Risk of injury due to improper installation of the charging station!
Anchor the charging station in the hall fl oor to avoid malfunctioning and
associated risks.
Route the connection cable according to the country-specifi c specifi cations for
avoiding risks.
Risk of injury and possible damage due to incorrect use!
When climbing or stepping onto the charging station, there is a risk of injury from
falling and of damage to the housing of the charging station.
Do not use the charging station 1.0 as a stepladder or climbing aid.
A
≥300 mm
=
± 1 mm
C
Fig. 8:
Positioning the charging station 1.0
3 842 560 593/2020-07 ActiveShuttle: ActiveShuttle 1.0, Bosch Rexroth AG
CAUTION
A
≥300 mm
=
=
± 1 mm
± 1 mm
B
C
Assembly
31/68
≥300 mm
=
± 1 mm
B
560 592-11
