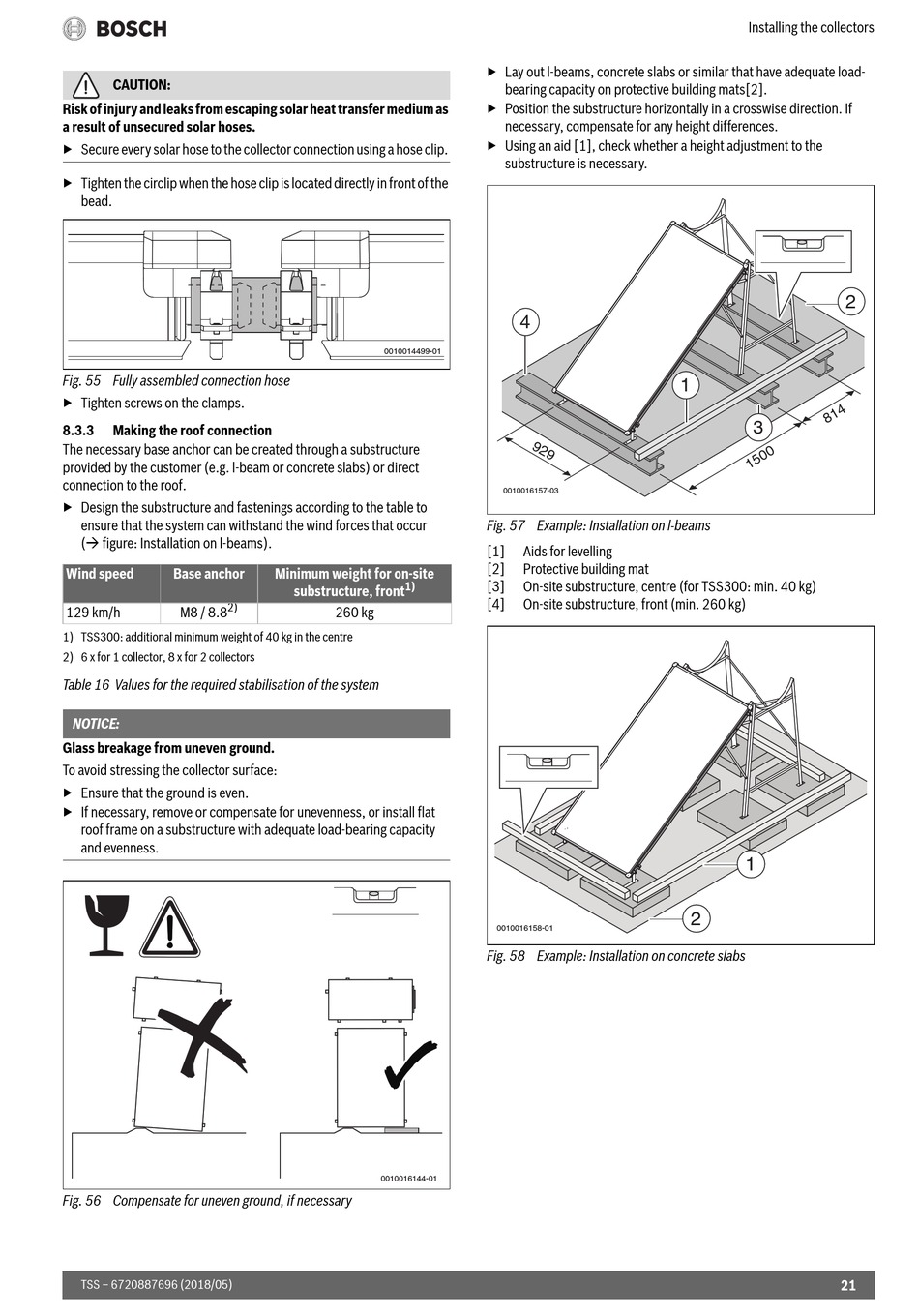

CAUTION:
Risk of injury and leaks from escaping solar heat transfer medium as
a result of unsecured solar hoses.
▶ Secure every solar hose to the collector connection using a hose clip.
▶ Tighten the circlip when the hose clip is located directly in front of the
bead.
Fig. 55 Fully assembled connection hose
▶ Tighten screws on the clamps.
8.3.3
Making the roof connection
The necessary base anchor can be created through a substructure
provided by the customer (e.g. l-beam or concrete slabs) or direct
connection to the roof.
▶ Design the substructure and fastenings according to the table to
ensure that the system can withstand the wind forces that occur
( figure: Installation on l-beams).
Wind speed
Base anchor
2)
129 km/h
M8 / 8.8
1) TSS300: additional minimum weight of 40 kg in the centre
2) 6 x for 1 collector, 8 x for 2 collectors
Table 16 Values for the required stabilisation of the system
NOTICE:
Glass breakage from uneven ground.
To avoid stressing the collector surface:
▶ Ensure that the ground is even.
▶ If necessary, remove or compensate for unevenness, or install flat
roof frame on a substructure with adequate load-bearing capacity
and evenness.
Fig. 56 Compensate for uneven ground, if necessary
TSS – 6720887696 (2018/05)
0010014499-01
Minimum weight for on-site
1)
substructure, front
260 kg
0010016144-01
▶ Lay out l-beams, concrete slabs or similar that have adequate load-
bearing capacity on protective building mats[2].
▶ Position the substructure horizontally in a crosswise direction. If
necessary, compensate for any height differences.
▶ Using an aid [1], check whether a height adjustment to the
substructure is necessary.
4
0010016157-03
Fig. 57 Example: Installation on l-beams
[1]
Aids for levelling
[2]
Protective building mat
[3]
On-site substructure, centre (for TSS300: min. 40 kg)
[4]
On-site substructure, front (min. 260 kg)
0010016158-01
Fig. 58 Example: Installation on concrete slabs
Installing the collectors
2
1
3
1
2
21
