Fitting the WSF flat roof frame
Transporting the storage tank
If you want to place the storage tank on level ground:
▶ Lay the storage tank on the styrofoam panel [1] of the packaging.
1

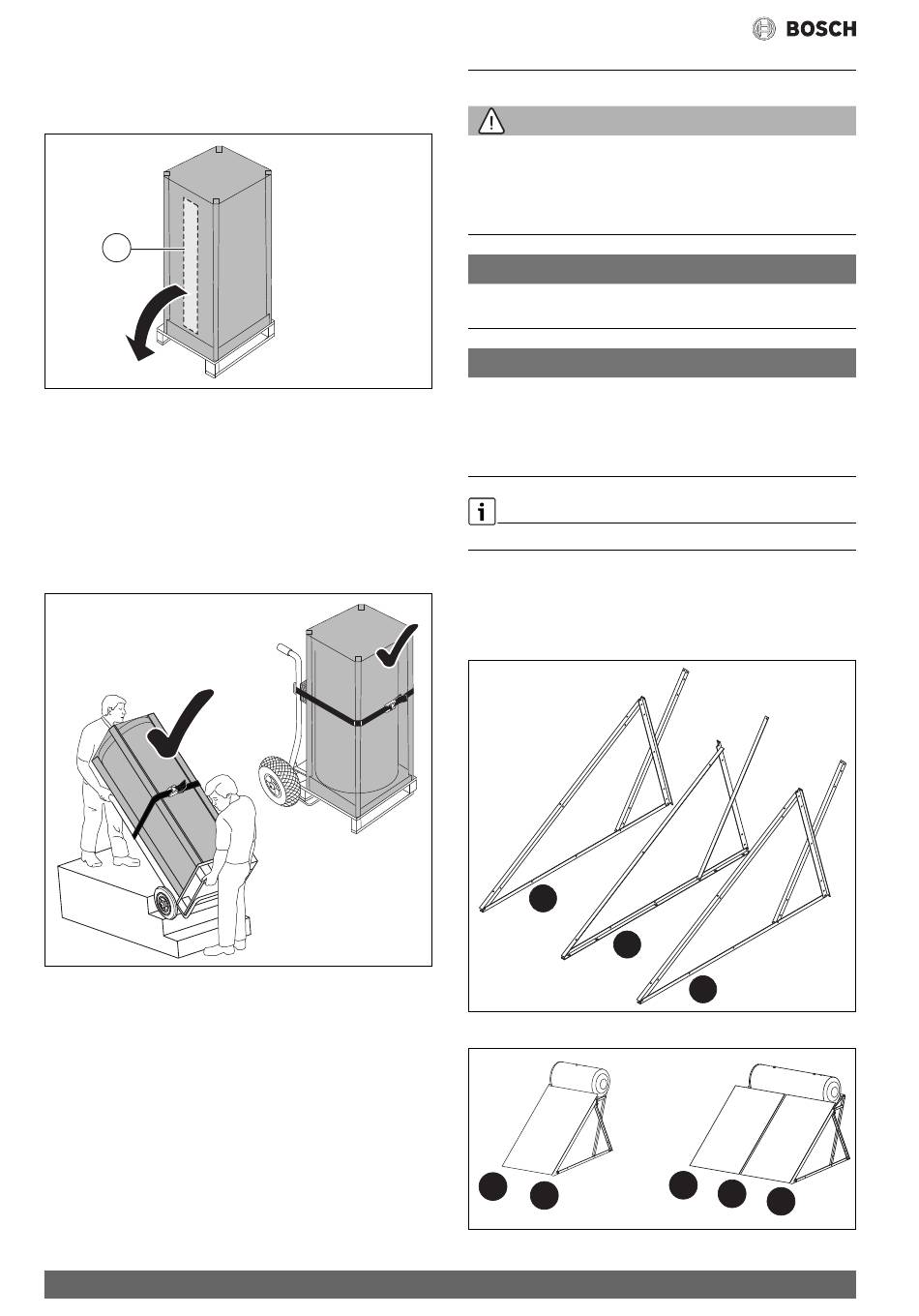

Fig. 17 Lay the storage tank on the styrofoam panel
To protect the storage tank during transport:
▶ Do not remove the DHW cylinder from its packaging until it has
reached the installation location.
▶ Position the hand truck at the side of the DHW cylinder with the
styrofoam panel.
▶ Secure the DHW cylinder to the means of transportation with a strap.
▶ Transport the DHW cylinder to the installation location.
▶ Remove the DHW cylinder from the packaging only at the installation
location.
Fig. 18 Transporting the storage tank with hand truck
12
6
Fitting the WSF flat roof frame
WARNING:
Risk to life from falling from roof!
▶ Whilst working on the roof, take all necessary precautions against a
possible fall.
▶ If there is not any independent anti-fall safety device, wear personal
protective equipment.
NOTICE:
Damage to the roof from incorrect form of stabilisation!
▶ Consider the roof statics when selecting the form of stabilisation.
NOTICE:
0010015281-01
Roof leaks from damaged roof membrane!
▶ Lay out standard protective building mats to protect the roof
membrane.
▶ Lay profiles and installation material only on these protective
building mats.
To facilitate installation, first tighten all screws by hand.
6.1
Installing angle profiles
For a system with a collector, the triangles A and B are required. The only
difference between the triangles is the mirror-image arrangement of the
profiles. For two collectors, a second triangle A is required.
0010015282-01
Fig. 19 Three triangles for two collectors
TSS150
TSS200
B
Fig. 20 Arrangement of the triangles on the systems
A
B
A
TSS300
A
A
0010014819-01
TSS – 6720887696 (2018/05)
0010014818-01
