OWNER'S &
INSTALLATION MANUAL
AIR
CONDITIONER

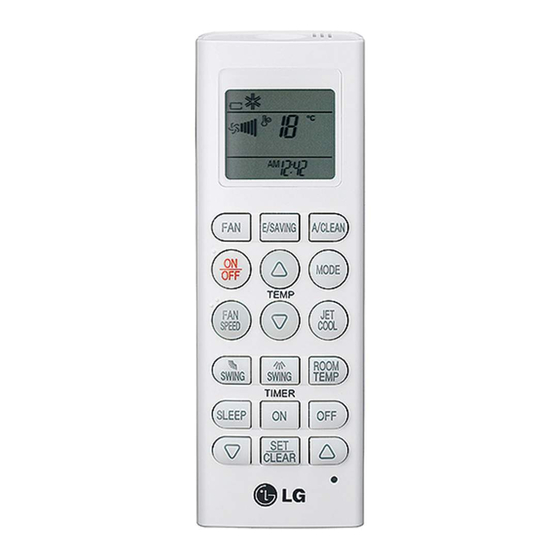

1 Wireless Remote Controller
Please read this manual carefully before operating your set and
retain it for future reference.
Wireless Remote Controller
PQWRCQ0FDB
PQWRHQ0FDB
MFL69265506
Rev.01_050819
Copyright © 2013 - 2019 LG Electronics Inc. All Rights Reserved.
www.lg.com
Owner's & Installation Manual 1

Advertisement

Table of Contents
loading

Related Manuals for LG PQWRCQ0FDB

Summary of Contents for LG PQWRCQ0FDB

  • Page 1 Please read this manual carefully before operating your set and CONDITIONER retain it for future reference. Wireless Remote Controller PQWRCQ0FDB PQWRHQ0FDB www.lg.com MFL69265506 Rev.01_050819 Copyright © 2013 - 2019 LG Electronics Inc. All Rights Reserved. 1 Wireless Remote Controller Owner’s & Installation Manual 1...

  • Page 2: Table Of Contents

    Wireless Remote Controller Owner’s & Installation Manual Safety Precautions TABLE OF CONTENTS Safety Precautions • The installation requires expert skills, and it should be installed by the service center or other shops specialized in the installation and recognized by our company. •...

  • Page 3: Part Description

    Part Description Part Description Part Description Wireless Remote Controller VANE ANGLE Button Used to set each vane angle. FUNCTION SETTING Button Used to set or clear Auto Clean, Smart Clean, Electric heater or Individual vane angle control. ON/OFF Button Used to turn on/off the unit. LCD Screen JET COOL Button Speed cooling operates super high fan speed.

  • Page 4: Operating Instruction

    Operating Instruction Installation Instructions Operating Instruction Installation Instructions Installer Setting - Setting Address of Central Control How to insert the Batteries 1. Remove the battery cover by pulling it according to the arrow With the MODE button pressed, press the RESET button. direction.

  • Page 5: Installer Setting -How To Enter Installer Setting Mode

    Installation Instructions Installation Instructions Installer Setting -How to enter installer setting mode Installer Setting - Installer Setting Code Table CAUTION Installer Setting Code Table Installer setting mode is to set the detail function of the remote controller. Function Function Code Setting Value Remote Controller LCD If the installer setting mode is not set correctly, it can cause problems to the product, user injury or...

  • Page 6: Owner's Instruction

    Owner's Instruction Owner's Instruction Owner's Instruction Auto Operation Mode Cooling Mode - Standard Operation Press the ON/OFF button. The unit will respond with beep sound. Press the ON/OFF button. The unit will respond with beep sound. Press MODE button to select Cooling Mode. Press MODE button to select Auto Operation Mode.

  • Page 7: Auto Changeover Mode

    Owner's Instruction Owner's Instruction Auto Changeover Mode Auto Changeover Mode - Setting the Mode Change Temperature This Function is only available on some products. This Function is to set the operating mode of the Auto Changeover Mode. Press the ON/OFF button. The unit will respond with beep sound. In Auto Changeover Mode, Press FUNCTION button to select Setting the Mode Change Temperature.

  • Page 8: Dehumidification Mode

    Owner's Instruction Owner's Instruction Dehumidification Mode Heating Mode This Function is only for H/P model. Press the ON/OFF button. The unit will respond with beep sound. Press the ON/OFF button. The unit will respond with beep sound. Press MODE button to select Dehumidification Mode. Press MODE button to select Heating Mode.

  • Page 9: Fan Mode

    Owner's Instruction Temperature Setting/Room Temperature checking Temperature Setting/Room Temperature checking Fan Mode Press the ON/OFF button. We can simply adjust the desired temperature The unit will respond with beep sound. • Press the buttons to adjust the desired temperature : Increase Temp. per one time pressing : Decrease Temp.

  • Page 10: Airflow Setting

    • When the unit is shut off, the up/down airflow direction louver will close the air outlet vent of the system. If you press the PLASMA button, Plasma Purification operates. • Plasma filter is a technology developed by LG to get rid of microscopic contaminants in the intake air generating a Left/Right Airflow Direction Control (Optional) plasma of high charge electrons.

  • Page 11: Smart Clean (Optional)

    Sub function Sub function Smart Clean (Optional) Electric heater (Optional) The Smart Clean function can be used by setting to manual or automatic. It can only be set during heating operation. Press the FUNCTION SETTING button 3 times. Auto Smart Clean operation Electric heater symbol will blink.

  • Page 12: Timer

    Timer Timer Timer Off Timer Setting 1. Press the OFF button. Setting the Current Time Timer OFF 1. Press the SET / CLEAN button for 3 seconds. 2. Press TIME SETTING buttons until the desired time is set. 2. Press TIME SETTING buttons until the desired time is set.
  • Page 13 LG Electronics Inc. EU Representative : LG Electronics European Shared Service Center B.V. Krijgsman 1, 1186 DM Amstelveen, The Netherlands Manufacturer: LG Electronics Inc. Changwon 2nd factory, 84, Wanam-ro, Seongsan-gu, Changwon-si, Gyeongsangnam-do, KOREA...
