INSTALLATION
Please note:

A non-return valve is not required. This machine complies with all valid European
standards on the protection of drinking water.

If no hot water supply is available, connect both hoses to cold water.

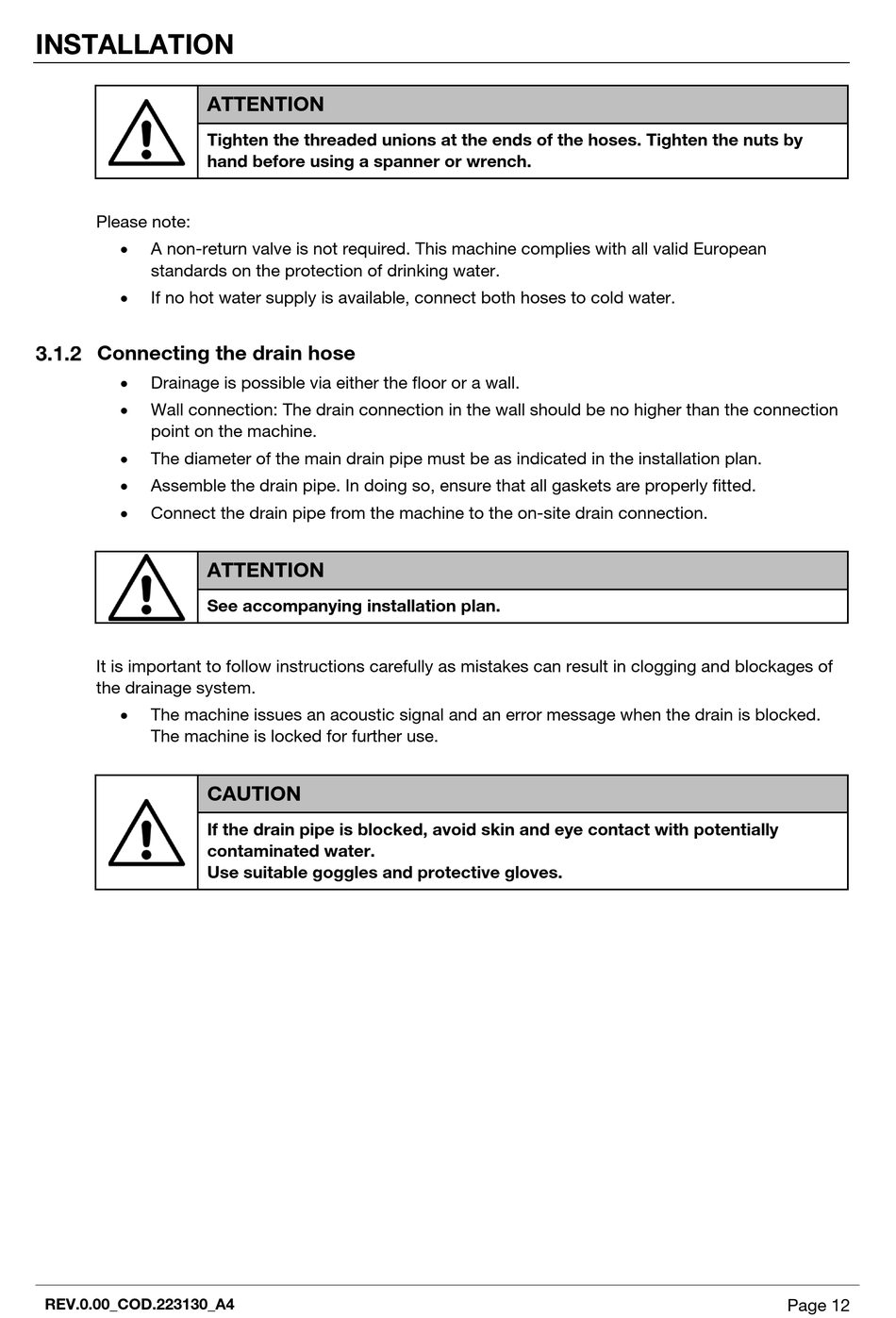

Connecting the drain hose


Drainage is possible via either the floor or a wall.

Wall connection: The drain connection in the wall should be no higher than the connection
point on the machine.

The diameter of the main drain pipe must be as indicated in the installation plan.

Assemble the drain pipe. In doing so, ensure that all gaskets are properly fitted.

Connect the drain pipe from the machine to the on-site drain connection.
It is important to follow instructions carefully as mistakes can result in clogging and blockages of
the drainage system.

The machine issues an acoustic signal and an error message when the drain is blocked.
The machine is locked for further use.
REV.0.00_COD.223130_A4
ATTENTION
Tighten the threaded unions at the ends of the hoses. Tighten the nuts by
hand before using a spanner or wrench.
ATTENTION
See accompanying installation plan.
CAUTION
If the drain pipe is blocked, avoid skin and eye contact with potentially
contaminated water.
Use suitable goggles and protective gloves.
Page 12
