Oil Cooler Kit
Greensmaster
Model No. 130-6536
Loose Parts
Use the chart below to verify that all parts have been shipped.
Description
Oil Cooler
Hose Clamp
90-degree fitting (barbed)
Hose
90-degree fitting
Shield plate
Bolt
Washer
Scew
Cable tie
Screen
Oil cooler
Installing the Oil Cooler Kit
1. Park the machine on a level surface.
2. Stop the engine, wait for all the moving parts to stop,
set the parking brake, and remove the key.
3. Drain all hydraulic oil from the reservoir by removing
the upper hose from the pump (Figure 1).
Note: Connect the hose after the oil is drained.
Note: The hydraulic system capacity is approximately
27 L (7 US gallons).
Important: Take care not to contaminate the oil
if you are going to reuse it. A very small amount
of dirt or debris can severely damage hydraulic
system.
© 2014—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
3150
Qty.
1
2
1
2
1
1
Install the kit.
4
4
4
1
1
1
Register at www.Toro.com.
1
g025798

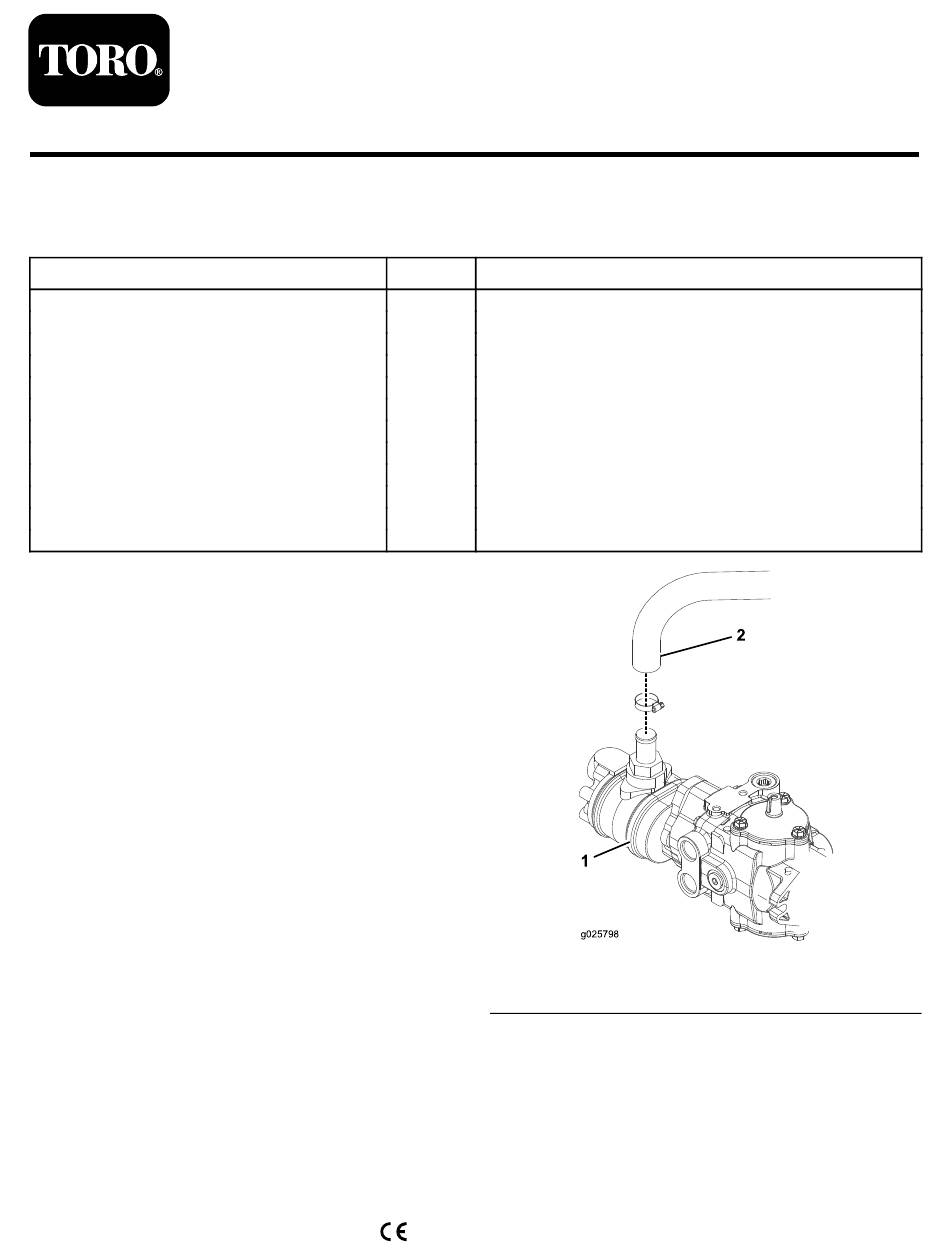

Figure 1
1. Pump
4. Loosen the hose clamp securing hose to straight fitting
at rear of the hydraulic filter head (Figure 2).
5. Loosen the straight fitting secured to rear of hydraulic
filter head Figure 2).
