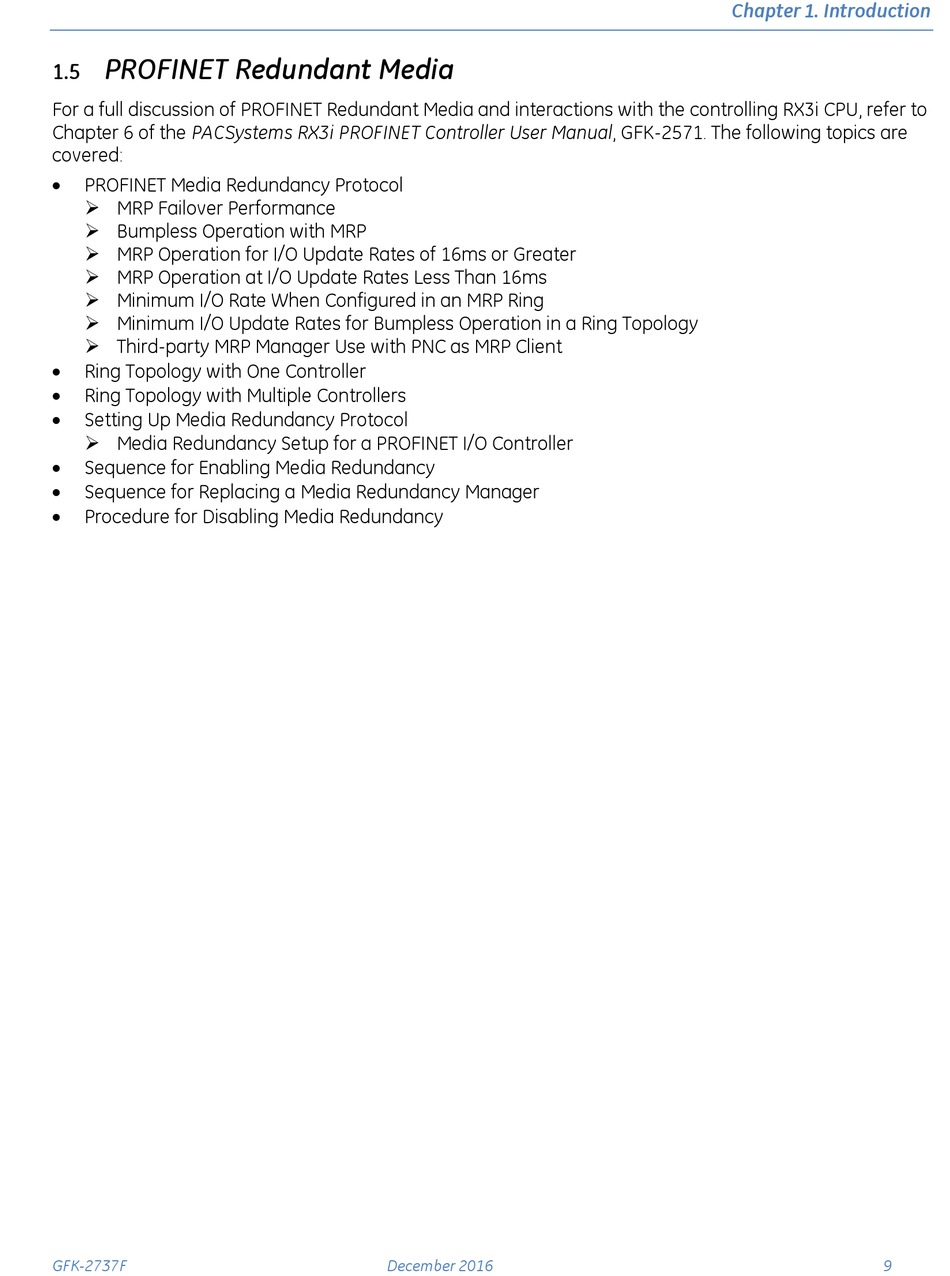

PROFINET Redundant Media

1.5
For a full discussion of PROFINET Redundant Media and interactions with the controlling RX3i CPU, refer to
Chapter 6 of the PACSystems RX3i PROFINET Controller User Manual, GFK-2571. The following topics are
covered:

PROFINET Media Redundancy Protocol
 MRP Failover Performance
 Bumpless Operation with MRP
 MRP Operation for I/O Update Rates of 16ms or Greater
 MRP Operation at I/O Update Rates Less Than 16ms
 Minimum I/O Rate When Configured in an MRP Ring
 Minimum I/O Update Rates for Bumpless Operation in a Ring Topology
 Third-party MRP Manager Use with PNC as MRP Client

Ring Topology with One Controller

Ring Topology with Multiple Controllers

Setting Up Media Redundancy Protocol
 Media Redundancy Setup for a PROFINET I/O Controller

Sequence for Enabling Media Redundancy

Sequence for Replacing a Media Redundancy Manager

Procedure for Disabling Media Redundancy
