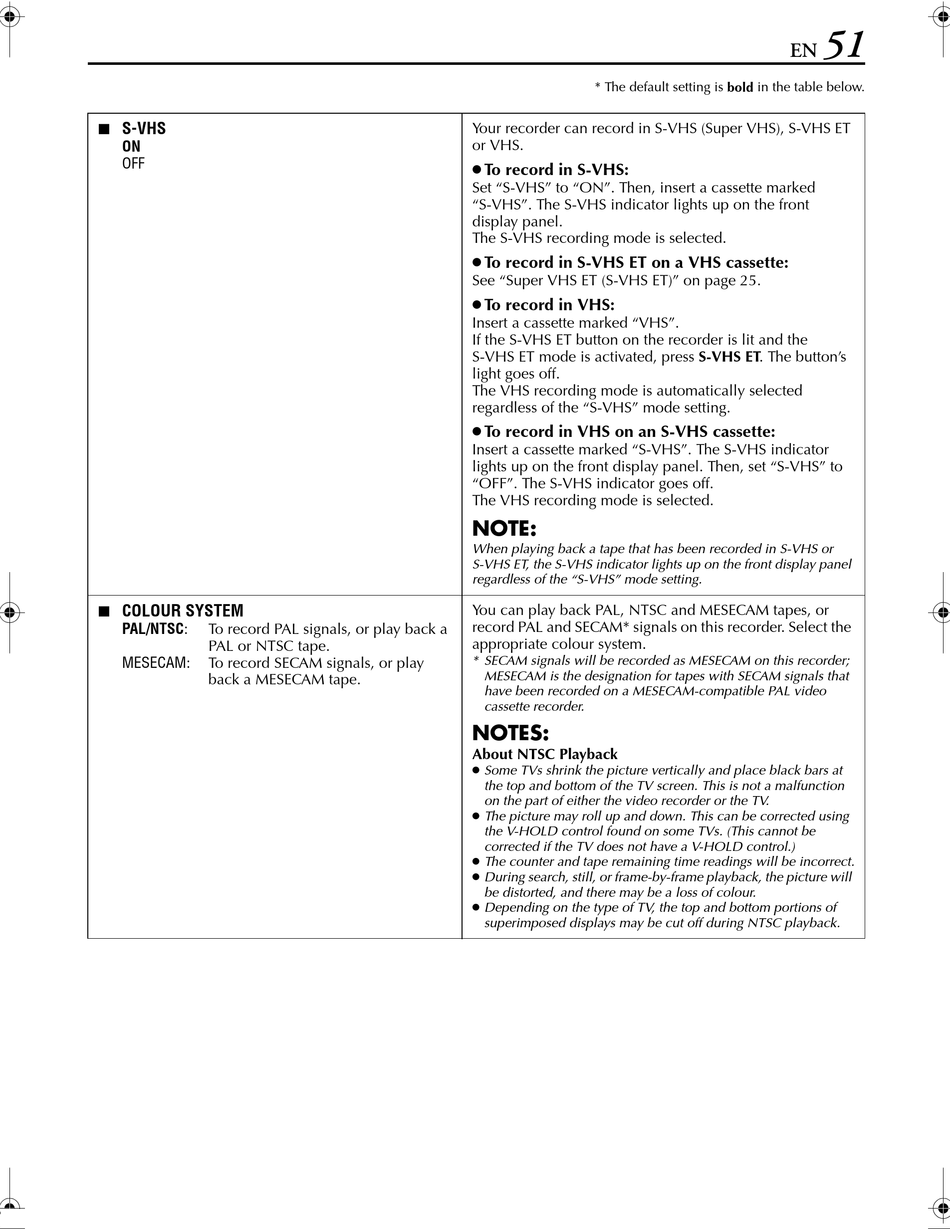

JVC HR-S7700EU Instructions Manual page 51

S-VHS
8
ON
OFF
COLOUR SYSTEM
8
PAL/NTSC: To record PAL signals, or play back a
PAL or NTSC tape.
To record SECAM signals, or play
MESECAM:
back a MESECAM tape.
* The default setting is bold in the table below.
Your recorder can record in S-VHS (Super VHS), S-VHS ET
or VHS.
To record in S-VHS:
Set "S-VHS" to "ON". Then, insert a cassette marked
"S-VHS". The S-VHS indicator lights up on the front
display panel.
The S-VHS recording mode is selected.
To record in S-VHS ET on a VHS cassette:
See "Super VHS ET (S-VHS ET)" on page 25.
To record in VHS:
Insert a cassette marked "VHS".
If the S-VHS ET button on the recorder is lit and the
S-VHS ET mode is activated, press S-VHS ET. The button's
light goes off.
The VHS recording mode is automatically selected
regardless of the "S-VHS" mode setting.
To record in VHS on an S-VHS cassette:
Insert a cassette marked "S-VHS". The S-VHS indicator
lights up on the front display panel. Then, set "S-VHS" to
"OFF". The S-VHS indicator goes off.
The VHS recording mode is selected.
NOTE:
When playing back a tape that has been recorded in S-VHS or
S-VHS ET, the S-VHS indicator lights up on the front display panel
regardless of the "S-VHS" mode setting.
You can play back PAL, NTSC and MESECAM tapes, or
record PAL and SECAM* signals on this recorder. Select the
appropriate colour system.
* SECAM signals will be recorded as MESECAM on this recorder;
MESECAM is the designation for tapes with SECAM signals that
have been recorded on a MESECAM-compatible PAL video
cassette recorder.
NOTES:
About NTSC Playback
Some TVs shrink the picture vertically and place black bars at
the top and bottom of the TV screen. This is not a malfunction
on the part of either the video recorder or the TV.
The picture may roll up and down. This can be corrected using
the V-HOLD control found on some TVs. (This cannot be
corrected if the TV does not have a V-HOLD control.)
The counter and tape remaining time readings will be incorrect.
During search, still, or frame-by-frame playback, the picture will
be distorted, and there may be a loss of colour.
Depending on the type of TV, the top and bottom portions of
superimposed displays may be cut off during NTSC playback.
