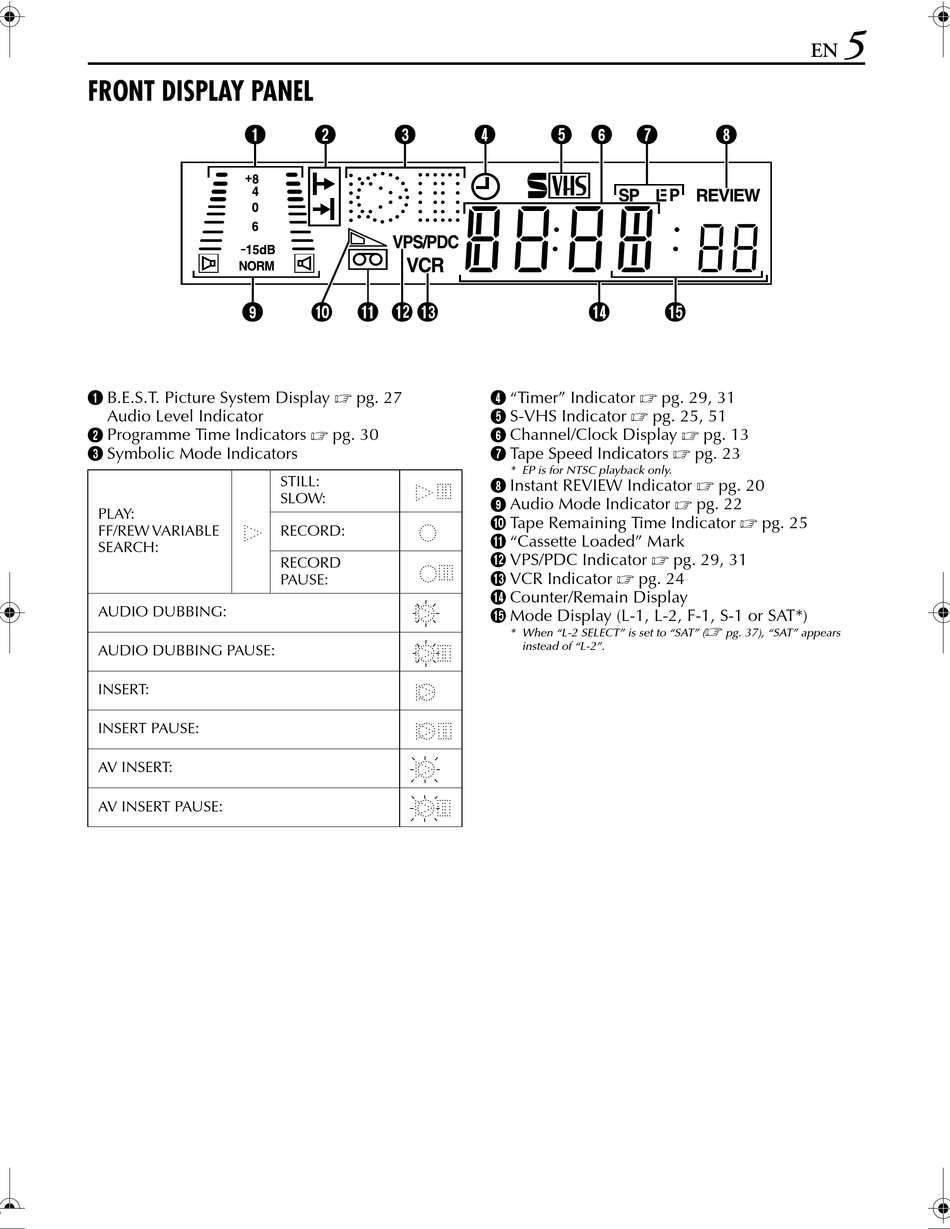

FRONT DISPLAY PANEL

A B.E.S.T. Picture System Display
Audio Level Indicator
B Programme Time Indicators
C Symbolic Mode Indicators
PLAY:
FF/REW VARIABLE
SEARCH:
AUDIO DUBBING:
AUDIO DUBBING PAUSE:
INSERT:
INSERT PAUSE:
AV INSERT:
AV INSERT PAUSE:
pg. 27
pg. 30
STILL:
SLOW:
RECORD:
RECORD
PAUSE:
D "Timer" Indicator
E S-VHS Indicator
F Channel/Clock Display
G Tape Speed Indicators
* EP is for NTSC playback only.
H Instant REVIEW Indicator
I Audio Mode Indicator
J Tape Remaining Time Indicator
K "Cassette Loaded" Mark
L VPS/PDC Indicator
M VCR Indicator pg. 24
N Counter/Remain Display
O Mode Display (L-1, L-2, F-1, S-1 or SAT*)
* When "L-2 SELECT" is set to "SAT" (
instead of "L-2".
pg. 29, 31
pg. 25, 51
pg. 13
pg. 23
pg. 20
pg. 22
pg. 25
pg. 29, 31
pg. 37), "SAT" appears
