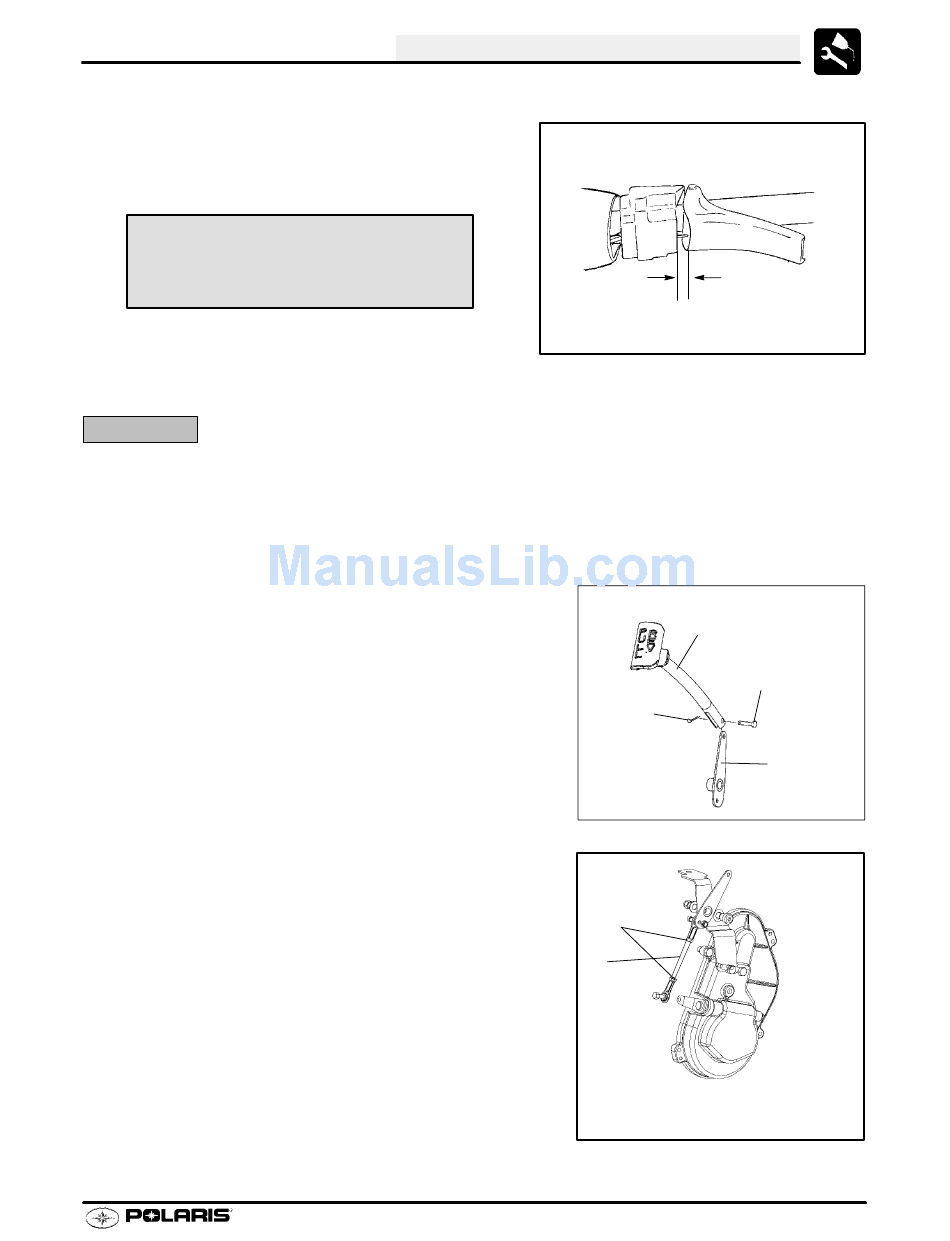

Throttle Lever Free Play

Throttle lever free play must always provide a specified
clearance between throttle lever and throttle block. This
clearance is controlled by the throttle cable sleeve(s) and
the idle speed screw(s).
Throttle Lever Freeplay -
.010 - .030² (.25 - .8 mm)
If the idle speed screw(s) is adjusted inward and the cable
sleeve(s) is not adjusted to take up the throttle lever to
throttle block clearance, the engine may misfire or kill upon
initial throttle opening.
CAUTION:
After any idle speed adjustments are made, the throttle lever to throttle block clearance and oil pump adjustment
must be checked and adjusted.
NOTE: When adjustments are made on models which have more than one carburetor, refer to Section 6, Car-
buretion, for proper carburetor synchronization adjustments.

Reverse Adjustment

Due to break-in or replacement of components, the re-
verse shift mechanism may require adjustment.
1. Loosen jam nuts on linkage rod (A).
2. Turn the threaded linkage rod (B) to lengthen or
shorten the throw until reverse engages fully.
3. Tighten jam nuts and re-check adjustment.
MAINTENANCE / TUNE UP
.010-.030² (.25-.8 mm)
Shift Lever
Cotter
Pin
A
B
Chaincase Cover Assembly
Clevis
Pin
Shift Lever
Actuator
2.19
