INSTALLATION GUIDE

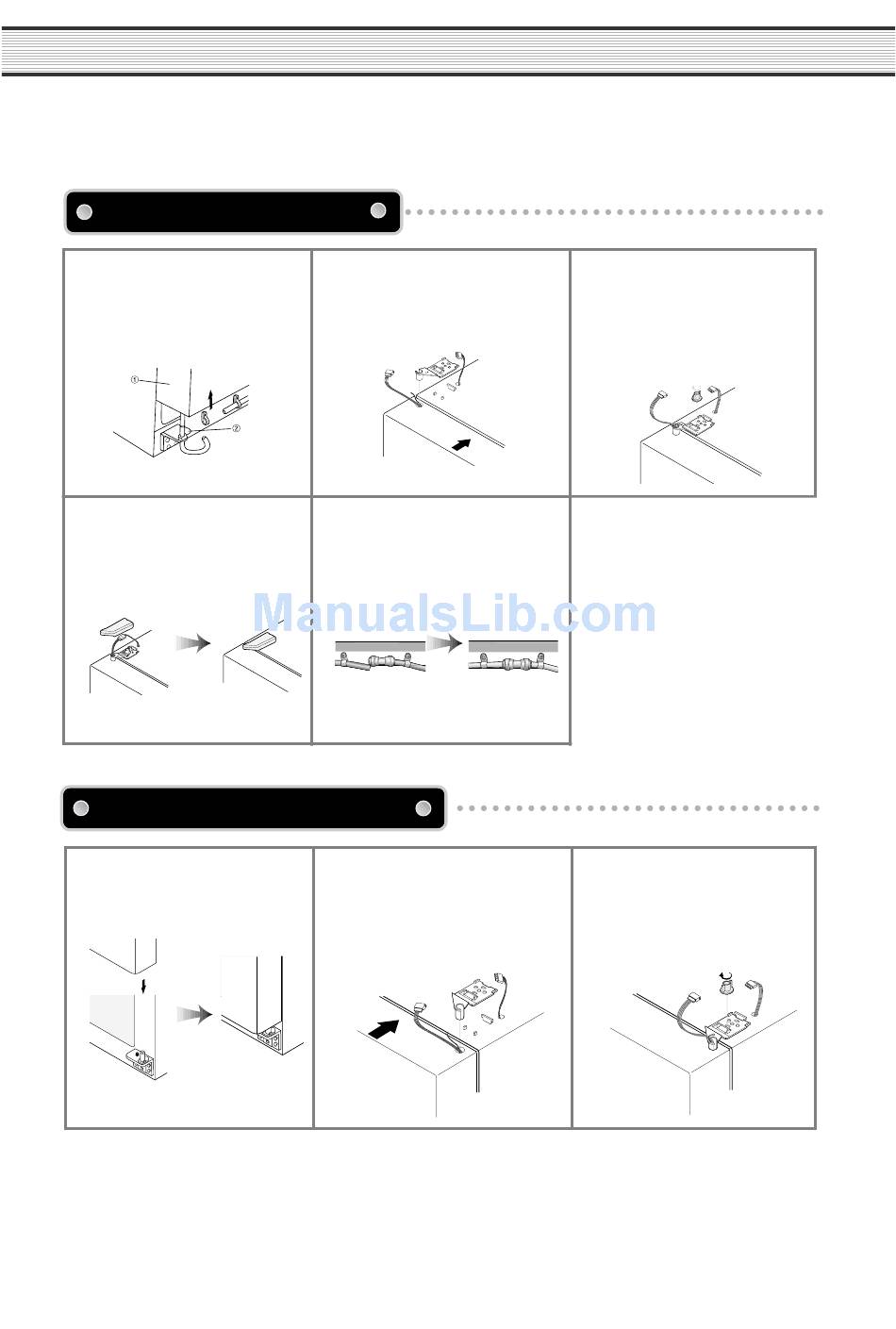

Replacing Freezer Door

Insert the water tube into the hole of
1
the bottom hinge pin first, then
Insert the bottom of freezer door into
the bottom hinge pin.
Turn the hinge fastener tightly to the
4
end.
Connect harness wirings and screw
ground wire.

Replacing Refrigerator Door

1 Insert the bottom hole of refrigerator
door straight to the bottom hinge pin
Insert the bottom hole of freezer
2
door straight to the bottom hinge pin.
5 Insert the water tube far into the
coupling.
2 Let the top of door close to the
cabinet and insert the top hinge pin
to the top hole of freezer door .
( Insert the back of hinge to the
groove of protrusion first, then front
to the top hole of door.)
55
3 Let the top of door close to the
cabinet and insert the top hinge
pin to the top hole of freezer door.
( Insert the back of hinge to the
groove of protrusion first, then
front to the top hole of door.)
Turn the hinge fastener tightly to the
3
end.
Connect harness wirings and screw
ground wire.
Click and screw the top hinge
cover.
