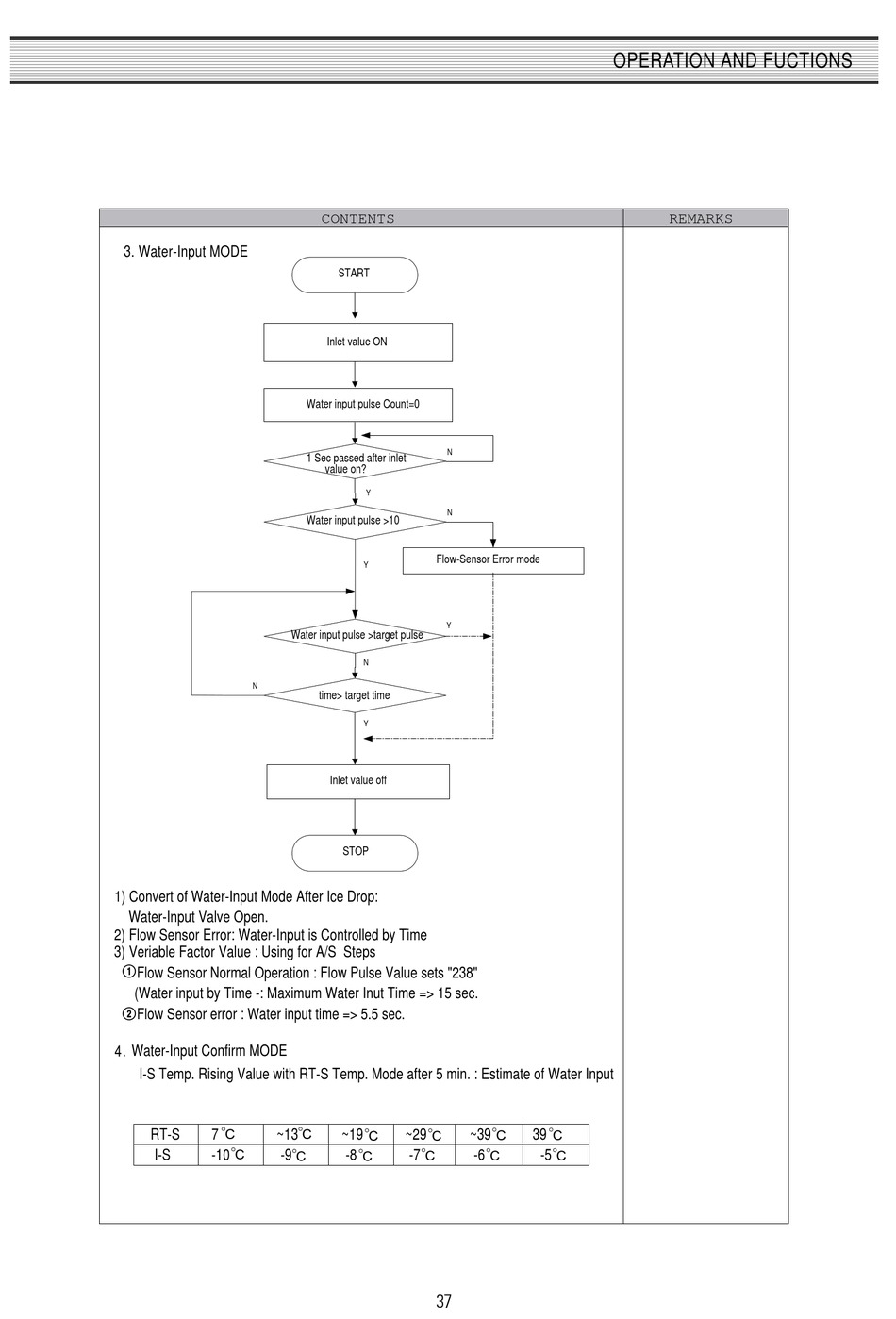

3. Water-Input MODE

N
1) Convert of Water-Input Mode After Ice Drop:
Water-Input Valve Open.
2) Flow Sensor Error: Water-Input is Controlled by Time
3) Veriable Factor Value : Using for A/S Steps
!
Flow Sensor Normal Operation : Flow Pulse Value sets "238"
(Water input by Time -: Maximum Water Inut Time => 15 sec.
@
Flow Sensor error : Water input time => 5.5 sec.

Water-Input Confirm MODE

4.
I-S Temp. Rising Value with RT-S Temp. Mode after 5 min. : Estimate of Water Input
RT-S 7 ~13
C
I-S -10 -9
C
