Wall mounting

Mount the telephone system near a telephone wall socket in a dry room with an ambient tem-
perature of 0-40° C.
The telephone system includes 2 dowels and 2 screws. This equipment facilitates the wall moun-
ting installation.

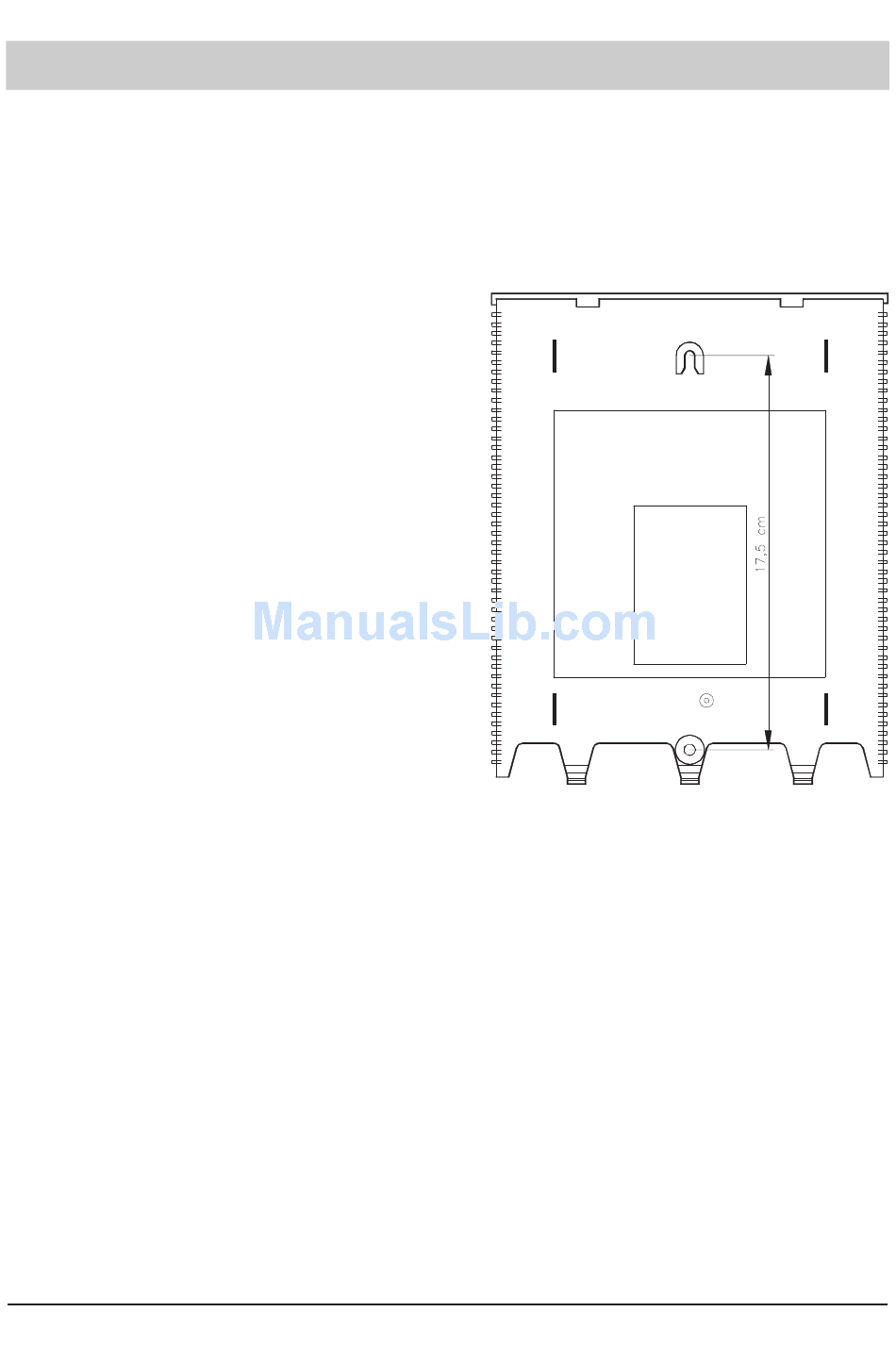

1. On a vertical line place two marks
on the wall 17,5 cm apart.
2. Drill two (6 mm) holes into the wall.
Then plug the holes with the
dowels. Be careful not to drill into
any electrical supply network.
3. The upper
screwed in so that 5 mm remain
showing.
4. Hang the telephone system from
the upper hole on the upper screw.
5. Remove the terminal connection
cover.
6. In the connection area screw in the
lower screw.
screw should be
