D
Diagnosis
A diagnosis function is integrated in the
Sound-Teacher and you can easily check
different functions of your sound module
with this feature.
There are two different types of diagnosis:
1. Diagnosis with datacable (live)
2. Diagnosis with SD card (recorded)

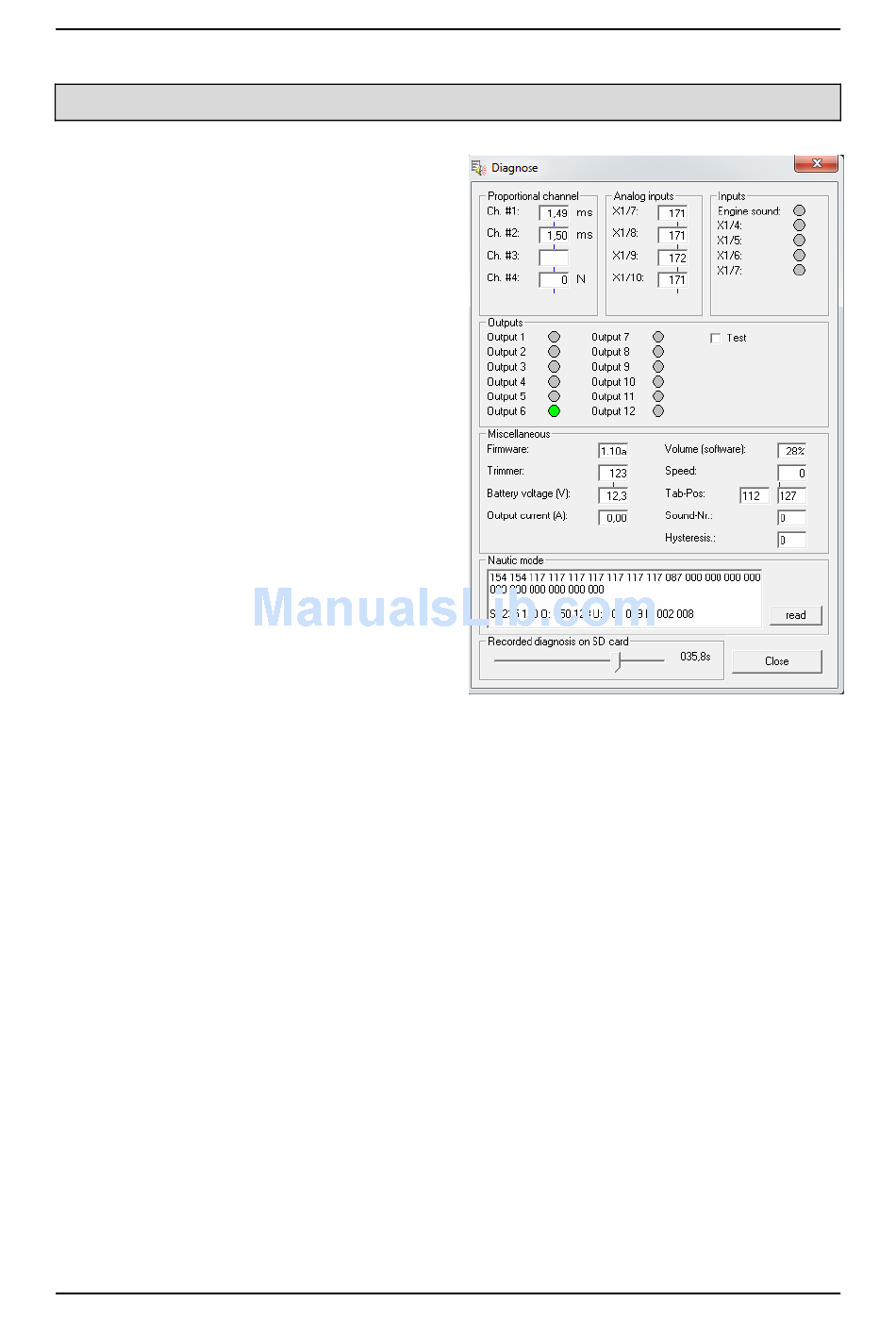

The diagnosis window is divided into
different areas: proportional channels,
analog inputs, inputs, outputs, nautic mode
and others.
The following explains what is shown in the
various areas.
03.02.2014
BEIER-Electronic
Sound module USM-RC-2
81
