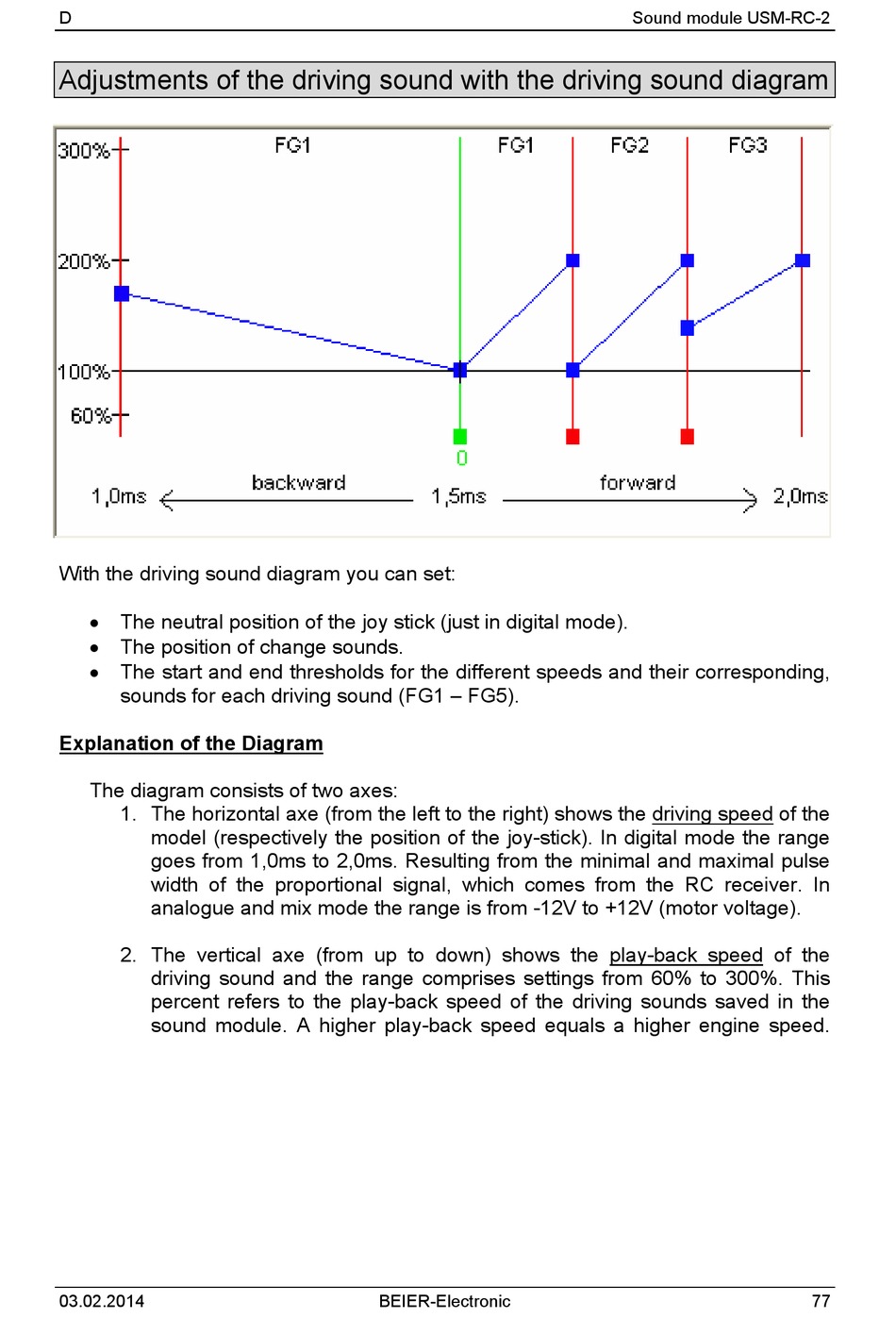

Adjustments of the driving sound with the driving sound diagram

With the driving sound diagram you can set:
 The neutral position of the joy stick (just in digital mode).
 The position of change sounds.
 The start and end thresholds for the different speeds and their corresponding,
sounds for each driving sound (FG1 – FG5).
Explanation of the Diagram
The diagram consists of two axes:
1. The horizontal axe (from the left to the right) shows the driving speed of the
model (respectively the position of the joy-stick). In digital mode the range
goes from 1,0ms to 2,0ms. Resulting from the minimal and maximal pulse
width of the proportional signal, which comes from the RC receiver. In
analogue and mix mode the range is from -12V to +12V (motor voltage).
2. The vertical axe (from up to down) shows the play-back speed of the
driving sound and the range comprises settings from 60% to 300%. This
percent refers to the play-back speed of the driving sounds saved in the
sound module. A higher play-back speed equals a higher engine speed.
