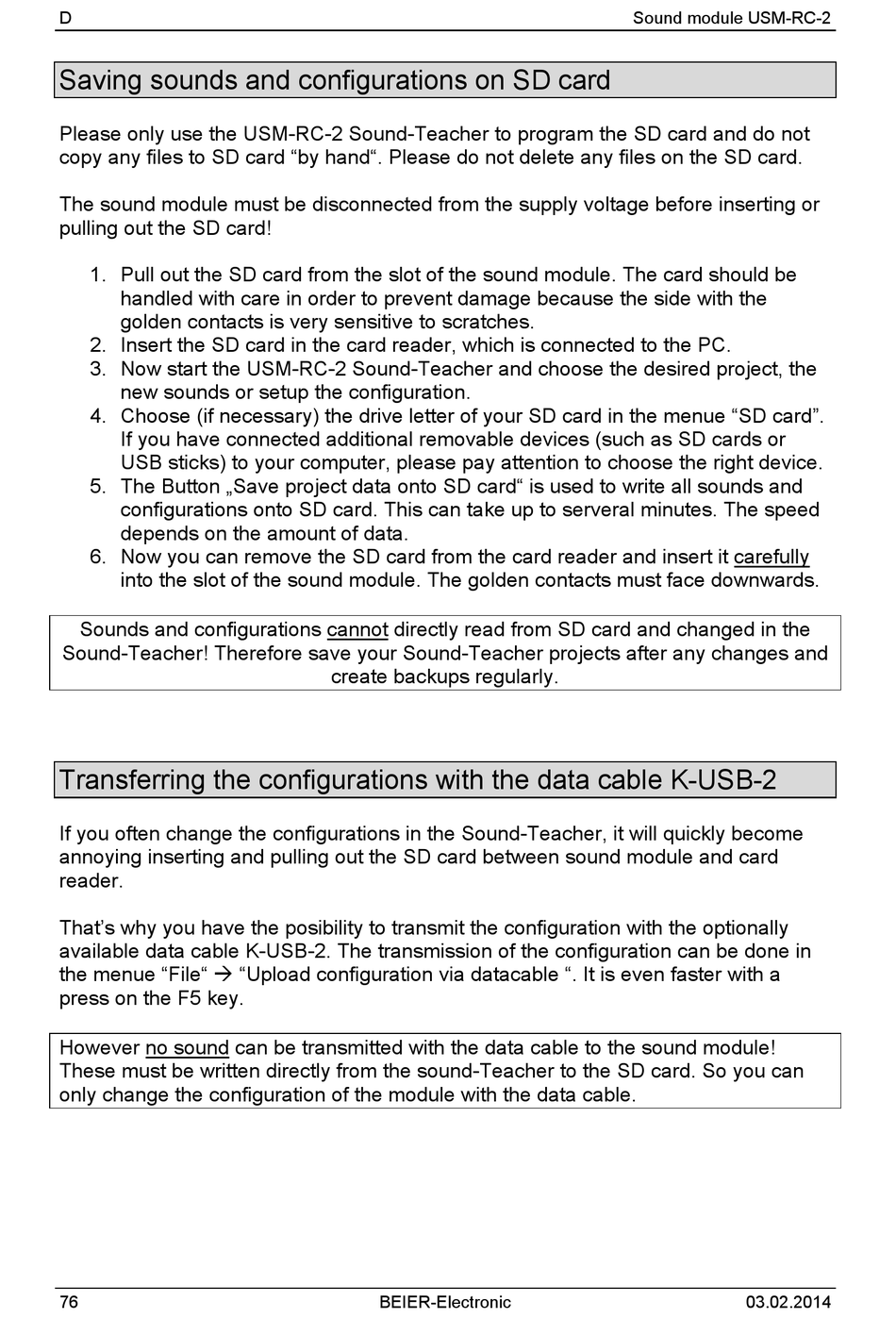

Saving sounds and configurations on SD card

Please only use the USM-RC-2 Sound-Teacher to program the SD card and do not
copy any files to SD card "by hand". Please do not delete any files on the SD card.
The sound module must be disconnected from the supply voltage before inserting or
pulling out the SD card!
1. Pull out the SD card from the slot of the sound module. The card should be
handled with care in order to prevent damage because the side with the
golden contacts is very sensitive to scratches.
2. Insert the SD card in the card reader, which is connected to the PC.
3. Now start the USM-RC-2 Sound-Teacher and choose the desired project, the
new sounds or setup the configuration.
4. Choose (if necessary) the drive letter of your SD card in the menue "SD card".
If you have connected additional removable devices (such as SD cards or
USB sticks) to your computer, please pay attention to choose the right device.
5. The Button „Save project data onto SD card" is used to write all sounds and
configurations onto SD card. This can take up to serveral minutes. The speed
depends on the amount of data.
6. Now you can remove the SD card from the card reader and insert it carefully
into the slot of the sound module. The golden contacts must face downwards.
Sounds and configurations cannot directly read from SD card and changed in the
Sound-Teacher! Therefore save your Sound-Teacher projects after any changes and

Transferring the configurations with the data cable K-USB-2

If you often change the configurations in the Sound-Teacher, it will quickly become
annoying inserting and pulling out the SD card between sound module and card
reader.
That's why you have the posibility to transmit the configuration with the optionally
available data cable K-USB-2. The transmission of the configuration can be done in
the menue "File"  "Upload configuration via datacable ". It is even faster with a
press on the F5 key.
However no sound can be transmitted with the data cable to the sound module!
These must be written directly from the sound-Teacher to the SD card. So you can
only change the configuration of the module with the data cable.
76
create backups regularly.
