D Sound module USM-RC-2

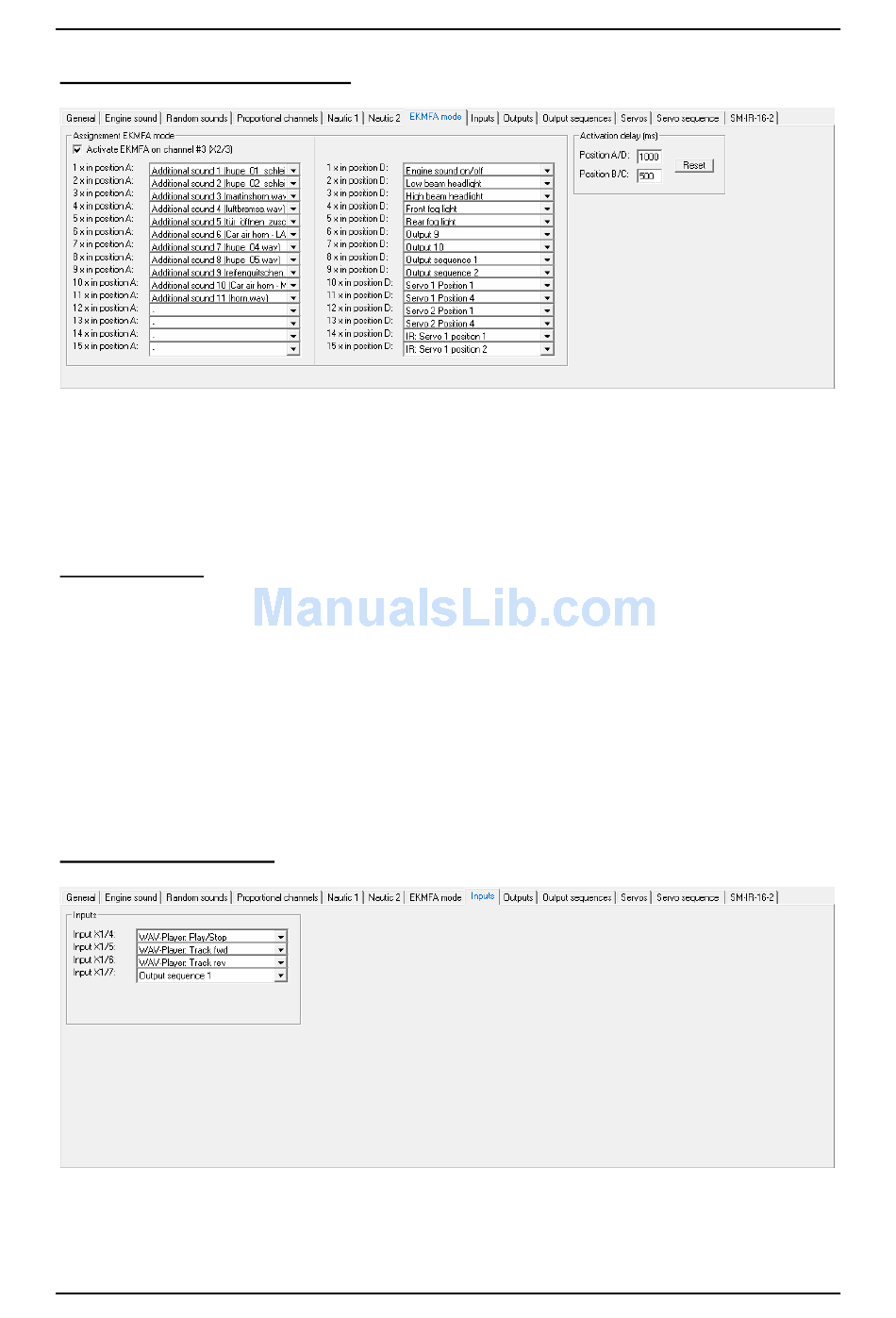

Configuration – EKMFA mode
If you want to use the EMKFA mode, you will first have to activate it here.
The used functions for the EKMFA mode (see page 38) can be configured here.
Of course, you don't have to assign every possible position (2 x 15 positions).
Activation delay
Certain times can be set that determine how long the joystick / switch / etc. must be
in the positions A, B, C and D in order to activate the corresponding functions. Times
between 10 and 2500ms are possible.
However, the values set here are always valid for all proportional channels. It is not
possible to define delays for one channel separately.
Clicking on the reset button will restore the standard values.
Configuration - inputs
Here you can assign functions to the switching-inputs.
