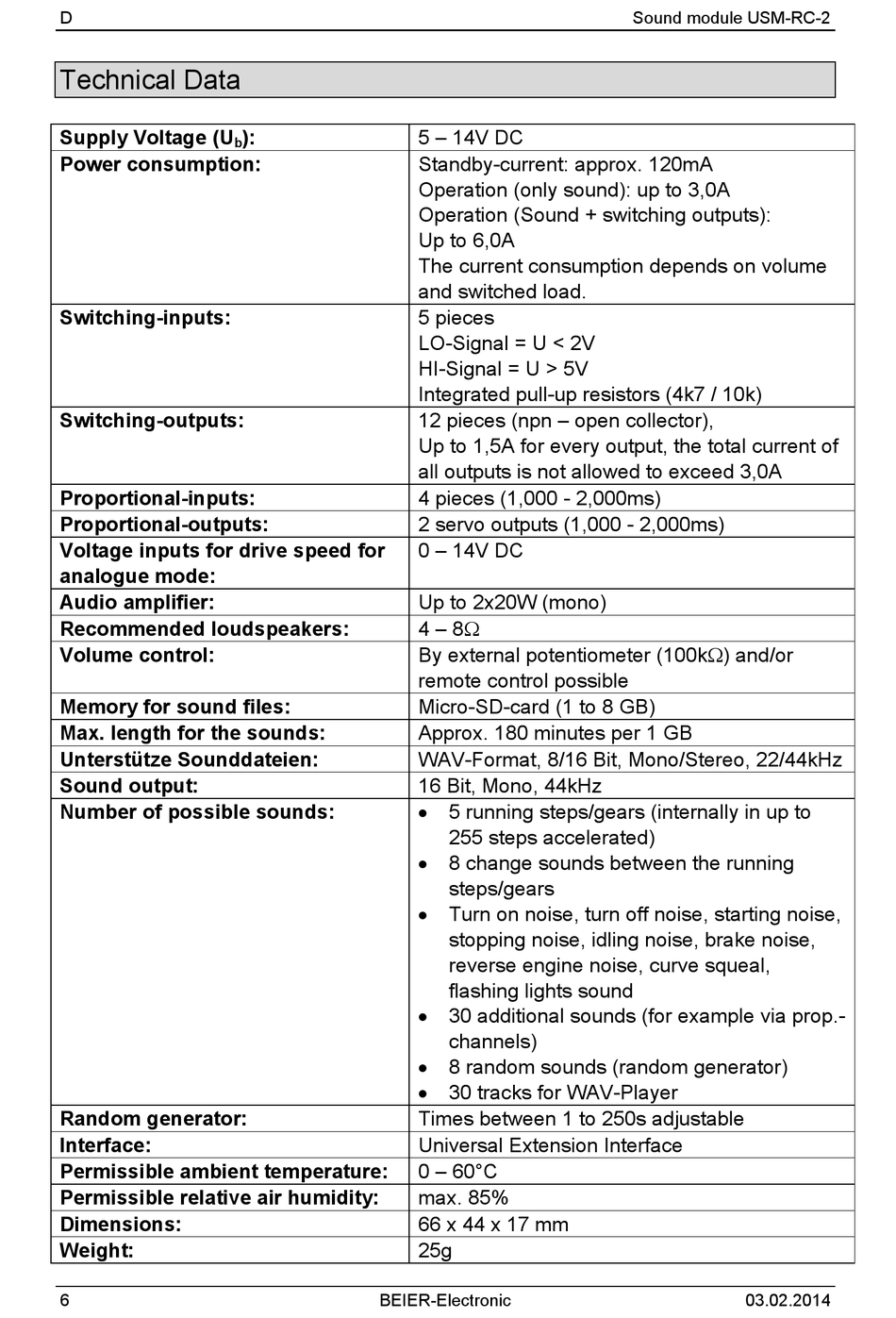

Technical Data

Supply Voltage (U
Power consumption:
Switching-inputs:
Switching-outputs:
Proportional-inputs:
Proportional-outputs:
Voltage inputs for drive speed for
analogue mode:
Audio amplifier:
Recommended loudspeakers:
Volume control:
Memory for sound files:
Max. length for the sounds:
Unterstütze Sounddateien:
Sound output:
Number of possible sounds:
Random generator:
Interface:
Permissible ambient temperature:
Permissible relative air humidity:
Dimensions:
Weight:
6
):
b
BEIER-Electronic
5 – 14V DC
Standby-current: approx. 120mA
Operation (only sound): up to 3,0A
Operation (Sound + switching outputs):
Up to 6,0A
The current consumption depends on volume
and switched load.
5 pieces
LO-Signal = U < 2V
HI-Signal = U > 5V
Integrated pull-up resistors (4k7 / 10k)
12 pieces (npn – open collector),
Up to 1,5A for every output, the total current of
all outputs is not allowed to exceed 3,0A
4 pieces (1,000 - 2,000ms)
2 servo outputs (1,000 - 2,000ms)
0 – 14V DC
Up to 2x20W (mono)
4 – 8
By external potentiometer (100k) and/or
remote control possible
Micro-SD-card (1 to 8 GB)
Approx. 180 minutes per 1 GB
WAV-Format, 8/16 Bit, Mono/Stereo, 22/44kHz
16 Bit, Mono, 44kHz
 5 running steps/gears (internally in up to
255 steps accelerated)
 8 change sounds between the running
steps/gears
 Turn on noise, turn off noise, starting noise,
stopping noise, idling noise, brake noise,
reverse engine noise, curve squeal,
flashing lights sound
 30 additional sounds (for example via prop.-
channels)
 8 random sounds (random generator)
 30 tracks for WAV-Player
Times between 1 to 250s adjustable
Universal Extension Interface
0 – 60°C
max. 85%
66 x 44 x 17 mm
25g
