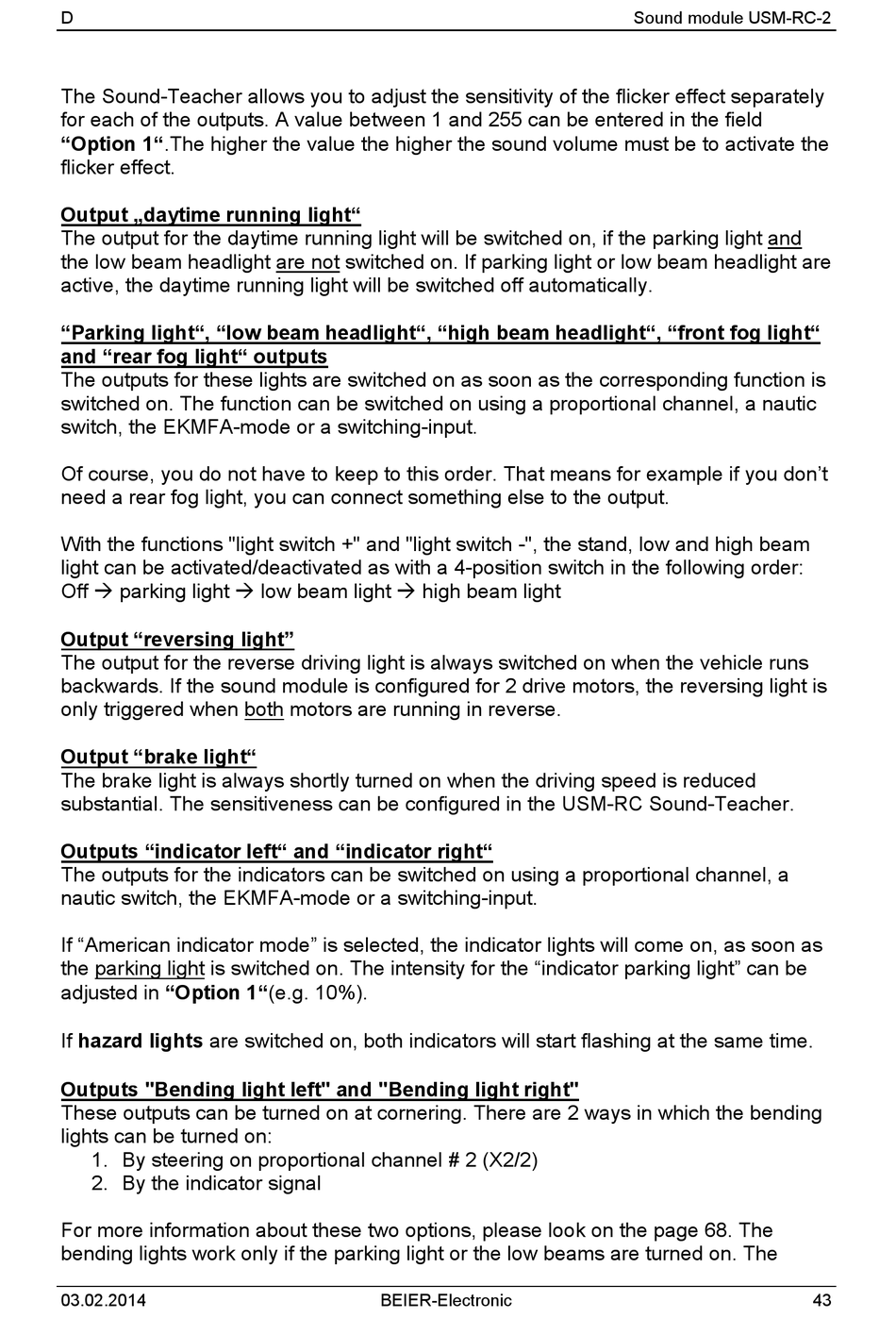

The Sound-Teacher allows you to adjust the sensitivity of the flicker effect separately
for each of the outputs. A value between 1 and 255 can be entered in the field
"Option 1".The higher the value the higher the sound volume must be to activate the
flicker effect.
Output „daytime running light"
The output for the daytime running light will be switched on, if the parking light and
the low beam headlight are not switched on. If parking light or low beam headlight are
active, the daytime running light will be switched off automatically.
"Parking light", "low beam headlight", "high beam headlight", "front fog light"
and "rear fog light" outputs
The outputs for these lights are switched on as soon as the corresponding function is
switched on. The function can be switched on using a proportional channel, a nautic
switch, the EKMFA-mode or a switching-input.
Of course, you do not have to keep to this order. That means for example if you don't
need a rear fog light, you can connect something else to the output.
With the functions "light switch +" and "light switch -", the stand, low and high beam
light can be activated/deactivated as with a 4-position switch in the following order:
Off  parking light  low beam light  high beam light
Output "reversing light"
The output for the reverse driving light is always switched on when the vehicle runs
backwards. If the sound module is configured for 2 drive motors, the reversing light is
only triggered when both motors are running in reverse.
Output "brake light"
The brake light is always shortly turned on when the driving speed is reduced
substantial. The sensitiveness can be configured in the USM-RC Sound-Teacher.
Outputs "indicator left" and "indicator right"
The outputs for the indicators can be switched on using a proportional channel, a
nautic switch, the EKMFA-mode or a switching-input.
If "American indicator mode" is selected, the indicator lights will come on, as soon as
the parking light is switched on. The intensity for the "indicator parking light" can be
adjusted in "Option 1"(e.g. 10%).
If hazard lights are switched on, both indicators will start flashing at the same time.
Outputs "Bending light left" and "Bending light right"
These outputs can be turned on at cornering. There are 2 ways in which the bending
lights can be turned on:
1. By steering on proportional channel # 2 (X2/2)
2. By the indicator signal
For more information about these two options, please look on the page 68. The
bending lights work only if the parking light or the low beams are turned on. The
