G50-30/G50-45/G50-70/G50-70m/Z50-70 Hardware Maintenance Manual

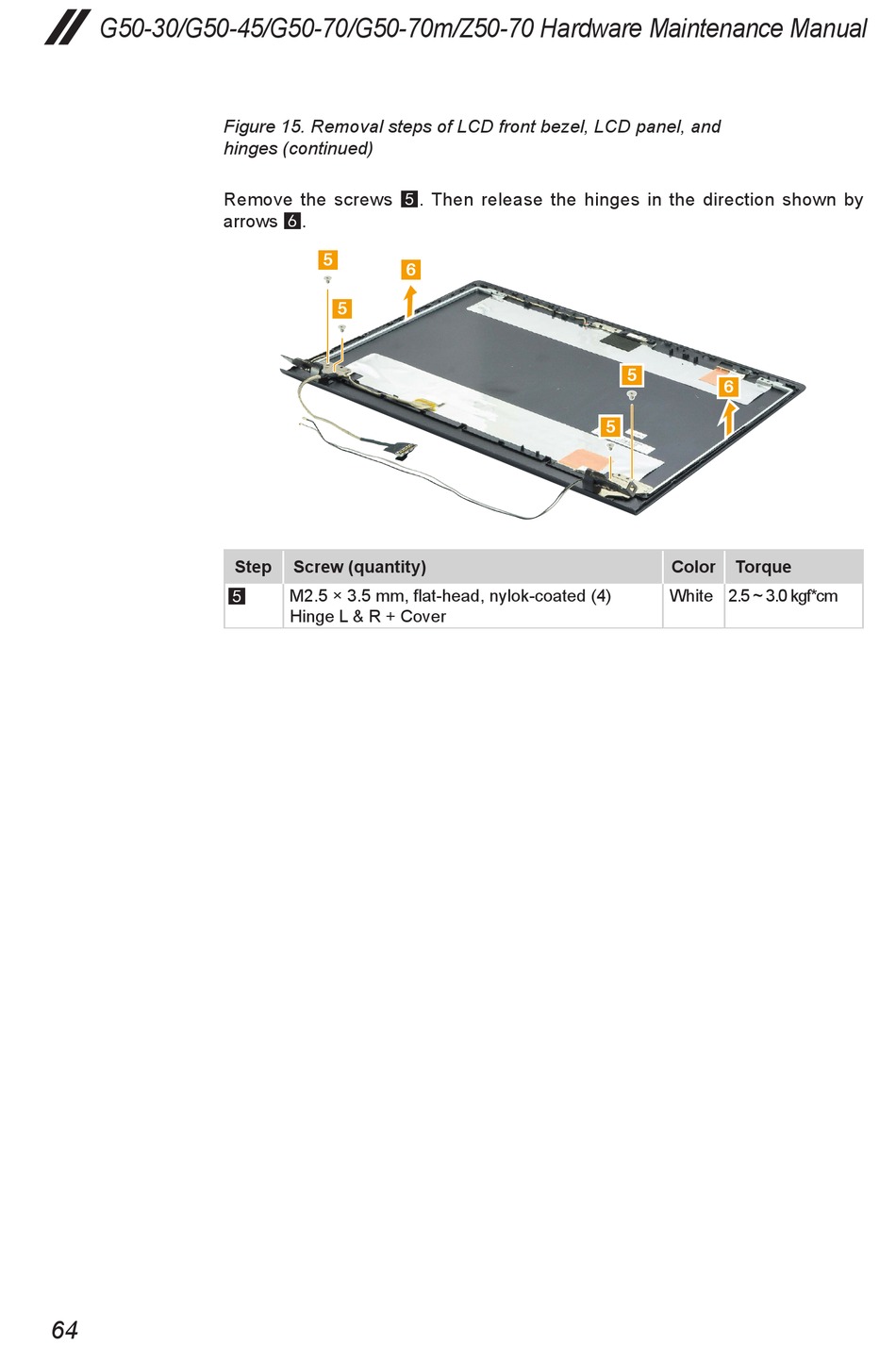

Figure 15. Removal steps of LCD front bezel, LCD panel, and
hinges (continued)
Remove the screws 5. Then release the hinges in the direction shown by
arrows 6.
64
Step
Screw (quantity)
M2.5 × 3.5 mm, flat-head, nylok-coated (4)
5
Hinge L & R + Cover
Color
Torque
White 2.5 ~ 3.0 kgf*cm
