1100 ODD board and USB&audio board
For access, remove these FRUs in order:
• "1010 Battery pack" on page 33
• "1020 Base cover" on page 34
• "1030 Optical drive" on page 36
• "1040 Hard disk drive" on page 37
• "1050 PCI Express Mini Card for wireless LAN" on page 39
• "1070 Fan assembly" on page 42
• "1080 Keyboard" on page 44
• "1090 Keyboard bezel" on page 47

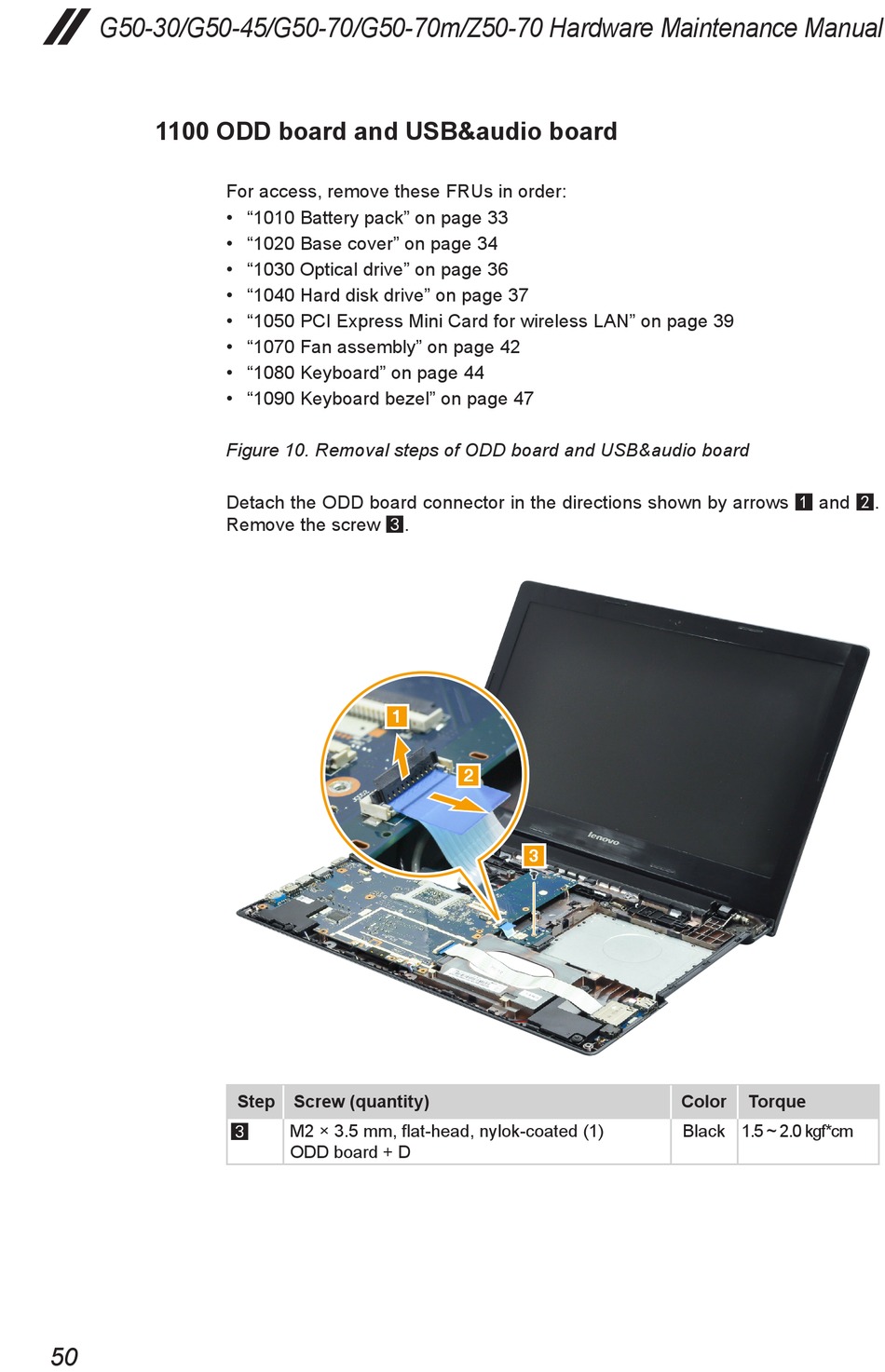

Figure 10. Removal steps of ODD board and USB&audio board
Detach the ODD board connector in the directions shown by arrows 1 and 2.
Remove the screw 3.
50
Step Screw (quantity)
M2 × 3.5 mm, flat-head, nylok-coated (1)
3
ODD board + D
Color Torque
Black 1.5 ~ 2.0 kgf*cm
