Lenovo G400/G500/G405/G505/G410/G510 Hardware Maintenance
Manual

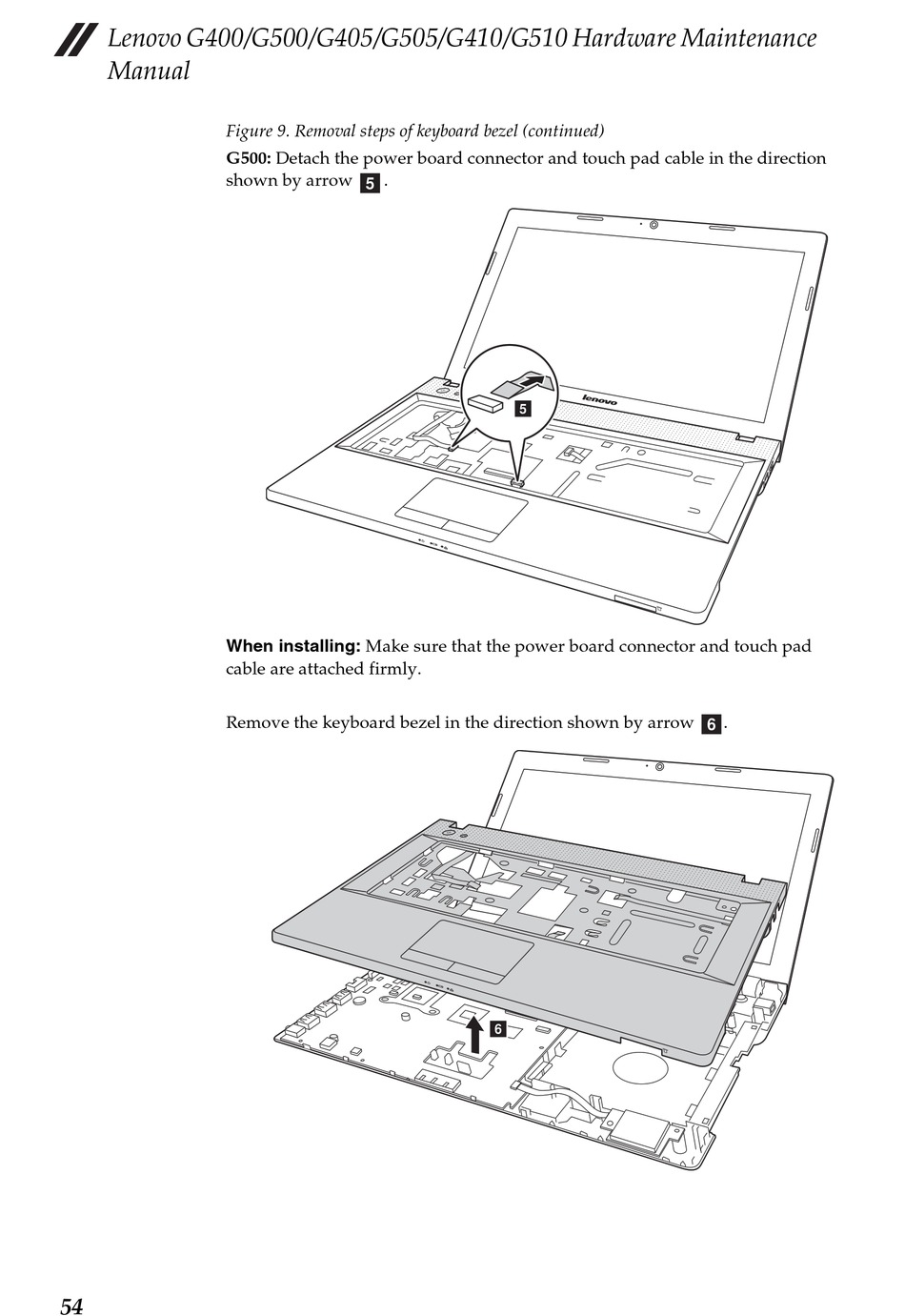

Figure 9. Removal steps of keyboard bezel (continued)
G500: Detach the power board connector and touch pad cable in the direction
shown by arrow
When installing: Make sure that the power board connector and touch pad
cable are attached firmly.
Remove the keyboard bezel in the direction shown by arrow
54
e
.
e
f
f .
