2.02. Connecting the Remote
Control Unit

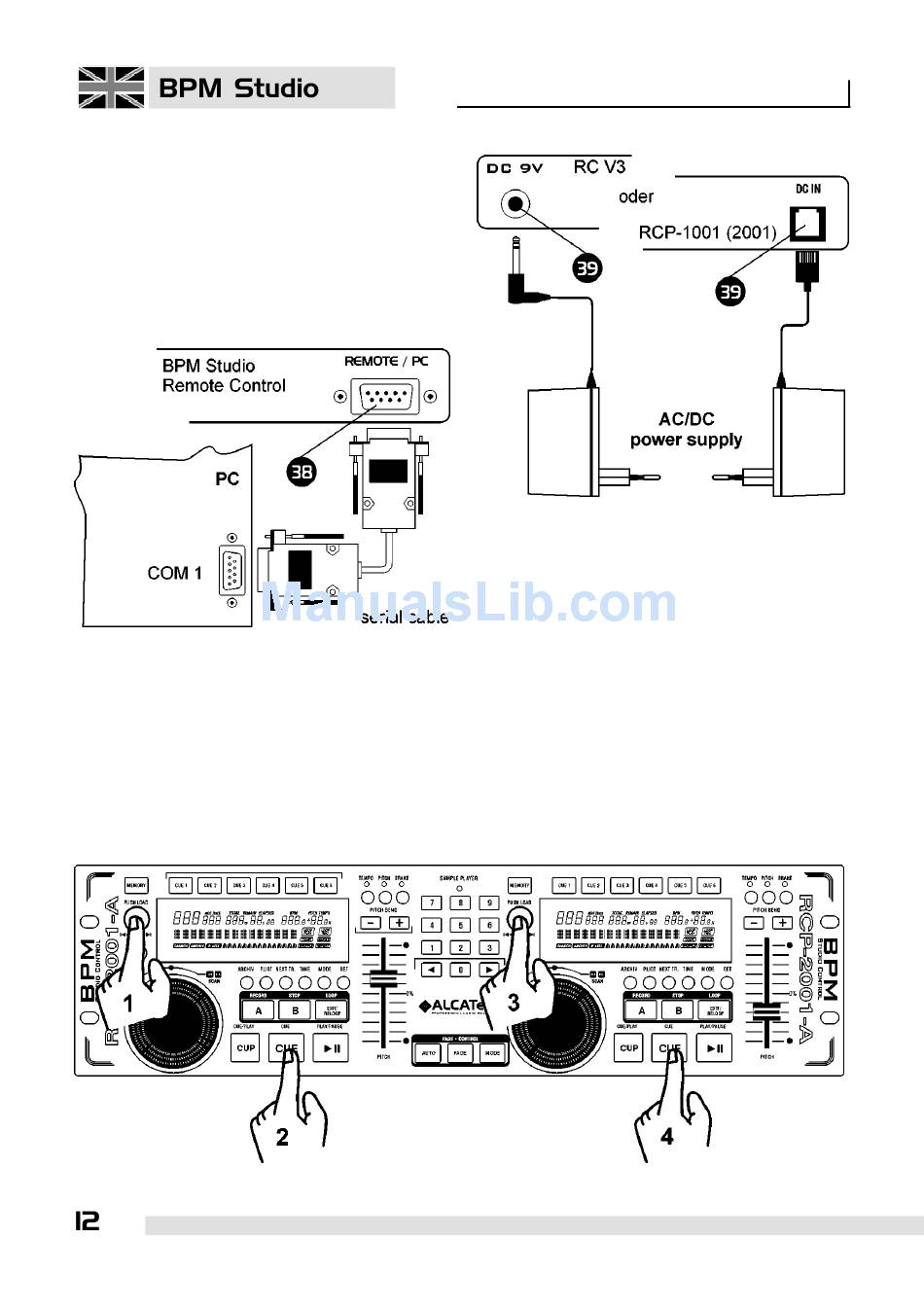

1.) Connect the control unit [38] to a free serial
port of your PC (e.g. COM2) using the supplied
cable. You may also use a different cable, as long
as the length does not exceed a maximum of 15
meters (45 ft.). It is recommended to use cables
not longer than 10 meters. (30 ft.)
2.) Connect the supplied power supply unit [39]
with the control unit, and plug in to a power outlet.
The connection of the Remote Control is also
possible by USB Port. Therefore a special USB-
serial adapter is available by ALCATech.

2.03. Hardware Reset

Control units RCV-1001 and RCP-2001 come with
own integrated processors and firmware. Should
stable operation ever be disrupted by external
influence, the control unit can be restarted by
pushing the reset button. If the software is running,
it will automatically detect if the control unit has
proceeded it's internal boot process, and resume
normal operation. To reset, push in sequence the
track-selector and cue key of player A and B. Upon
pushing the last key (cue key of player B) the unit
will reset, and reboot. After completed system
boot, the display will show a message stating that
the unit is working again.
