Front and side view

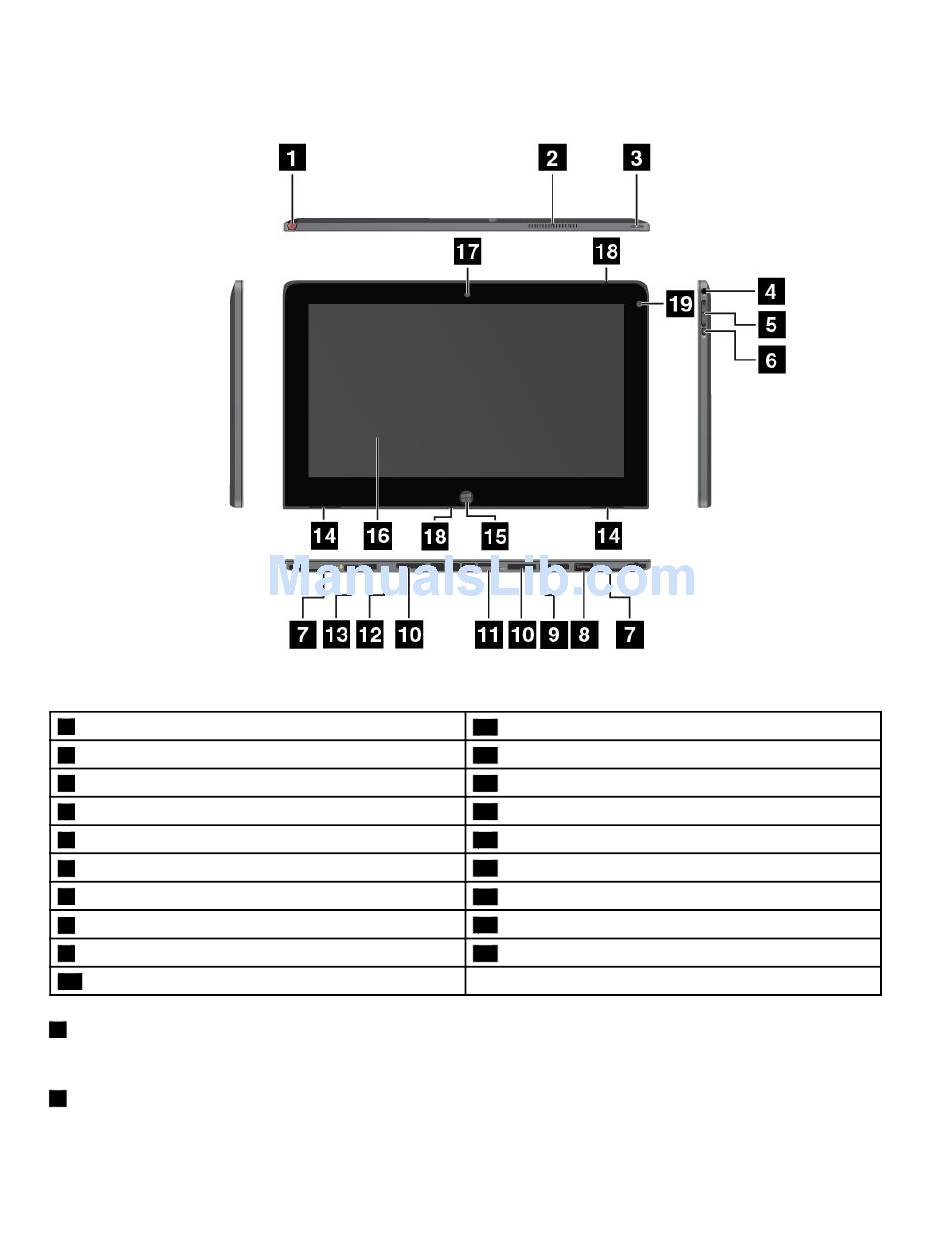

Figure 3. ThinkPad Helix front and side view
1
Tablet Digitizer Pen storage
2
Fan louvers
3
Power button
4
Combo audio jack
5
Volume control buttons
6
Screen rotation lock button
7
Label trays
8
USB 2.0 connector
9
Mini DisplayPort connector
10
Keyboard dock connectors
1
Tablet Digitizer Pen storage
If the tablet is shipped with a Tablet Digitizer Pen or you have purchased one, use the storage to store it.
2 Fan louvers
The internal fan and louvers enable air to circulate in the tablet and cool the central processor.
Note: To avoid impeding airflow, do not place any obstacle in front of the fan.
4
User Guide
11
SIM card tray
12
Emergency reset hole
13
Power connector
14
Built-in stereo speakers
15
Windows button
16
Multi-touch screen
17
Front-facing camera
18
Microphones
19
Ambient light sensor
