Setting for an External Device

Connect the external device properly to the unit by using either L2 and L3 (Front) or L1 (Rear) input jacks.
When connecting an external device of monaural output to this unit, use AUDIO L jack of L2 (Front) or L1 (Rear).
Use S-Video or the RCA audio/video cables for this connection.
When connecting a DVC (digital video camcorder), use DV-IN jack of L3 (Front).

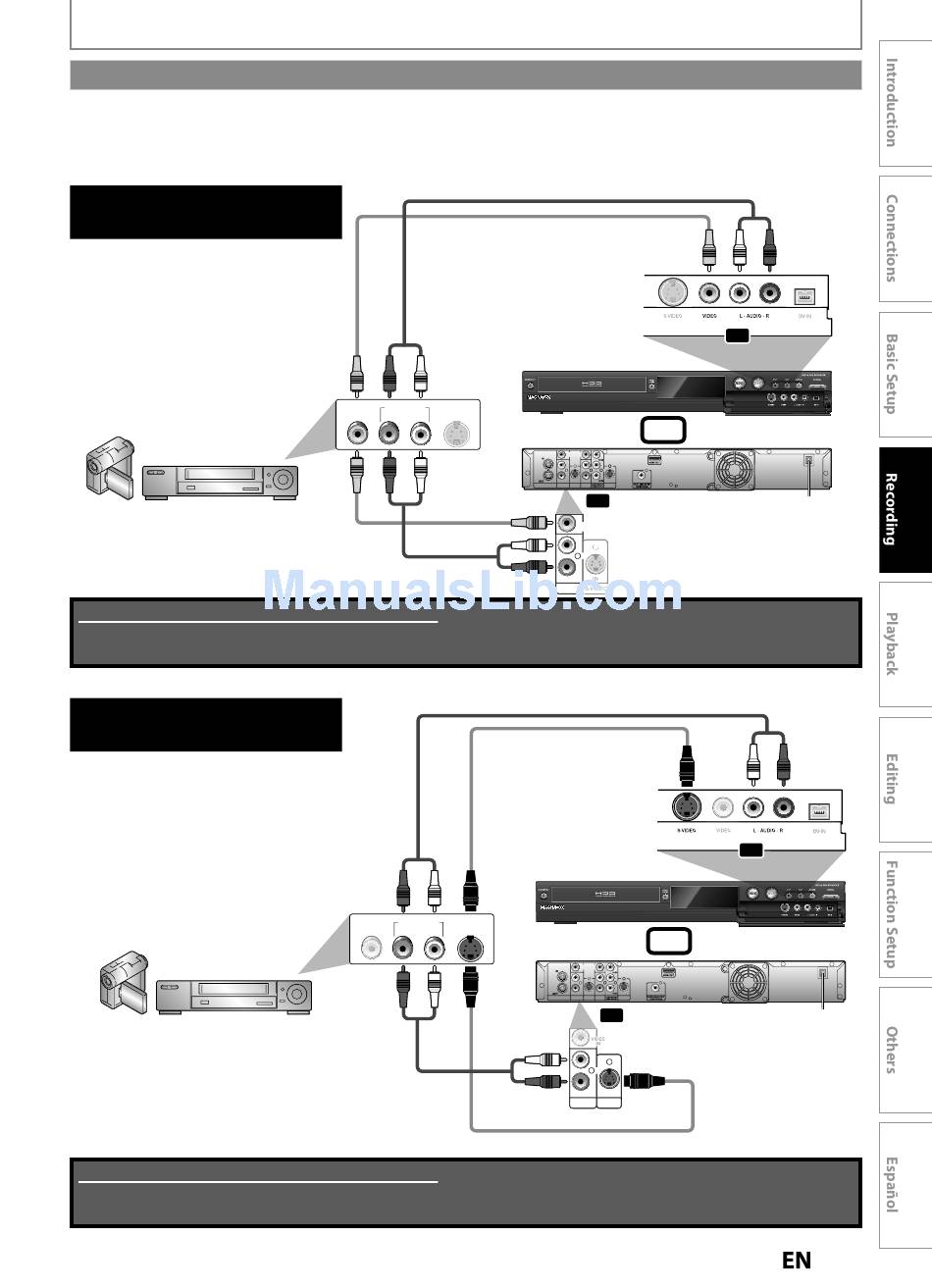

Connecting to an External Device
Using the RCA cables
external device
(camcorder, VCR etc.)
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Connecting to an External Device
Using an S-Video cable
external device
(camcorder, VCR etc.)
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
Please purchase the rest of the necessary cables at your local store.
DUBBING
RCA audio cable
RCA video cable
VIDEO AUDIO OUT S-VIDEO S-VIDEO
OUT OUT OUT
R L
RCA video cable
RCA audio cable
VIDEO VIDEO AUDIO OUT S-VIDEO
OUT OUT OUT
R L
RCA audio cable
front of this unit
or
VIDEO VIDEO
Y
IN OUT
L L
R R
IN OUT COAXIAL
ANTENNA AUDIO IN S-VIDEO AUDIO OUT S-VIDEO
( L1 )
L1
rear of this unit
VIDEO VIDEO
IN IN
L L
R R
AUDIO IN
( L1 )
RCA audio cable
S-Video cable
front of this unit
or
VIDEO VIDEO
Y
IN OUT
L L
R R
IN OUT
COAXIAL
AUDIO IN
ANTENNA S-VIDEO AUDIO OUT S-VIDEO
( L1 )
rear of this unit
L1
VIDEO VIDEO VIDEO VIDEO
IN IN IN IN
L L
R R
IN IN
AUDIO IN
S-VIDEO S-VIDEO
( L1 )
S-Video cable
L2
L2
