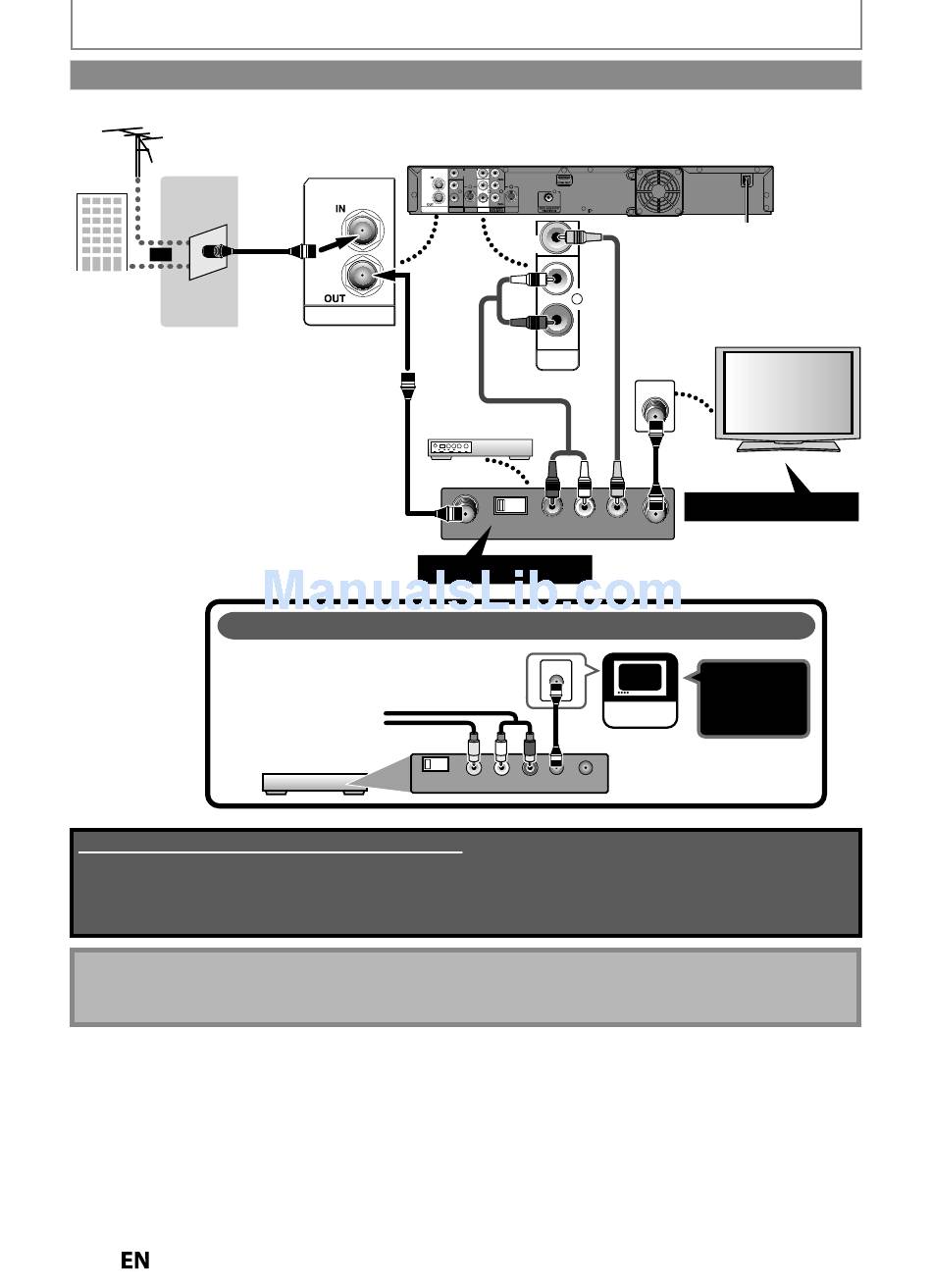

Connecting to a TV without Audio / Video jacks
VHF / UHF
antenna
or
cable TV
company
If your TV only has an Antenna input
(no A/ V inputs), you will need a
RF modulator (NOT INCLUDED) to
connect this player.
Supplied cables used in this connection are as follows:
• RF coaxial cable x 1
• RCA audio cable (L/R) x 1
• RCA video cable x 1
Please purchase the rest of the necessary cables at your local store.
Note
• RF modulator is not supplied with this unit. You need to purchase it at your local store.
• The quality of picture may become poor if this unit is connected to an RF modulator.
20 EN EN
CONNECTION
rear of this unit
RF coaxial
cable
ANTENNA
rear of your RF modulator
RF coaxial cable
No Antenna (RF) Output!
RF modulator
VIDEO VIDEO
Y
IN
OUT
L L
R R
IN OUT COAXIAL
AUDIO IN
ANTENNA S-VIDEO AUDIO OUT S-VIDEO
( L1 )
VIDEO
OUT
L
R
AUDIO OUT
RCA audio cable
(not supplied)
3 4
R L
ANT. IN CHANNEL AUDIO IN
Set channel 3 or 4
ANT. IN
3 4
L R
CHANNEL VIDEO IN TO TV ANT. IN
AUDIO IN
RCA video
cable
ANT. IN
RF coaxial cable
Set channel 3 or 4
VIDEO IN TO TV
No A/V
Inputs
TV
