Magnavox MDR533H Owner's Manual page 117

Symptom
DV signal cannot be input.
The DVC cannot be operated with this
unit.
Certain functions of the DVC cannot
operate.
DV audio signal cannot be switched.
No image from HDMI connection.
Setup menu cannot be called up.
TV channels cannot be changed.
Only specific channels do not appear.
The external input channels (such as
L1, L2 or L3) cannot be skipped.
The unit is not picking up my channels
from the Auto Scan.
The image from the external device
cannot be displayed or recorded.

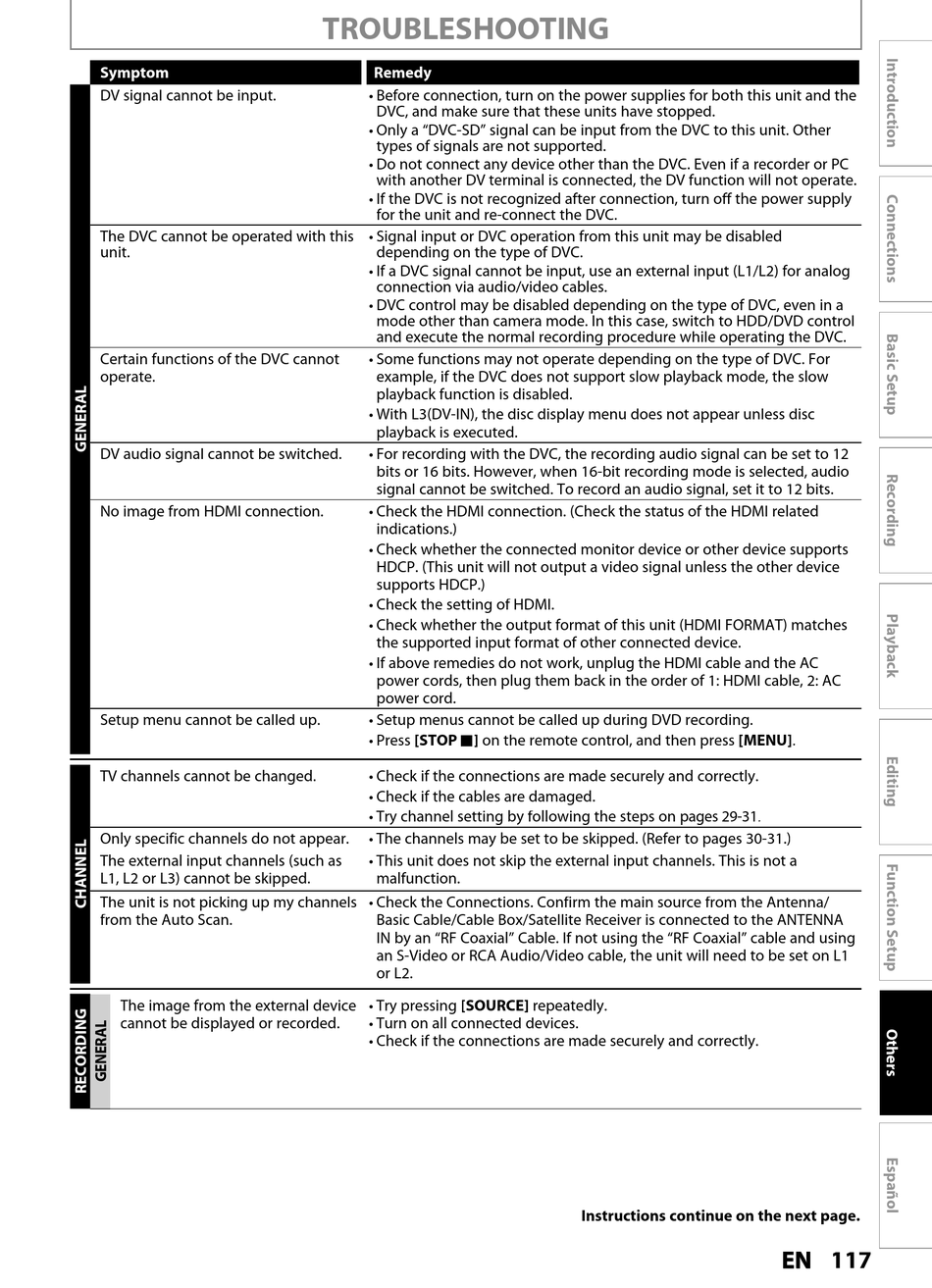

TROUBLESHOOTING
Remedy
• Before connection, turn on the power supplies for both this unit and the
DVC, and make sure that these units have stopped.
• Only a "DVC-SD" signal can be input from the DVC to this unit. Other
types of signals are not supported.
• Do not connect any device other than the DVC. Even if a recorder or PC
with another DV terminal is connected, the DV function will not operate.
• If the DVC is not recognized after connection, turn off the power supply
for the unit and re-connect the DVC.
• Signal input or DVC operation from this unit may be disabled
depending on the type of DVC.
• If a DVC signal cannot be input, use an external input (L1/L2) for analog
connection via audio/video cables.
• DVC control may be disabled depending on the type of DVC, even in a
mode other than camera mode. In this case, switch to HDD/DVD control
and execute the normal recording procedure while operating the DVC.
• Some functions may not operate depending on the type of DVC. For
example, if the DVC does not support slow playback mode, the slow
playback function is disabled.
• With L3(DV-IN), the disc display menu does not appear unless disc
playback is executed.
• For recording with the DVC, the recording audio signal can be set to 12
bits or 16 bits. However, when 16-bit recording mode is selected, audio
signal cannot be switched. To record an audio signal, set it to 12 bits.
• Check the HDMI connection. (Check the status of the HDMI related
indications.)
• Check whether the connected monitor device or other device supports
HDCP. (This unit will not output a video signal unless the other device
supports HDCP.)
• Check the setting of HDMI.
• Check whether the output format of this unit (HDMI FORMAT) matches
the supported input format of other connected device.
• If above remedies do not work, unplug the HDMI cable and the AC
power cords, then plug them back in the order of 1: HDMI cable, 2: AC
power cord.
• Setup menus cannot be called up during DVD recording.
• Press [STOP C] on the remote control, and then press [MENU].
• Check if the connections are made securely and correctly.
• Check if the cables are damaged.
• Try channel setting by following the steps on pages 29-31.
• The channels may be set to be skipped. (Refer to pages 30-31.)
• This unit does not skip the external input channels. This is not a
malfunction.
• Check the Connections. Confirm the main source from the Antenna/
Basic Cable/Cable Box/Satellite Receiver is connected to the ANTENNA
IN by an "RF Coaxial" Cable. If not using the "RF Coaxial" cable and using
an S-Video or RCA Audio/Video cable, the unit will need to be set on L1
or L2.
• Try pressing [SOURCE] repeatedly.
• Turn on all connected devices.
• Check if the connections are made securely and correctly.
Instructions continue on the next page.
EN EN 117
