Center Of Gravity Of The Machine - JUNTTAN PM 20L Operator's Manual

JUNTTAN
Daily operation section
6.8.6

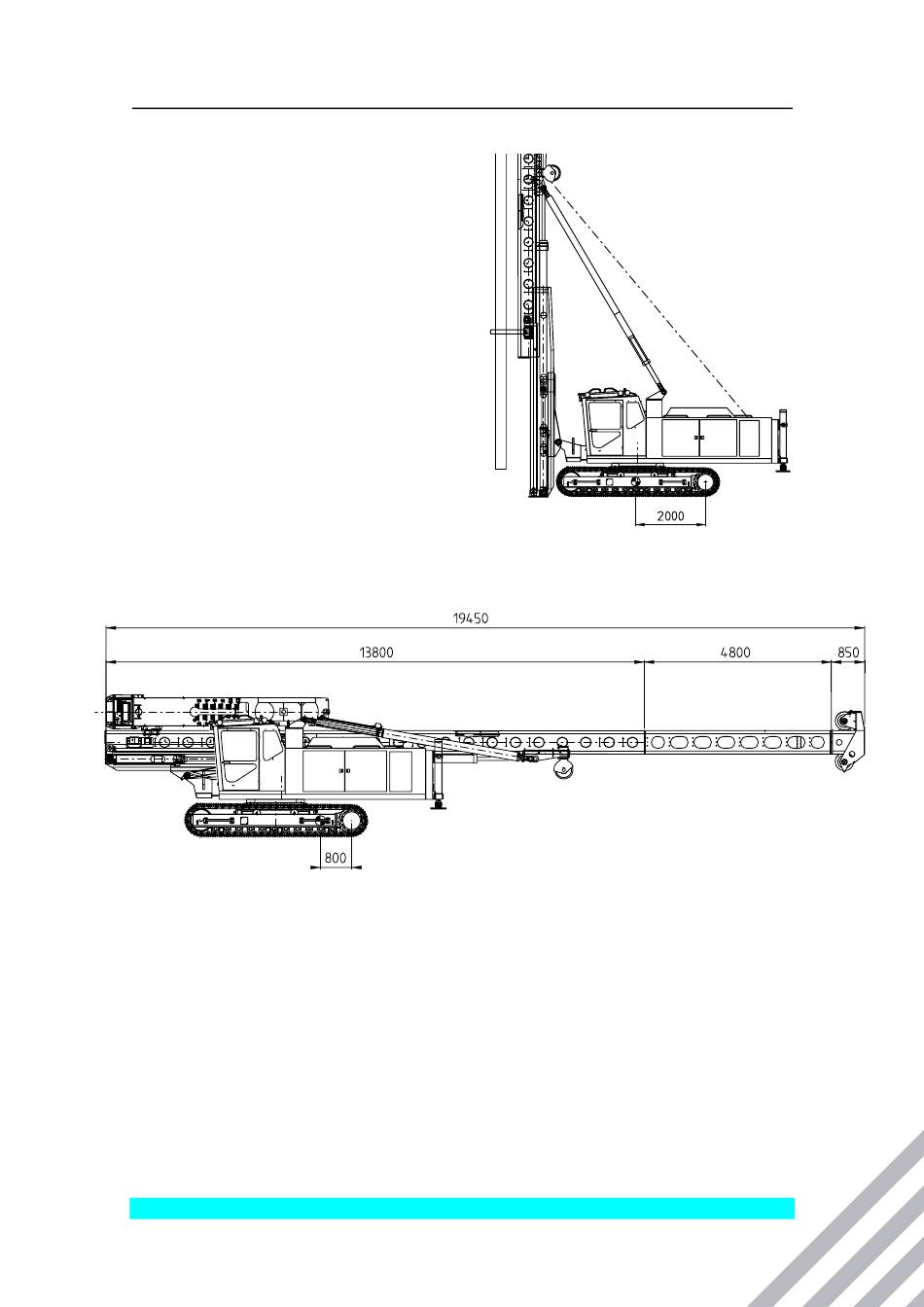

CENTER OF GRAVITY OF THE MACHINE

Working position
- leader in vertical position
- leader length 18.6 m (13.8 + 4.8) + cathead
- horizontal slide in
- counterweight (7 500 kg) fully in
- hammer (7 700 kg) on the leader
Transport position
- leader length 18.6 m (13.8 + 4.8) + cathead
- hammer (7 700 kg) on the leader
- counterweight (7 500 kg) fully in
90
