JUNTTAN
6.6.6

USE OF STABILIZERS

OPTIONAL
The rear stabilizers (if they are on place) can be used to lift up the machine with the
leader foot to rotate the undercarriage. Also the stabilizers give support to machine
when you lift/lower the leader or take backward inclination. You can move the
stabilizers up and down with the switches on the left console.
6.7

TRACK WIDTH ADJUSTMENT

The track width can be adjusted by positioning the crawler frames at the desired
position with hydraulic cylinders. At both ends of the middle body of the undercarriage
there are slides (1) with adjustable stops for the maximum width. You can widen and
narrow the tracks from the cab. The track width is adjusted with the switch at the top of
the control lever for the forward inclination and leader foot on the right console.
n DANGER
The tracks must be fully out in working.

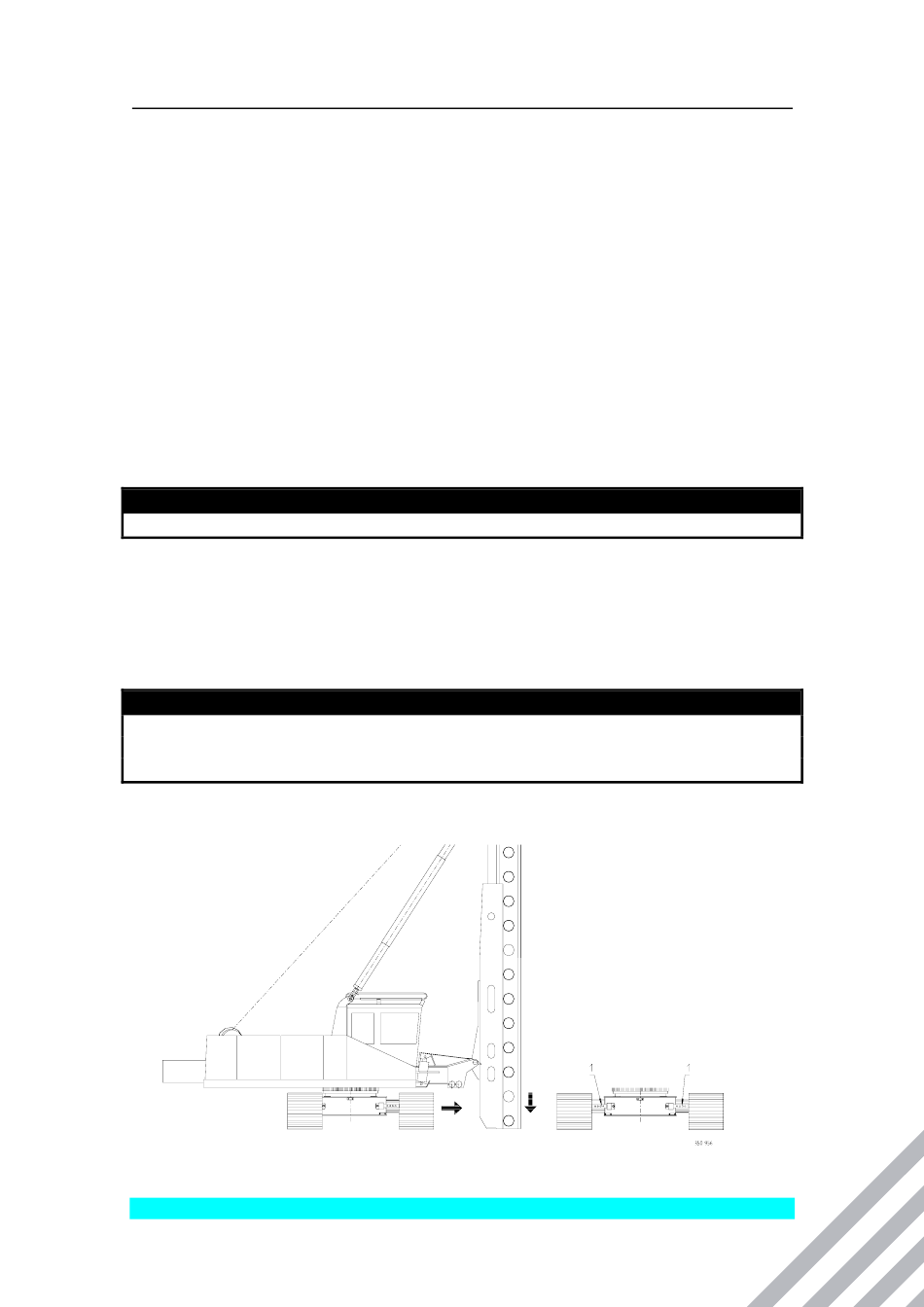

LIFTED LEADER
When you want to change the track width, turn the machinery deck crosscarriage and
push the leader foot against ground to raise one side of the tracks. Now you can widen
or narrow the track width. Raise the leader foot and swing the machinery deck around to
the other side and repeat the procedure.
n ATTENTION
When you widen the track width push the tracks against the stops in the slides
mentioned above, and when you narrow the tracks, narrow them until they stop
against the middle body.
Daily operation section
85
