JUNTTAN PM 20L Operator's Manual page 72

JUNTTAN
n WARNING
Make sure that there is no person in the danger zone when moving with the machine.
Make sure that the ground in the working site is level and stable enough and the
border areas are properly marked.

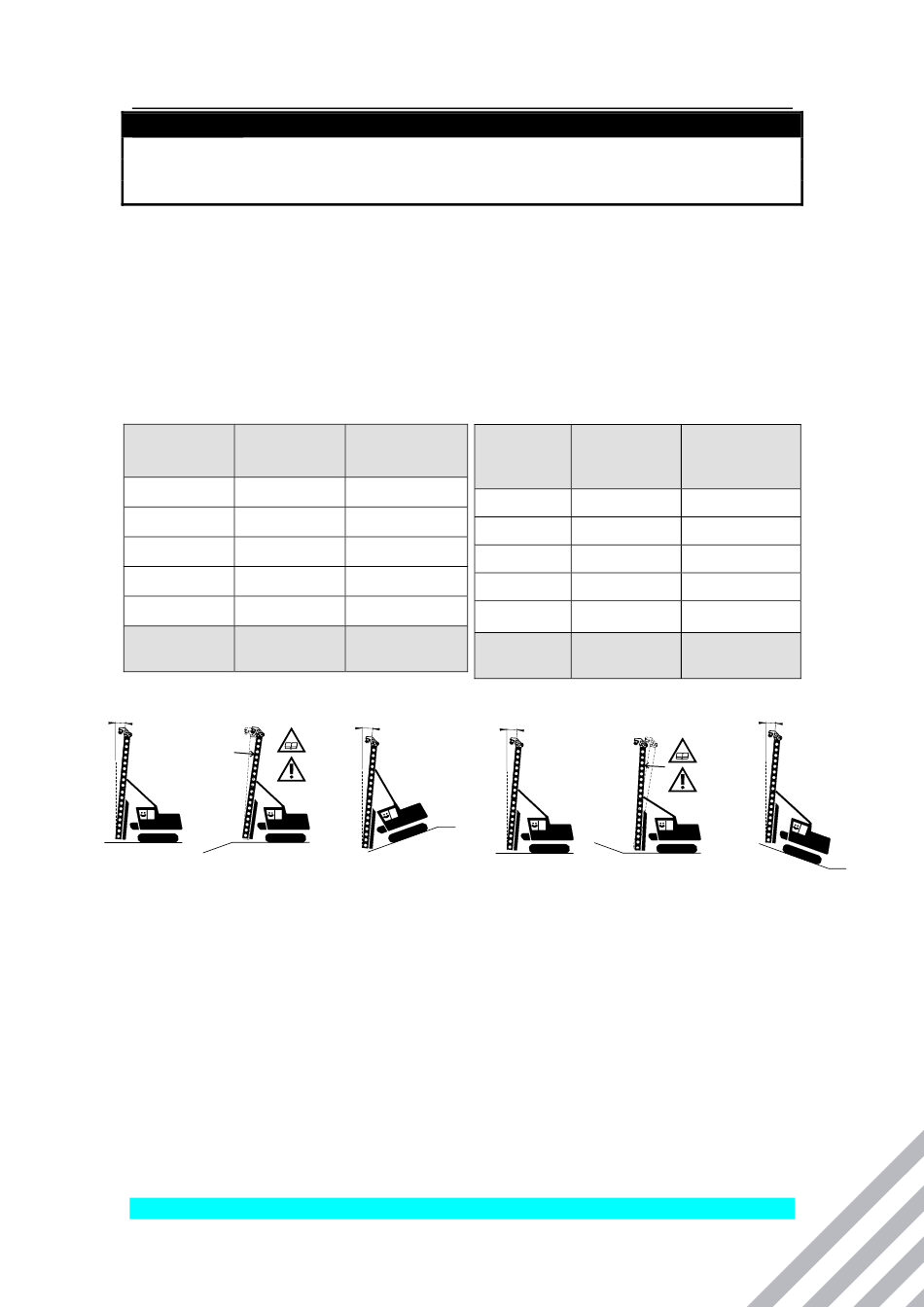

For example
• If you drive to a 5° downward slope, you incline the leader 10° backwards before
driving to a slope.
• If you drive to a 3° upward slope, you incline the leader 2° backwards, before driving
to a slope.
• Notice! See the capacity tables for maximum allowable pile weights and lengths
before inclining leader backwards.
DOWNWARD LEADER
SLOPE BACKWARD
INCLINATION
5° 10°
4° 9°
3° 8°
2° 7°
1° 6°
LEVEL 5°
GROUND
72
INCLINOMETER UPWARD
DISPLAY ON THE
SLOPE
SLOPE
-5°
5°
-5°
4°
-5°
3°
-5°
2°
-5°
1°
-5°
LEVEL
GROUND
Daily operation section
LEADER INCLINOMETER
BACKWARD DISPLAY ON
THE SLOPE
INCLINATION
0° -5°
1° -5°
2° -5°
3° -5°
4° -5°
5° -5°
