JUNTTAN
5.6

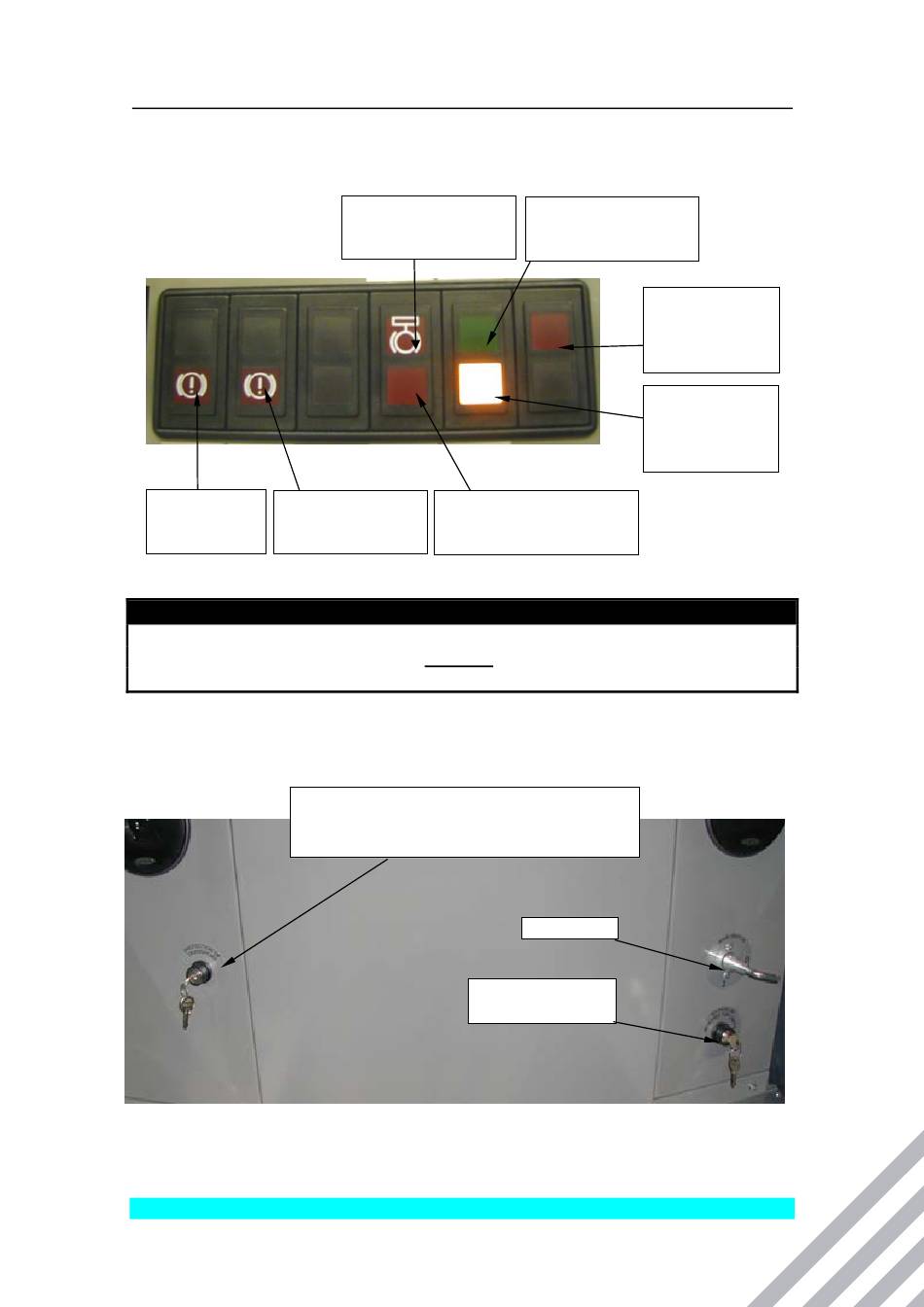

SIGNAL LIGHTS IN THE UPPER CONSOLE
Signal light: ON
Signal light: ON
when pile winch
when hammer winch
brake is open
brake is open
n WARNING
If one or all signal lights are on and function(s) is in neutral position, then there is
something wrong in the system. You must not continue operating the machine until
you find reason for signal and repair it.
5.7
CONTROLS ON THE REAR CONSOLE
Transport switch:
Only travel lever and leader lift device
controls are activated when the key is locked
56
when
Signal light: ON
uppercarriage swing
lock is used
Signal light: ON when the
by-pass switch of the
winches top limits is used
By-pass switch for
winches top limits
Controls section
when
Signal light: ON
the forward inclination
cylinder is released
Signal light: ON
when the piling
mode switch is in
position 1 or 2
Signal light: ON
when the leader
is against the
leader lift device.
Main switch
