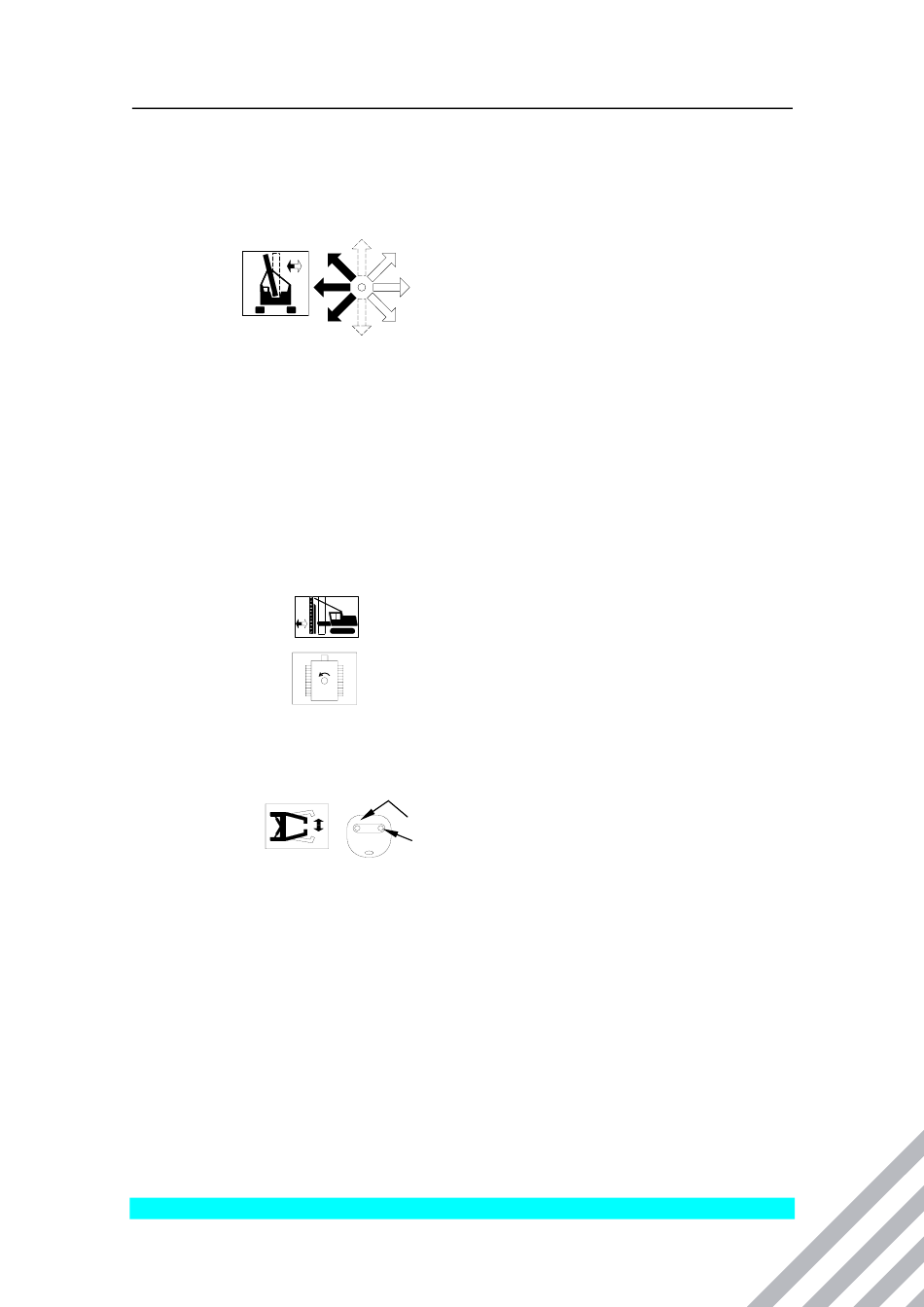

CONTROLS ON THE LEFT CONSOLE

LATERAL INCLINATION LEVER
Diagonally
forward
Diagonally
backward
Forward
Backward
SWING LEVER
Forward
Backward
Left
Right
Diagonal
Top switch
54
The leader is inclined (raked) to
the respective side (cylinder is pushed out)
The leader is inclined (raked) to
the opposite side (cylinder is pulled in)
The leader is inclined (raked) forward
(both cylinders are pushed out)
The leader is inclined (raked) backward
(both cylinders are pulled in)
Horizontal slide out
Horizontal slide in
Swings machinery deck to the left
Swings machinery deck to the right
Combinations
Pile arms open
Pile arms close
