SWITCHES
1
2
3
Switch 1: Winches/forward inclination cylinder release when using leader lift
device, see sections lifting/lowering leader how to use the switch.
Switch 2: Forward inclination cylinder release when using leader lift device, see
sections lifting/lowering leader how to use the switch.
Switch 3: Leader lift device, pre-selection switch.
Switch 4: Leader lift device up.
Switch 5: Leader lift device down.
lift button

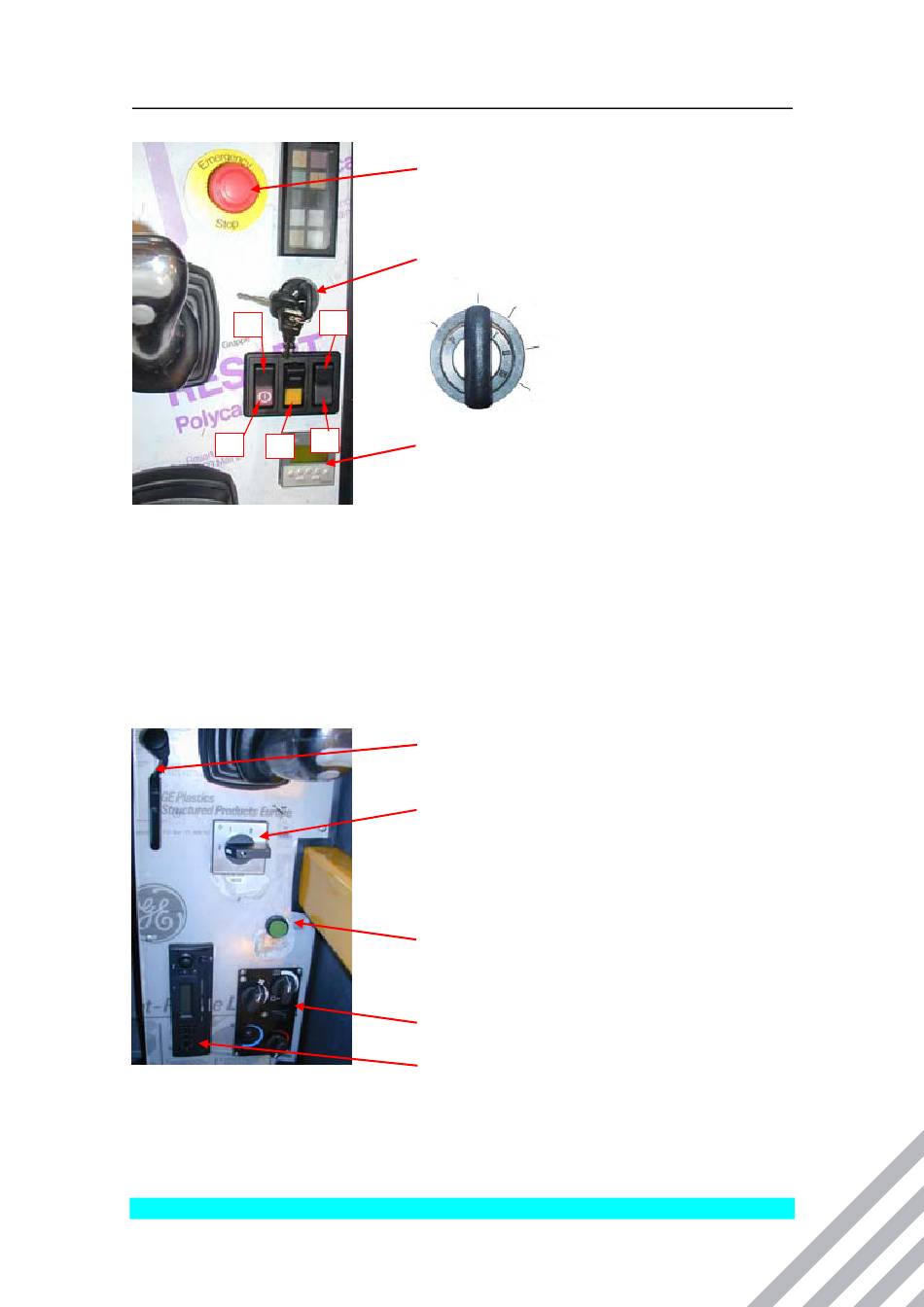

Emergency stop
Ignition switch
0
P
4
5
Blow counter
Throttle lever
Piling mode switch
0 hammer hydraulics not connected
1 hydraulics connected for manual operation
2 hydraulics connected for continuous mode
Ram block single lift Lift of the ram block,
piling start switch/releasing of pile winch in
vibrator mode
Heater
Radio
Controls section
Engine emergency stop
Key operated
I
P = not connected
0 = engine stop/key remove
II
I = current on
II = not connected
III
III = engine start
Engine rpm control
