5.3

CONTROLS ON THE RIGHT CONSOLE

The black arrows in the symbols and beside the control indicate the same direction of
the functions. The central rest position is neutral for all levers. The controls on the right
console are illustrated Figure 10.
All the control levers have eight active positions in the shape of a star. The positions
forward - backward - left - right engage only one function while the diagonal positions
engage two functions if two functions are assigned to a lever. There are also push
buttons at the top of the lever.

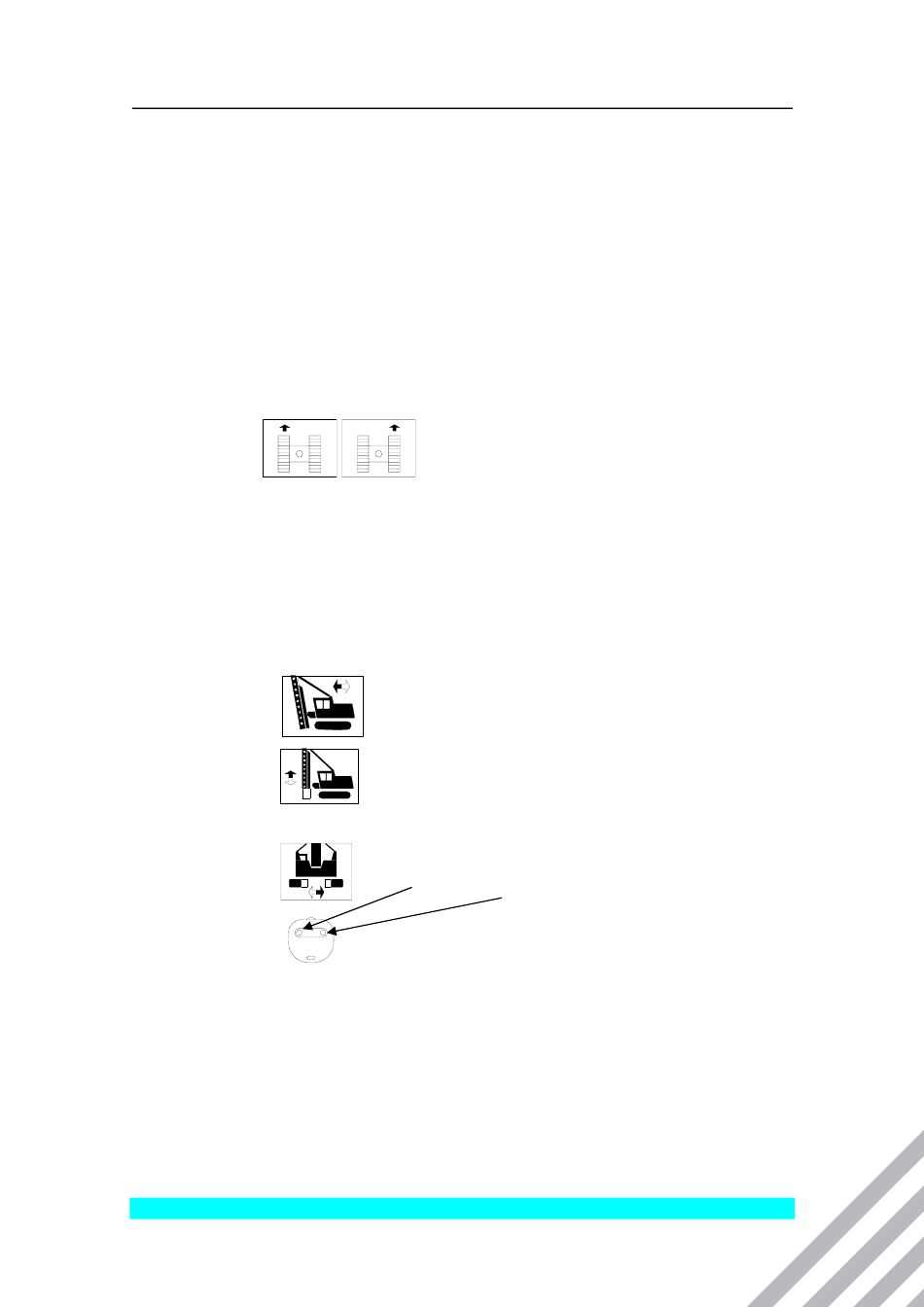

TRAVEL LEVER
Forward
Backward
Diagonal
The functions described here refer to the normal travel position when the drive motors
are at the rear of the machine.
FORWARD INCLINATION AND LEADER FOOT LEVER
Forward
Backward
Left
Right
Diagonal
Top switch
Both tracks forward
Both tracks backward
Combinations
Leader is inclined forward
Leader is inclined backward
Leader foot up
Leader foot down
Combinations
Track extension hydraulic cylinders
in/neutral/out
Controls section
