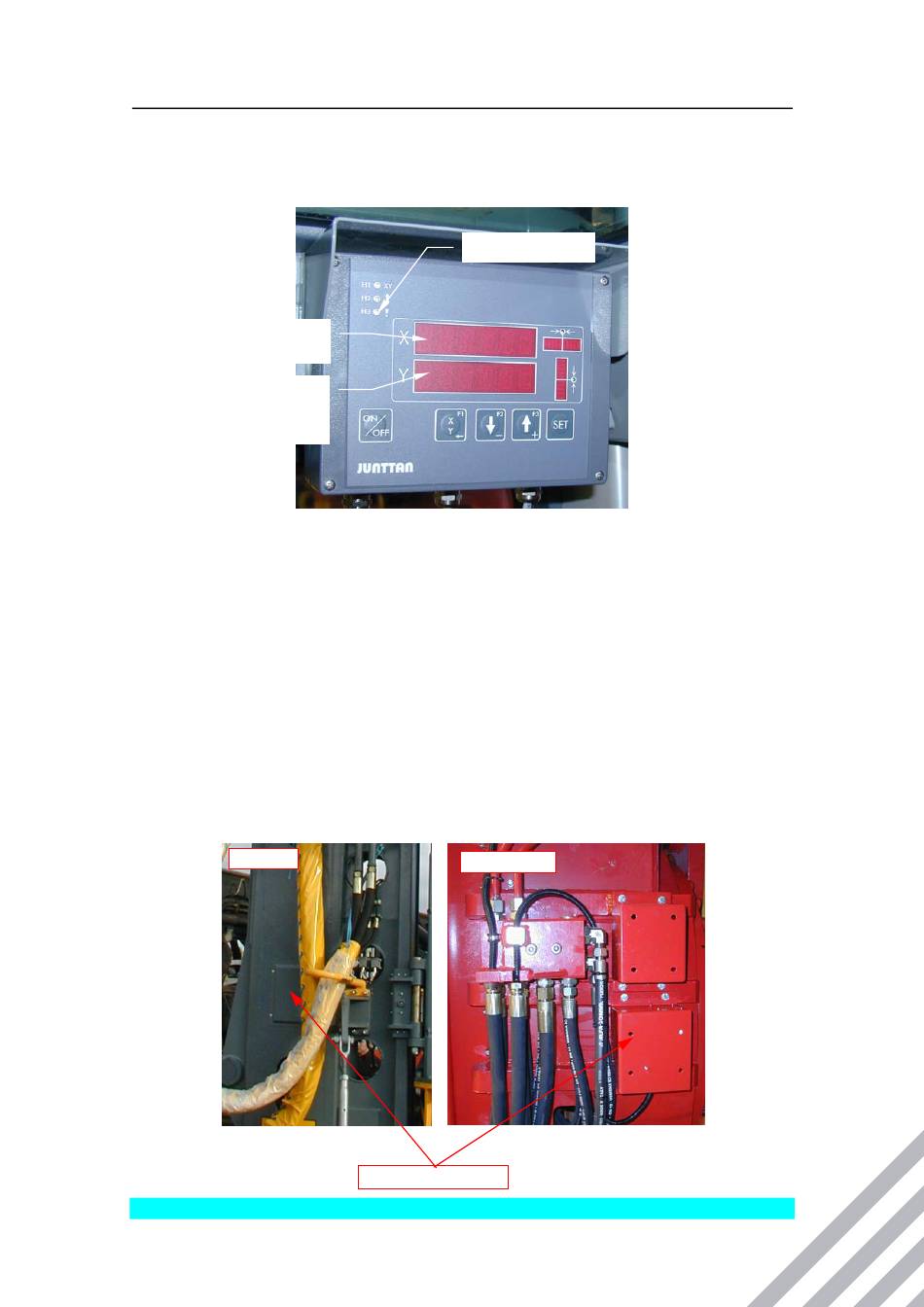

3.16 INCLINOMETER

See also inclinometer manufacturers operation and installation manual.
Sideward
inclination
Forward and
backward
inclination

3.16.1 CALIBRATION OF THE INCLINOMETER

1. Check first that the sensor box of the inclinometer is tight on the leader.
2. Sensor box is assembled either inside or outside of the leader.
3. Drive the leader to vertical position. Use the spirit level to check that the leader
is in vertical position.
4. If the inclinometer display shows Zero when the leader is in vertical
position it is not necessary to calibrate inclinometer.
5. If the inclinometer display do not shows Zero calibrate inclinometer.
6. Switch OFF the display of the inclinometer.
7. Press simultaneously F1+F2+SET about 4 s to move to setting mode.
8. Press F2 until on the display is shown inclination display (XZ, YZ).
9. Press SET until display shows Zero.
10. Press ON/OFF
INSIDE
Safety angle, 30º
OUTSIDE
SENSOR BOX
