3.14 LIFTING LOADS WITH PILE WINCH

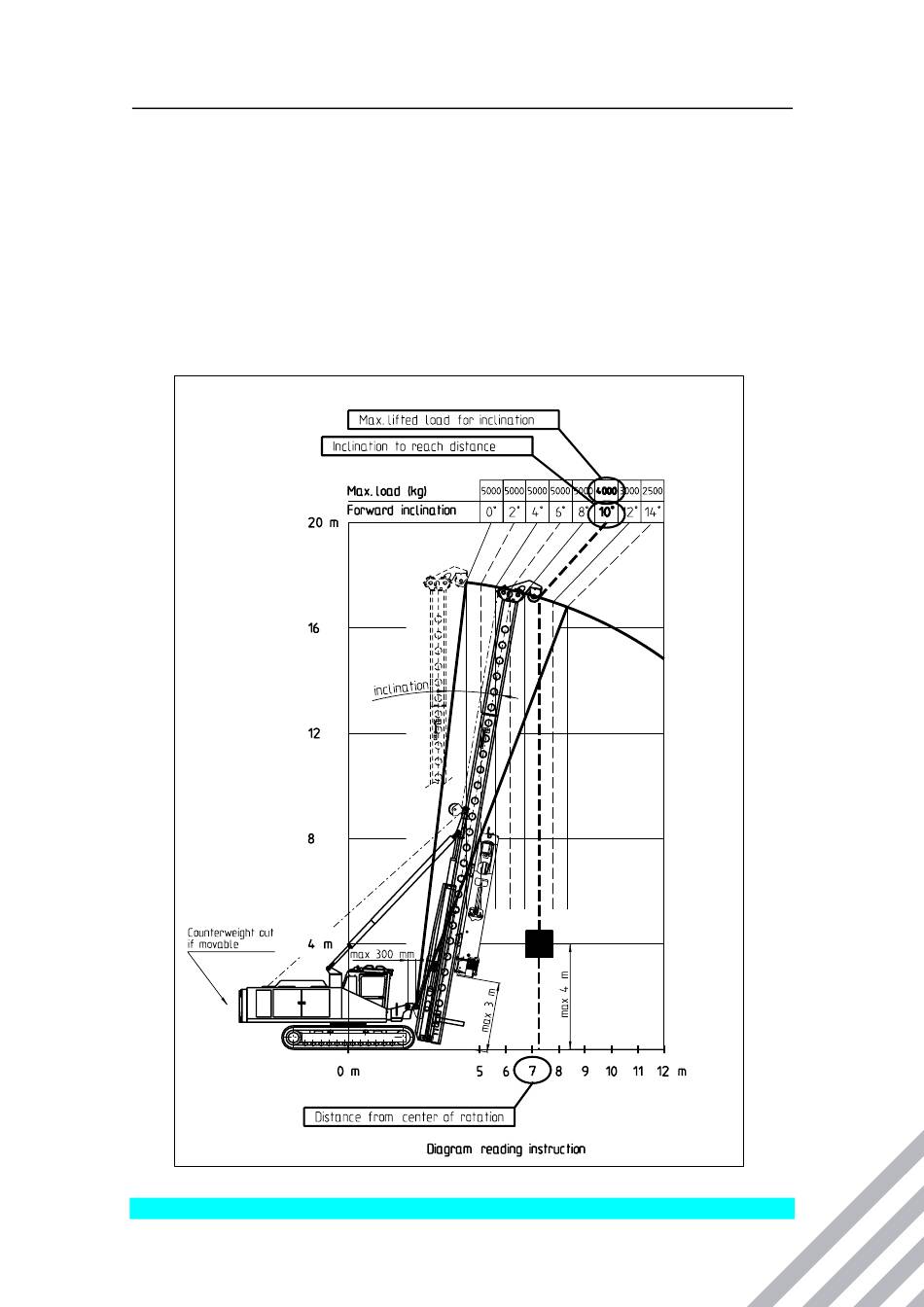

DIAGRAM READING INSTRUCTIONS
Diagram shows distance which can be reached for listed forward inclinations to lift
loads with the pile winch and what is maximum load weight for appropriate inclination.
For example, as shown in diagram below, to lift a load which is placed 7 m far from the
center of the rotation, needed forward inclination is 10° and maximum weight of the
load is 4 000 kg.
