7.13.3 CHANGING ROPE TO WINCH DRUM (BB-WINCH)

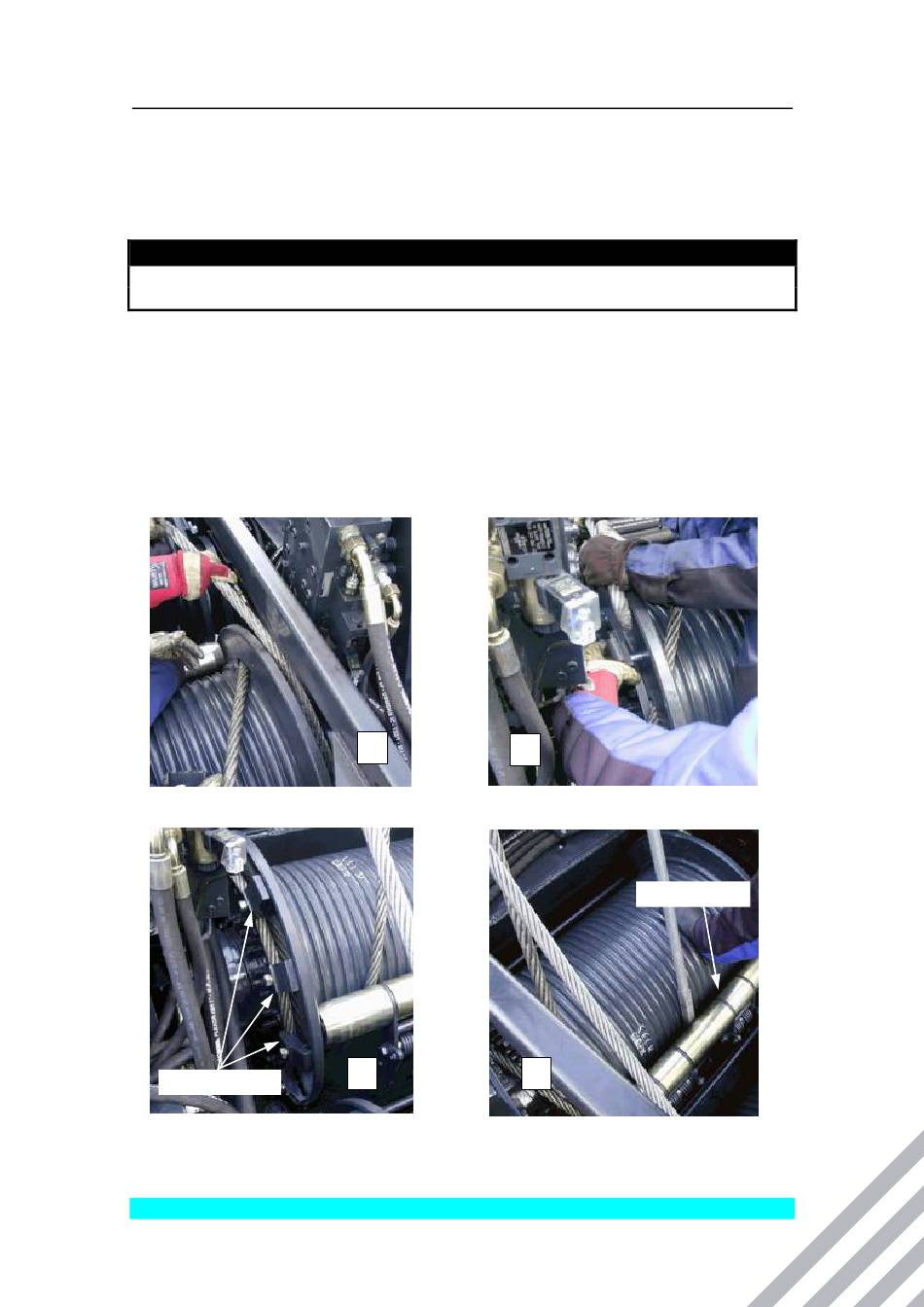

See pictures 1 – 4.
1. The steel rope is pulled through the opening in the winch drum flange and it is
bended to the shackle outside the drum flange.
n WARNING!
During the bending sudden straightening of rope may cause serious personal
damage.
2. The head of the rope is attached to the drum flange with locking piece and bolt. The
torque is 183 Nm (bolt size M16, strengthclass 8.8, with
3. When the first locking piece is set, the rope shackle is fastened with other locking
pieces around the flange. The number of locking pieces depends on the size of drum.
4. Before winding up the rope on drum, make sure that it is in the outermost groove.
When needed, loosen the rope presser with appropriate tool (e.g. with bar). When
you wind up the rope on winch drum make sure, that the rope gets tight enough on
the drum.
Locking pieces
130
1
2
3 4
Routine service section
Nord-Lock - washer).
Rope presser
