Gigabyte H610M S2H DDR4 User Manual page 24

U
_ _
_

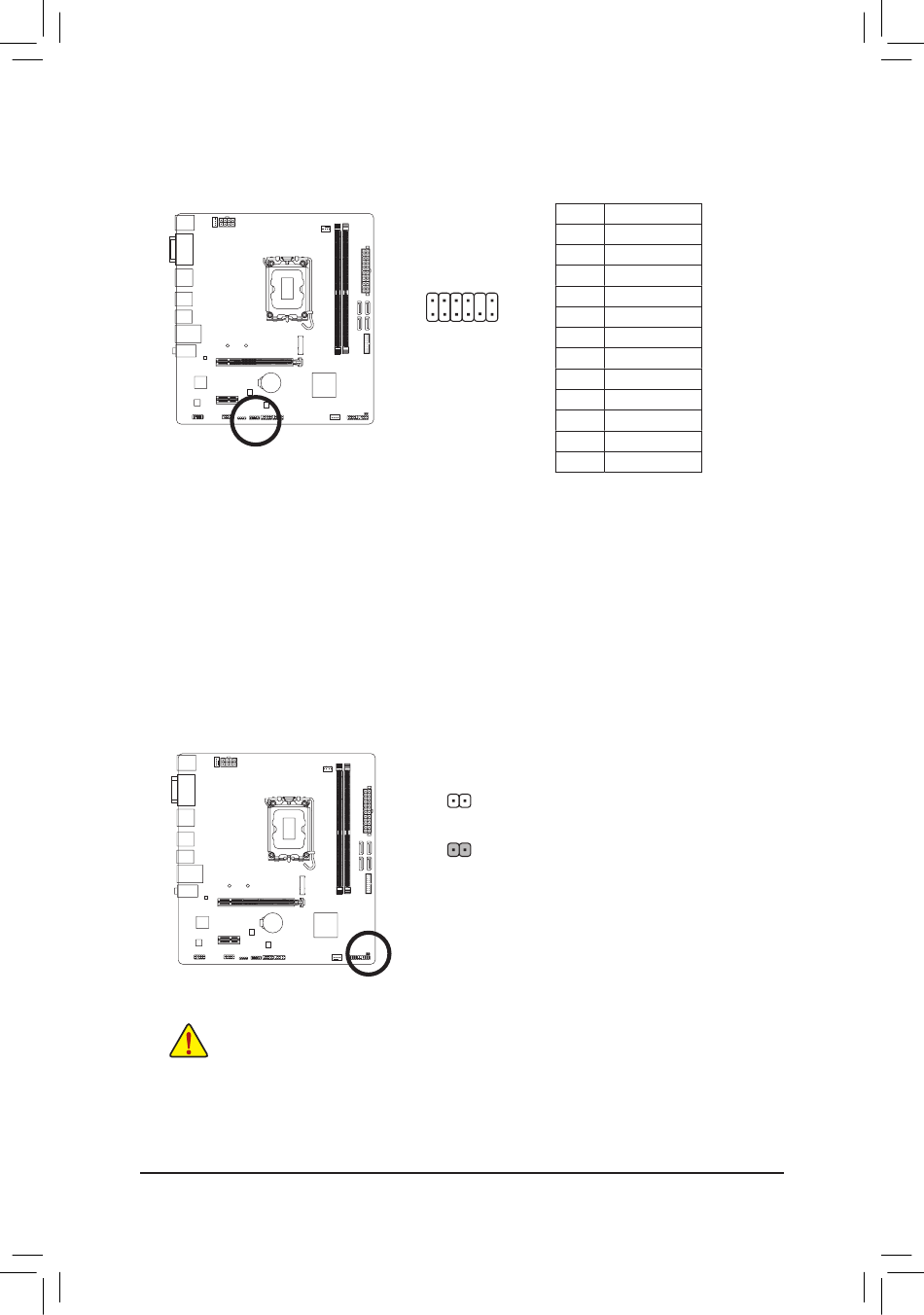

13) SPI_TPM (Trusted Platform Module Header)
You may connect an SPI TPM (Trusted Platform Module) to this header.
_
14) CLR_CMOS (Clear CMOS Jumper)
Use this jumper to clear the BIOS configuration and reset the CMOS values to factory defaults. To clear
the CMOS values, use a metal object like a screwdriver to touch the two pins for a few seconds.
F_USB3
B_
3
F_USB3 F
_
_ _B
_
S F_
B_
S S_F
B
_
F_USB30 3
• Always turn off your computer and unplug the power cord from the power outlet before clearing
the CMOS values.
• After system restart, go to BIOS Setup to load factory defaults (select Load Optimized Defaults) or
manually configure the BIOS settings (please navigate to the "BIOS Setup" page of GIGABYTE's
website for more information).
_ U
_
B
S _
11 1
12 2
Open: Normal
Short: Clear CMOS Values
- 24 -
_ 0
Pin No. Definition
1
Data Output
_ F
2
Power (3.3V)
3
No Pin
4
NC
5
Data Input
6
CLK
7
Chip Select
_ 0
8
GND
9
IRQ
10
NC
11
NC
12
RST
