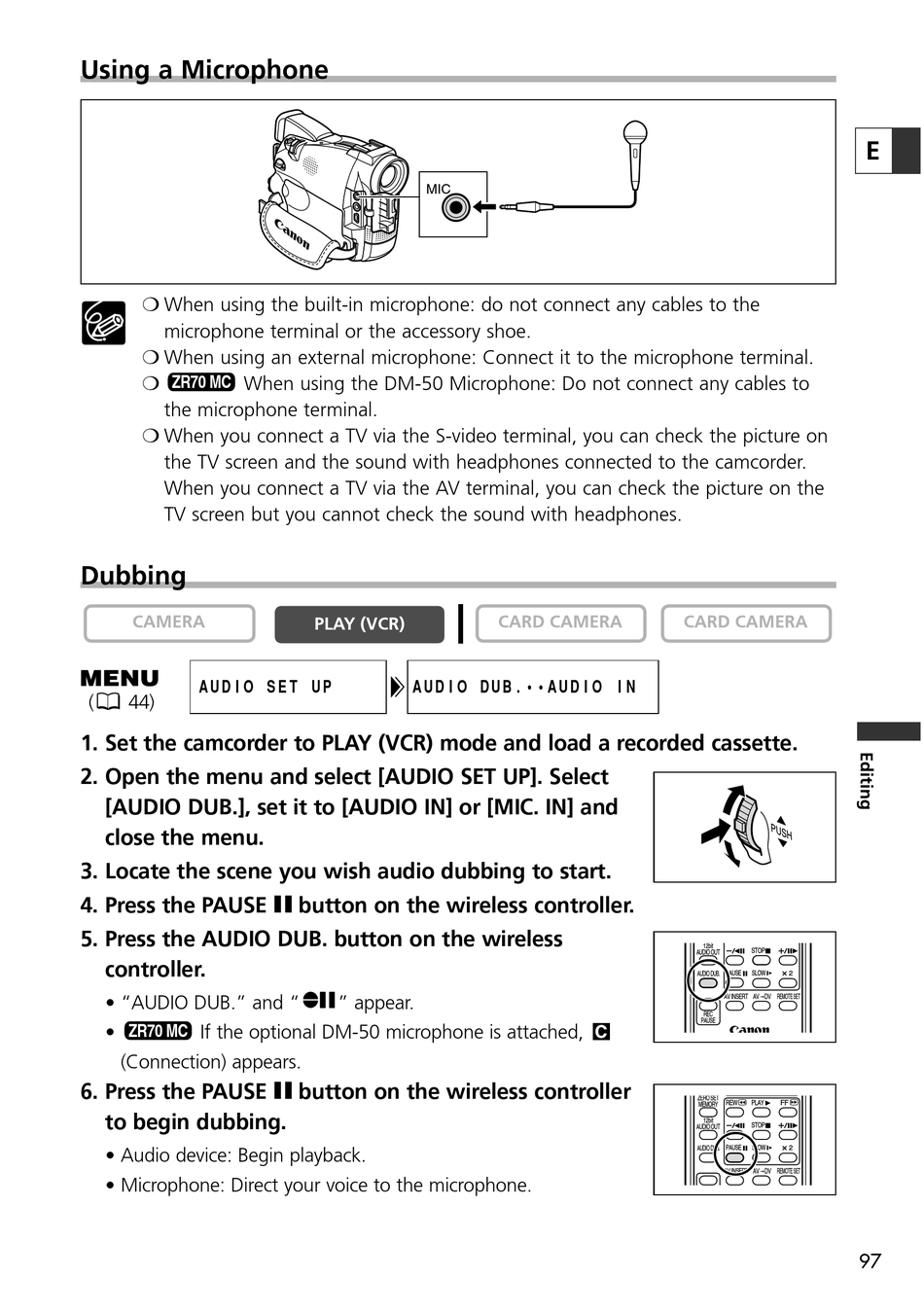

Using a Microphone

❍ When using the built-in microphone: do not connect any cables to the
microphone terminal or the accessory shoe.
❍ When using an external microphone: Connect it to the microphone terminal.
❍
ZR70 MC When using the DM-50 Microphone: Do not connect any cables to
the microphone terminal.
❍ When you connect a TV via the S-video terminal, you can check the picture on
the TV screen and the sound with headphones connected to the camcorder.
When you connect a TV via the AV terminal, you can check the picture on the
TV screen but you cannot check the sound with headphones.
Dubbing
CAMERA
AUDIO SET UP
( 44)
1. Set the camcorder to PLAY (VCR) mode and load a recorded cassette.
2. Open the menu and select [AUDIO SET UP]. Select
[AUDIO DUB.], set it to [AUDIO IN] or [MIC. IN] and
close the menu.
3. Locate the scene you wish audio dubbing to start.
4. Press the PAUSE a button on the wireless controller.
5. Press the AUDIO DUB. button on the wireless
controller.
• "AUDIO DUB." and "
• ZR70 MC If the optional DM-50 microphone is attached,
(Connection) appears.
6. Press the PAUSE a button on the wireless controller
to begin dubbing.
• Audio device: Begin playback.
• Microphone: Direct your voice to the microphone.
MIC
PLAY (VCR)
AUDIO DUB.••AUDIO IN
" appear.
CARD CAMERA CARD CAMERA
12bit
STOP
AUDIO OUT
PAUSE SLOW 2
AUDIO DUB.
AV INSERT AV DV REMOTE SET
REC
PAUSE
ZERO SET
REW PLAY FF
MEMORY
12bit
STOP
AUDIO OUT
PAUSE SLOW 2
AUDIO DUB.
AV INSERT AV DV REMOTE SET
E
