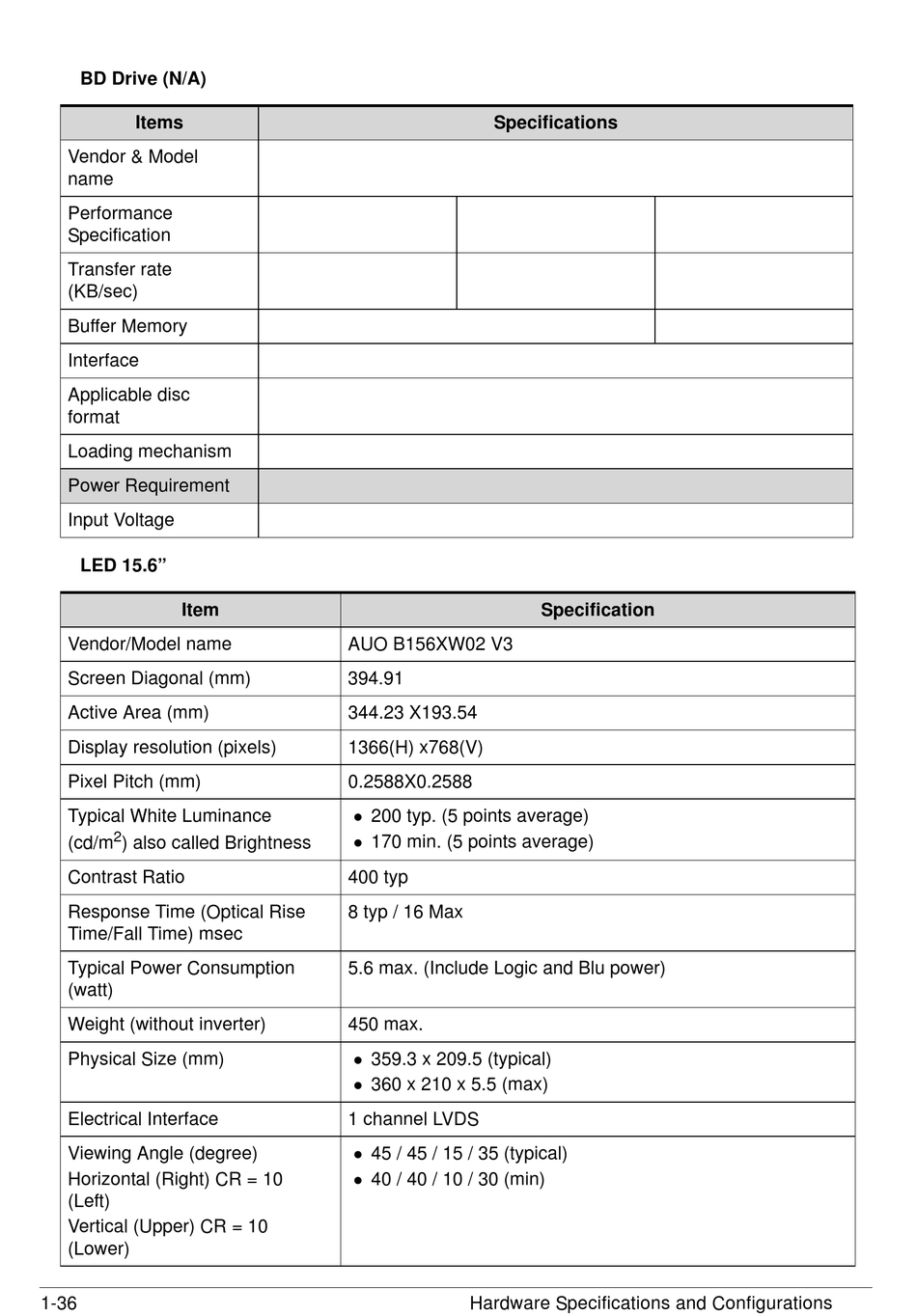

Led 15.6 - Acer TravelMate 5760 Service Manual

BD Drive (N/A)
Items
Vendor & Model
name
Performance
Specification
Transfer rate
(KB/sec)
Buffer Memory
Interface
Applicable disc
format
Loading mechanism
Power Requirement
Input Voltage

LED 15.6"

Item
Vendor/Model name
Screen Diagonal (mm)
Active Area (mm)
Display resolution (pixels)
Pixel Pitch (mm)
Typical White Luminance
2
(cd/m ) also called Brightness
Contrast Ratio
Response Time (Optical Rise
Time/Fall Time) msec
Typical Power Consumption
(watt)
Weight (without inverter)
Physical Size (mm)
Electrical Interface
Viewing Angle (degree)
Horizontal (Right) CR = 10
(Left)
Vertical (Upper) CR = 10
(Lower)
1-36
Specifications
AUO B156XW02 V3
394.91
344.23 X193.54
1366(H) x768(V)
0.2588X0.2588
200 typ. (5 points average)

170 min. (5 points average)

400 typ
8 typ / 16 Max
5.6 max. (Include Logic and Blu power)
450 max.
359.3 x 209.5 (typical)

360 x 210 x 5.5 (max)

1 channel LVDS
45 / 45 / 15 / 35 (typical)

40 / 40 / 10 / 30 (min)

