Panasonic TC-P55VT60 Technical Troubleshooting Manual page 72

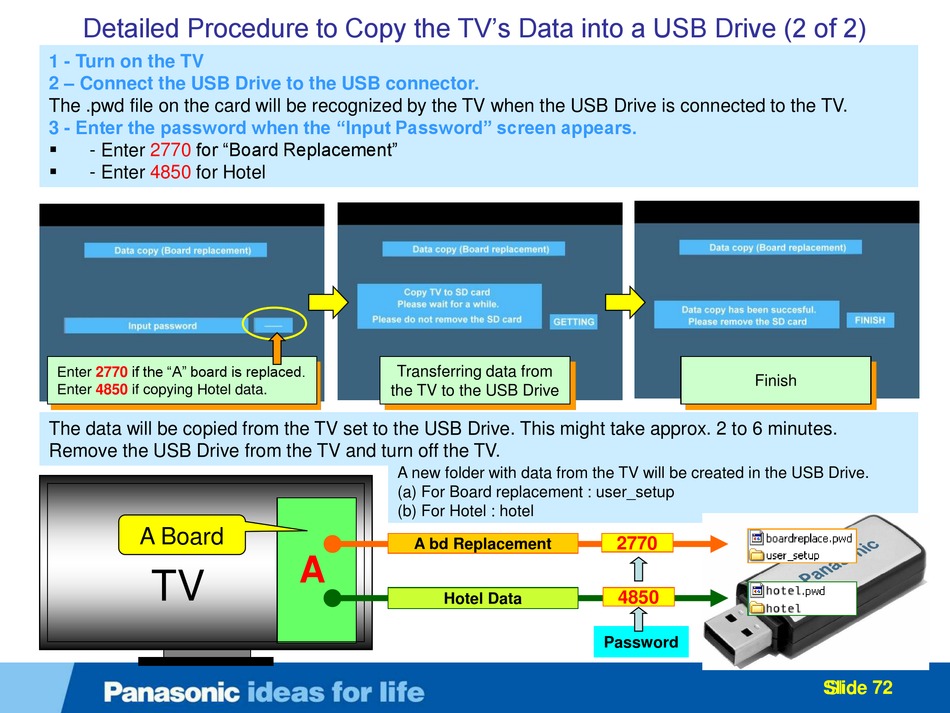

Detailed Procedure to Copy the TV's Data into a USB Drive (2 of 2)
1 - Turn on the TV
2 – Connect the USB Drive to the USB connector.
The .pwd file on the card will be recognized by the TV when the USB Drive is connected to the TV.
3 - Enter the password when the ―Input Password‖ screen appears.
 for "Board Replacement"
- Enter 2770

- Enter 4850 for Hotel
if the "A" board is replaced.
Enter 2770
Enter 4850 if copying Hotel data.
The data will be copied from the TV set to the USB Drive. This might take approx. 2 to 6 minutes.
Remove the USB Drive from the TV and turn off the TV.
A Board
TV
Transferring data from
the TV to the USB Drive
A new folder with data from the TV will be created in the USB Drive.
(a) For Board replacement : user_setup
(b) For Hotel : hotel
A bd Replacement
A
Hotel Data
Finish
2770
4850
Password
Slide 72 Slide 72
