The power supply used on the
TC-P60VT60 is not the same
as the one used on the TC-
P65VT60, TC-P60ZT60, and
TC-P65ZT60.
TC-P60VT60:
The Vsus out of P2 to the Scan
(SC) board is the same as the
Vsus output from P11 to the
Sustain (SS) board.
TC-P65VT60, TC-P60ZT60,
and TC-P65ZT60.
2 different Vsus circuits are
used.
One is used by the SC and the
other is used by the SS boards.
Also this power supply has 2
boards;
•
P-Sub (Line filter)
•
P-Main (Main power
Supply)

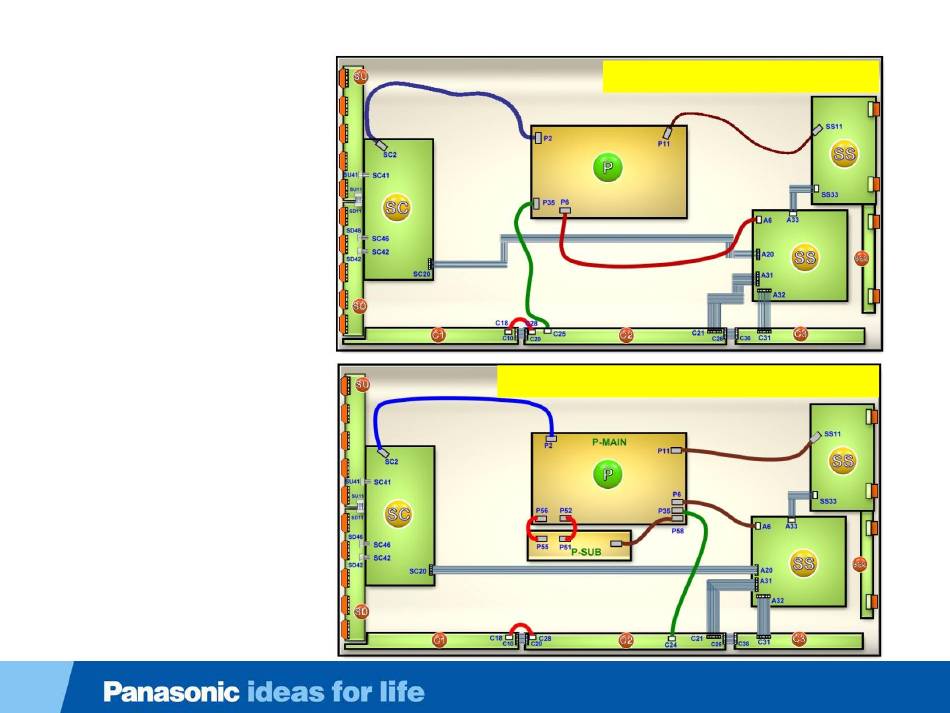

Power Supply Comparison
TC-P55VT60 - TC-P60VT60
TC-P65VT60 -TC-P60ZT60 - TC-P65ZT60
