Hélicoptères Guimbal
CABRI G2

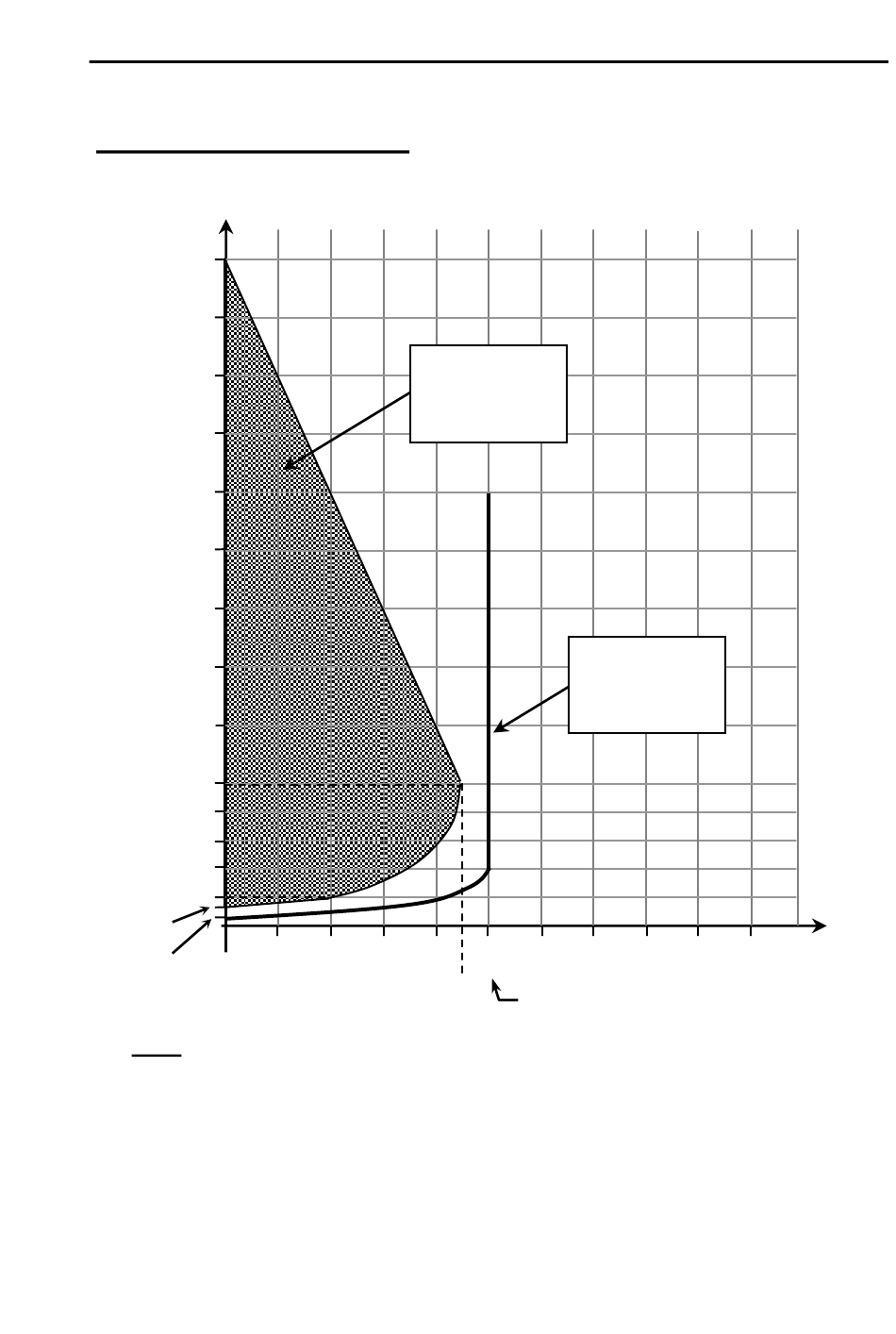

Height-Velocity diagram

Height AGL, feet
500
400
300
200
100
50
10
8
2
10 20 30
Note : With a view to simplicity, the same domain was demonstrated
regardless of altitude and temperature. It means that some margin
exist at lower altitudes, temperatures and weights.
During take-off, the pilot should pay attention to avoid this zone. In addition,
he should limit the rate of climb to a maximum of 500 feet / min below
100 feet AGL, in order to limit the loss of rotor speed in case of power
failure (see procedure page 3-3).
Original issue
Avoid
operation in
this area
40 50 60 70 80 90
Vy
45
EASA Approved
SECTION 5
PERFORMANCE
Associated
take-off
profile
100 IAS, kt
5-3
