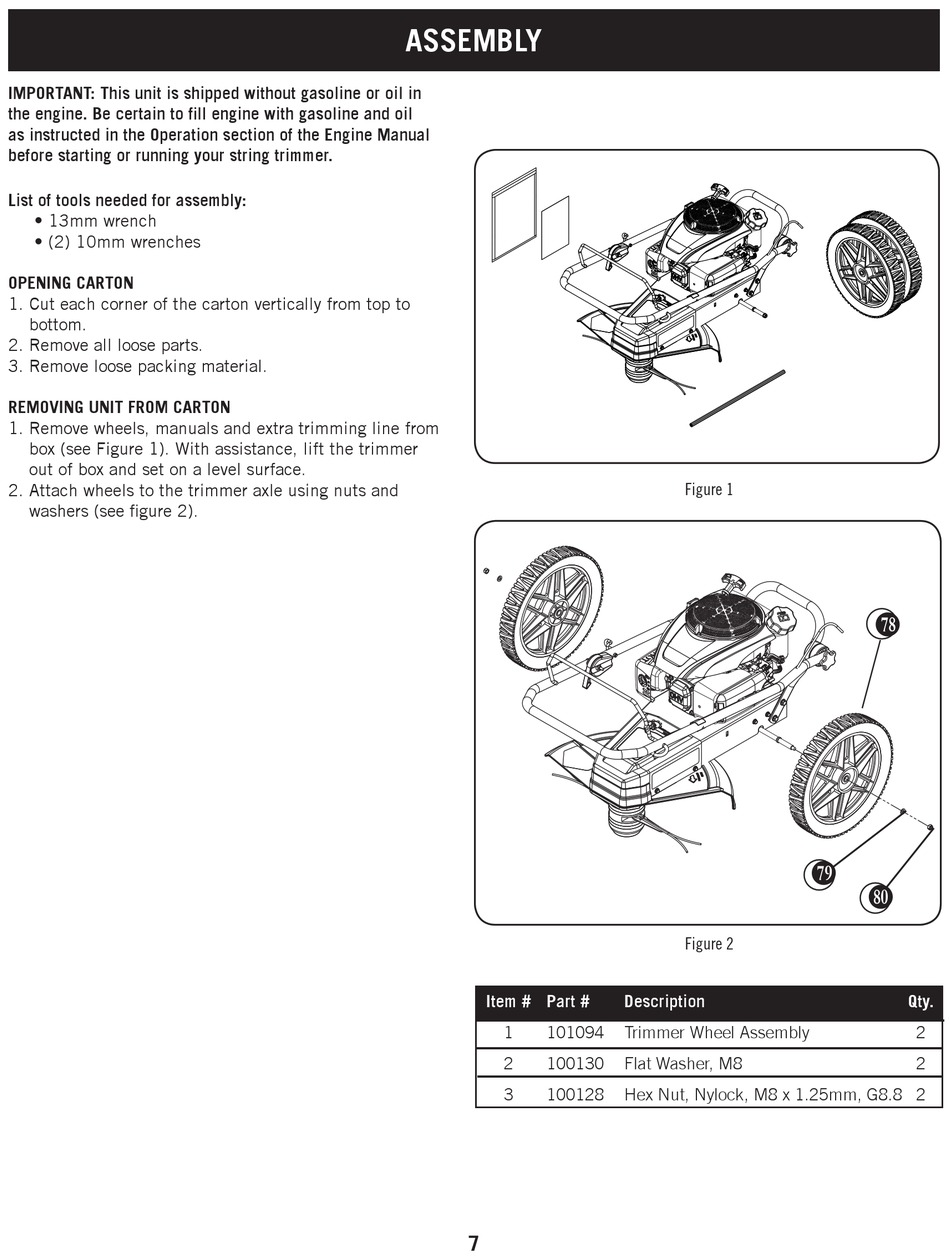

Assembly; Removing Unit From Carton - Craftsman CMXGCAQ108493 Operator's Manual

IMPORTANT: This unit is shipped without gasoline or oil in
the engine. Be certain to fill engine with gasoline and oil
as instructed in the Operation section of the Engine Manual
before starting or running your string trimmer.
List of tools needed for assembly:
• 13mm wrench
• (2) 10mm wrenches
OPENING CARTON
1. Cut each corner of the carton vertically from top to
bottom.
2. Remove all loose parts.
3. Remove loose packing material.

REMOVING UNIT FROM CARTON

1. Remove wheels, manuals and extra trimming line from
box (see Figure 1). With assistance, lift the trimmer
out of box and set on a level surface.
2. Attach wheels to the trimmer axle using nuts and
washers (see figure 2).

ASSEMBLY

Item # Part #
1 101094
2 100130
3 100128
7
Figure 1
Figure 2
Description
Trimmer Wheel Assembly
Flat Washer, M8
Hex Nut, Nylock, M8 x 1.25mm, G8.8 2
1
2
3
Qty.
2
2
