Harris Stratex Eclipse 4.6 User Manual page 91

Figure 2-13.
E1/DS1
trib options
Nx VLAN1
10/100Base-T
ports

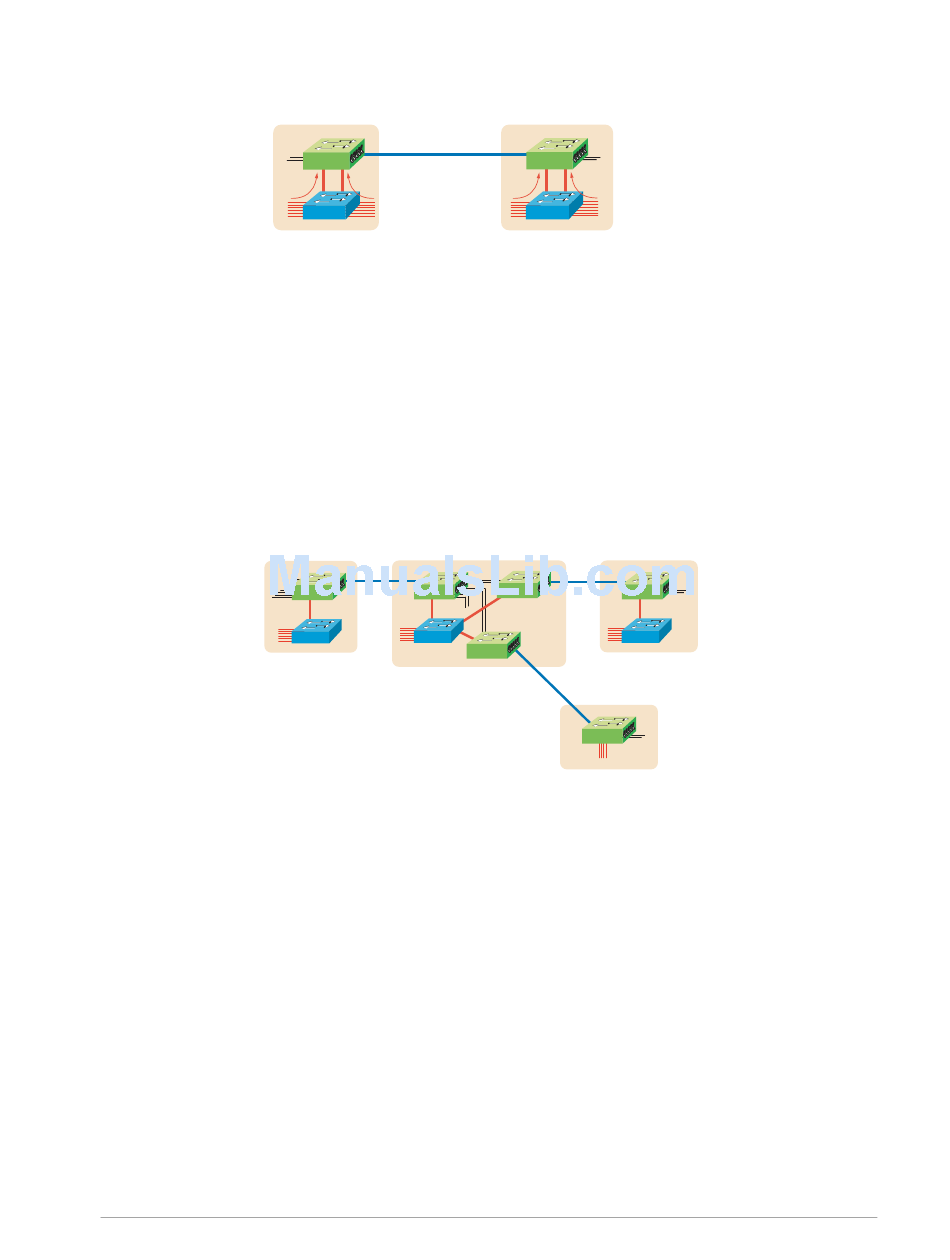

Where IDU ES links are to be networked, they must be physically interconnected at
intermediate sites. Figure 2-14 shows a typical small network with back-to-back IDU
ES installations at site B.
• External layer 2 multi-port switches are used where more than four host devices are
locally connected on the LAN: sites A, B and C.
• Site D shows no external switch. For a small office where no more than four host
devices are connected, the IDU ES provides a complete solution.
• Interconnecting trib circuits are cabled as for standard back-to-back E1/DS1 links.
• NMS visibility between all IDU ES terminals requires linking of the Ethernet NMS
ports at each site. As the IDU ES has a single Ethernet NMS port, where three or
more are grouped at a site, as at Site B, a simple external hub or switch must be used
to provide the required porting capacity.
Figure 2-14.
A
E1/DS1 trib
options
Nx LAN
10/100Base-T
ports
Ring Applications
IDU ES is a 1+0 platform; it does not offer hot-standby or diversity options. However,
IDU ES links can be installed in a ring network to support alternate-path protection of
Ethernet traffic using external RSTP switches.
• Using one channel, as illustrated in Figure 2-15, ring capacities to 98/100 Mbps are
supported.
• Using both channels, C1 and C2, two concentric rings are supported, each up to 98/
100 Mbps.
• Where concentric rings are used, link aggregation may be used in the external switch
to provide a single LAN interface.
• For NMS visibility around ring, IDU ES terminals are interconnected at each site via
their Ethernet NMS ports. Dynamic routing (OSPF or RIP) is required.
• E1/DS1 circuits can also be configured on each link as pt-to-pt connections (not ring
protected).
260-668066-001 Rev 024 February 2009
IDU ES Link with External Switch: Both Channels
IDU ES
C1 & C2
P2
P1
Nx VLAN2 Nx VLAN1
10/100Base-T 10/100Base-T
L2
ports ports
Switch
Network-connected IDU ES Links
B
IDU ES C1 C1 IDU ES
P1 P1
P1
L2 L2
Switch
Switch
IDU ES
E1/DS1
IDU ES
C1 & C2
trib options
P2
P1
Nx VLAN2
10/100Base-T
L2
ports
Switch
C
IDU ES
C1 C1
IDU ES
P1
P1
L2
Switch
C1
D
C1
IDU ES
P1 P4
Eclipse User Manual
Vol. II-2-25
